Rayleigh Instruments TAS240-EW easywire "Plug and Play" Three Phase Measuring Current Transformer - Patented Technology.

Features

This product is no longer available - see bottom of page for alternative

  • Ranges: 60 to 200A (330mV Secondary)
  • Cable aperture : 3 @ 15.5 x 30mm
  • Primary current : 60 to 200A
  • Accuracy Class 1
  • 25mm hole centres
  • Housing Material Self extinguishing Nylon IEC185 classification VO according to UL-94
  • Weight : 500g

Details

This system is safer than using traditional current transformers because Easywire transformers incorporate the resistive shunts usually located within the power meter. This means that the secondaries are always loaded, therefore eliminating the possibility of dangerously high voltages developing during open circuit conditions.

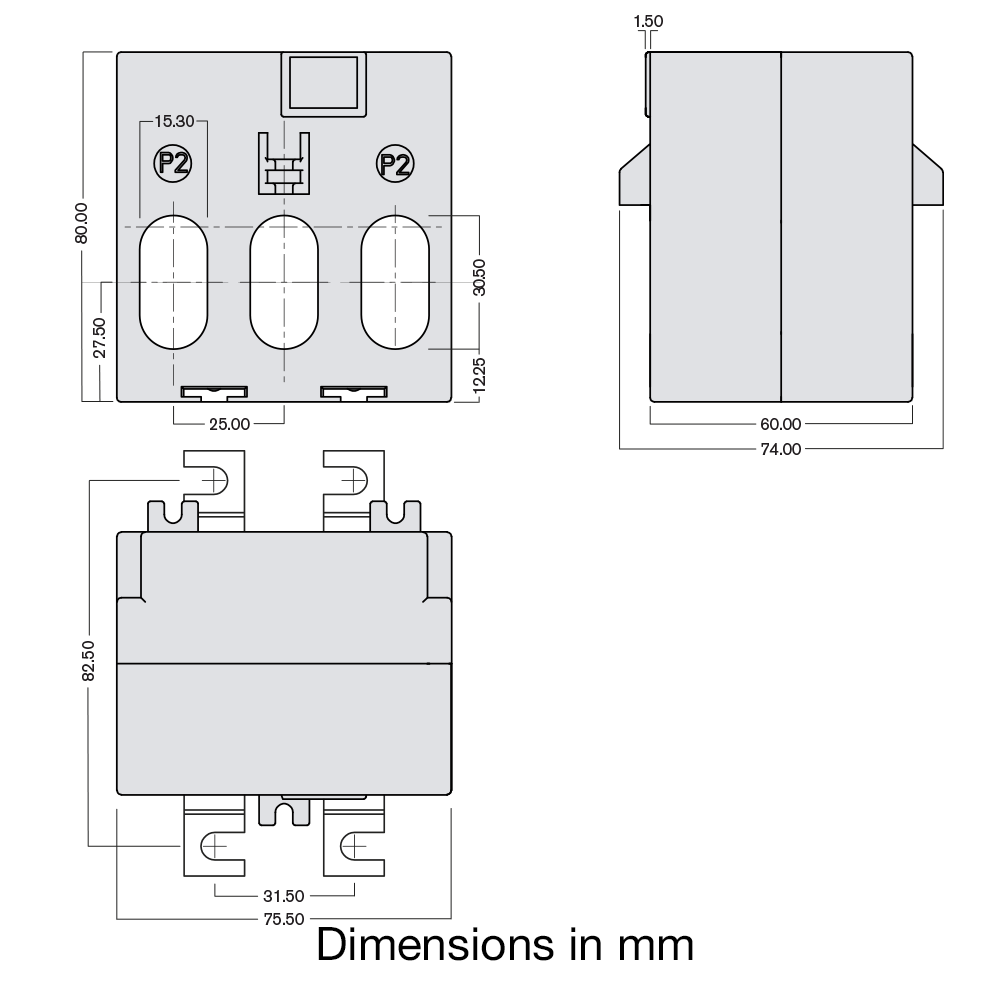

The TAS240-EW is a 75mm wide three phase measuring current transformer designed for use with the Easywire multifunction power meters. This current transformer has three 15.5 x 30mm holes and is available with primary currents from 60A to 160A.

Internal safety circuitry is provided which automatically limits the output voltage to a safe level, allowing the transformer secondary to be left open circuit under load.

Fixing

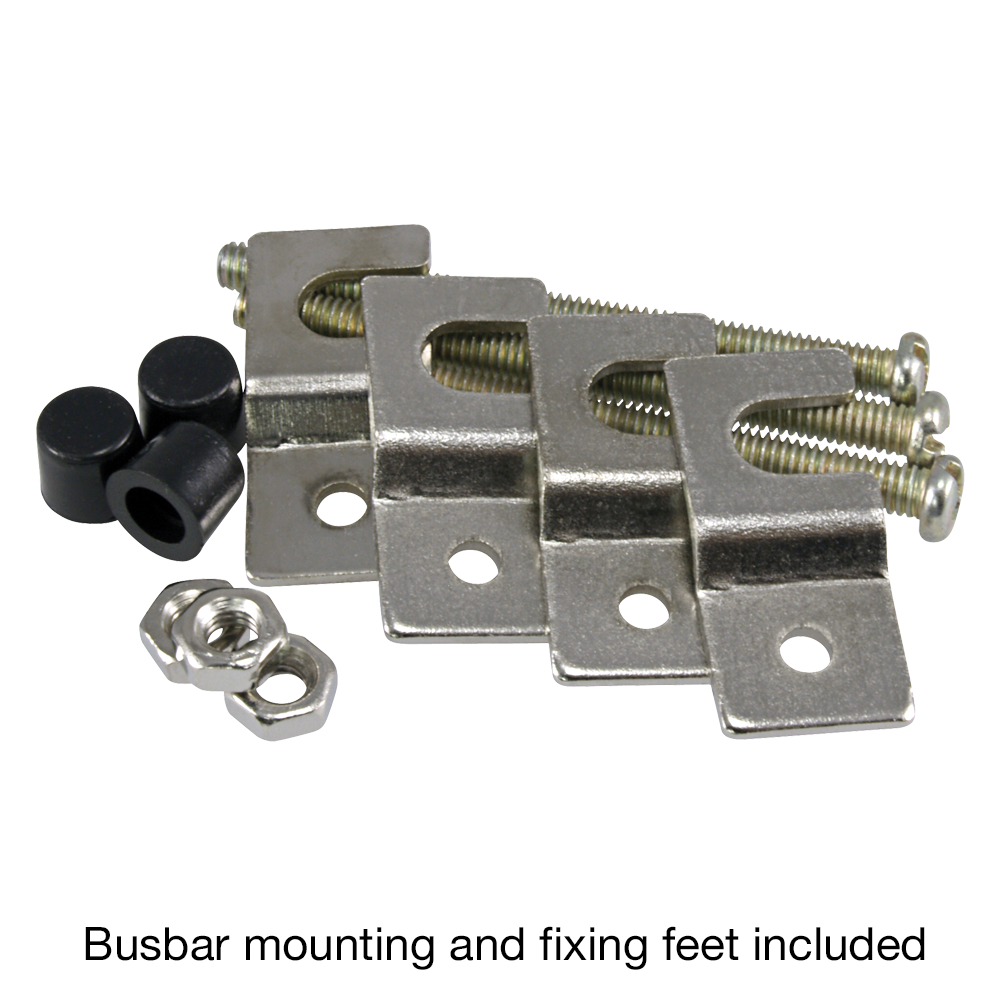

DIN rail mounting clip, Busbar mounting and fixing feet included.

Installation
The TAS240-EW uses the Easywire technology allowing much faster installation saving you time and money. Additionally, all our three phase phase current transformers have been designed with hole centres and apertures to fit most standard industrial circuit breakers.

Video

Product Name / Options Price (ex VAT)
TAS240-EW - easywire Three Phase Measuring CT - 60A/330MV Call for Prices

TAS240-EW - easywire Three Phase Measuring CT - 100A/330MV Call for Prices

TAS240-EW - easywire Three Phase Measuring CT - 125A/330MV Call for Prices

TAS240-EW - easywire Three Phase Measuring CT - 160A/330MV Call for Prices
