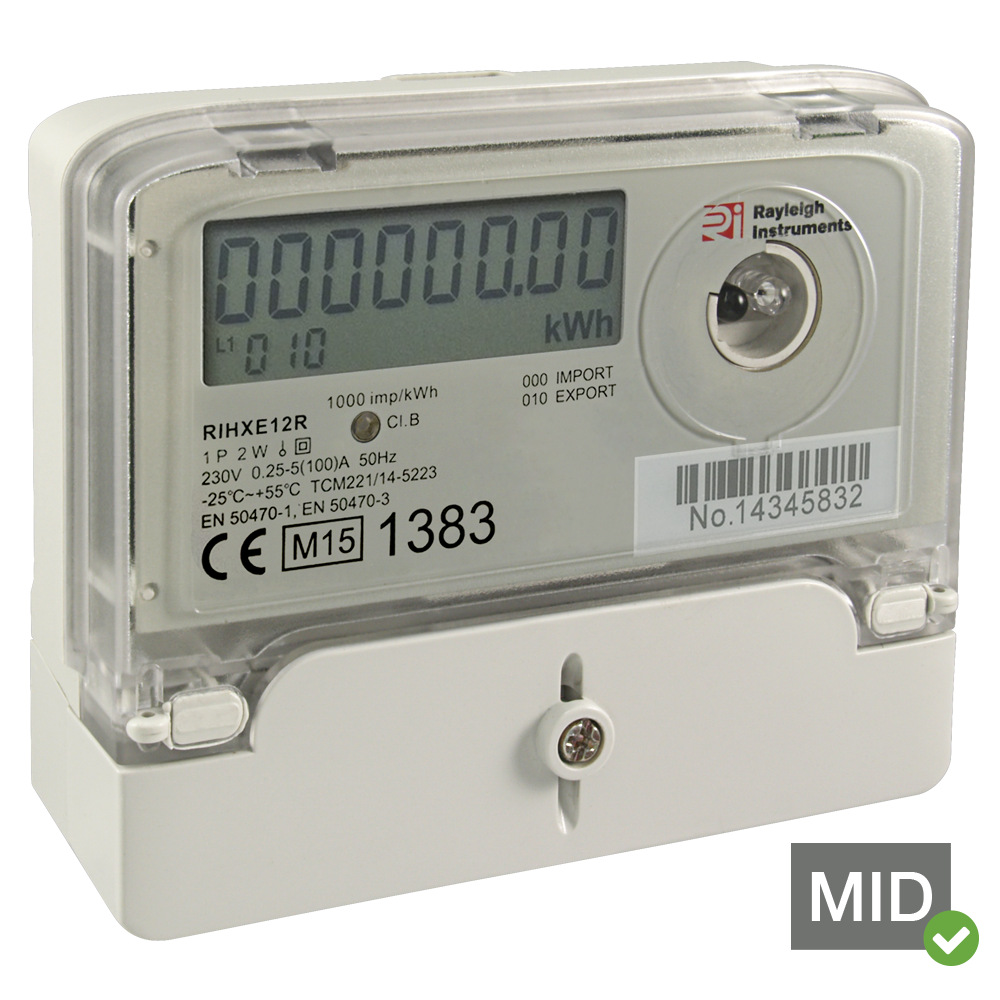

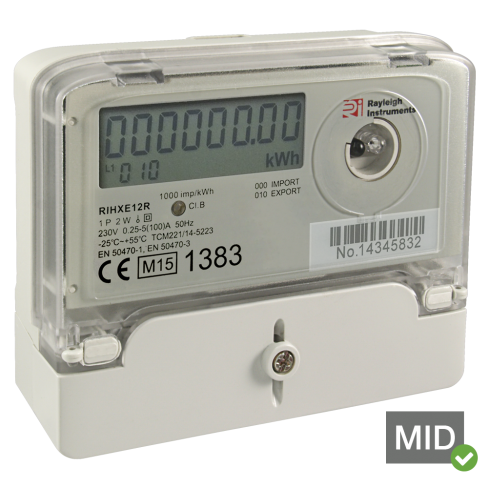

Rayleigh Instruments RIHXE12R MID Certified Single Phase 100A Solar Generation Meter With Pulse Output With Import and Export

Features

This product is no longer available

  • Supplied with a short terminal cover
  • Single Phase NetWork Two Wire
  • Current reverse indicator LCD
  • LCD Display 6+2 = 999999.99 KWh LCD
  • Red Static Light to show no current
  • Integrated Communication Protocols is pulse output 1000 Impulse / KWh
  • Conforms & Certified to MID B and D approval
  • 12 Months Warranty

Details

This product is no longer available

RIHXE12R is a compact MID Certified single phase two wire solar generation meter. The cost-efficient design and offers an excellent price-performance ratio.

RIHXE12R is a MID B&D certified energy meter that measures kWh’s on a single rate. The maximum input current is 100 Amps.
RIHXE12R has a Class Accuracy B according to the MID (Measuring Instruments Directive) approval. RIHXE12R provides measurement of active (kWh) energy in both import and export directions with registers shown on the large easy to read LCD display.
RIHXE12R is sealed for life by a liquid welding process and therefore does not carry an external wire seal. RIHXE12R is approved to EN 50470-1, EN50470-3.

The meter has two registers
000 is the Import Reading - which is what is being generated by the inverter.
010 is the Export Reading - which is what is coming back from the grid

The meter will autoscroll between the 2 readings every 15 seconds.

This model has been MID certified to the conform to B+D (ie type examination and quality assurance of the production process) of the MID approval process.

Trouble Shooting



This meter is designed with reverse energy detection functionality. Once the reverse energy is detected, the symbol above will be shown on LCD. The reverse energy indication will disappear once the reverse energy event is removed.
Note: The power threshold of reverse energy is 5% of Un*Ib. When reverse energy exists, and the current power exceeds the power threshold, then this event will be detected as reverse energy.
