  • IME TASM (formerly TAS80) Single Phase Current Transformer

More Views

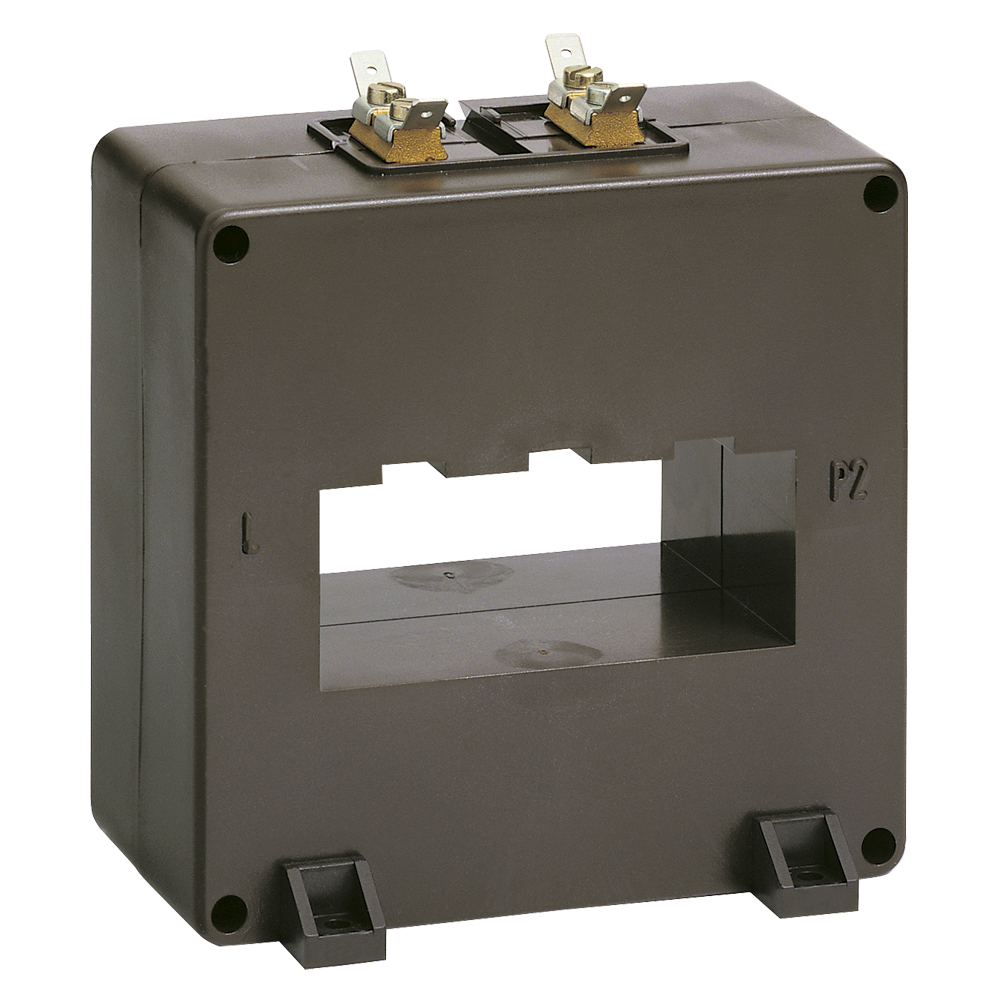

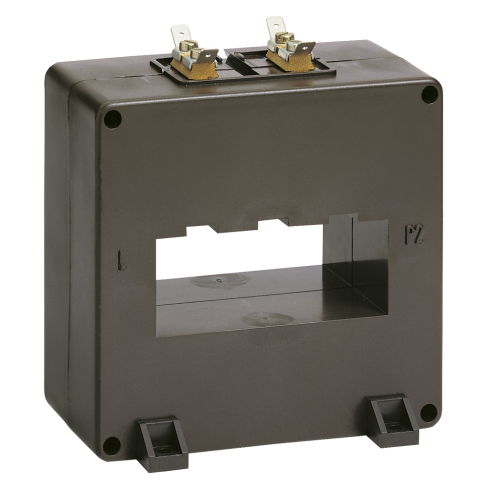

IME TASM (formerly TAS80) Single Phase Current Transformer

Features

  • Measuring and protection current transformer (formerly TAS80)
  • Ranges: 300 to 2500A (1A or 5A Secondary)

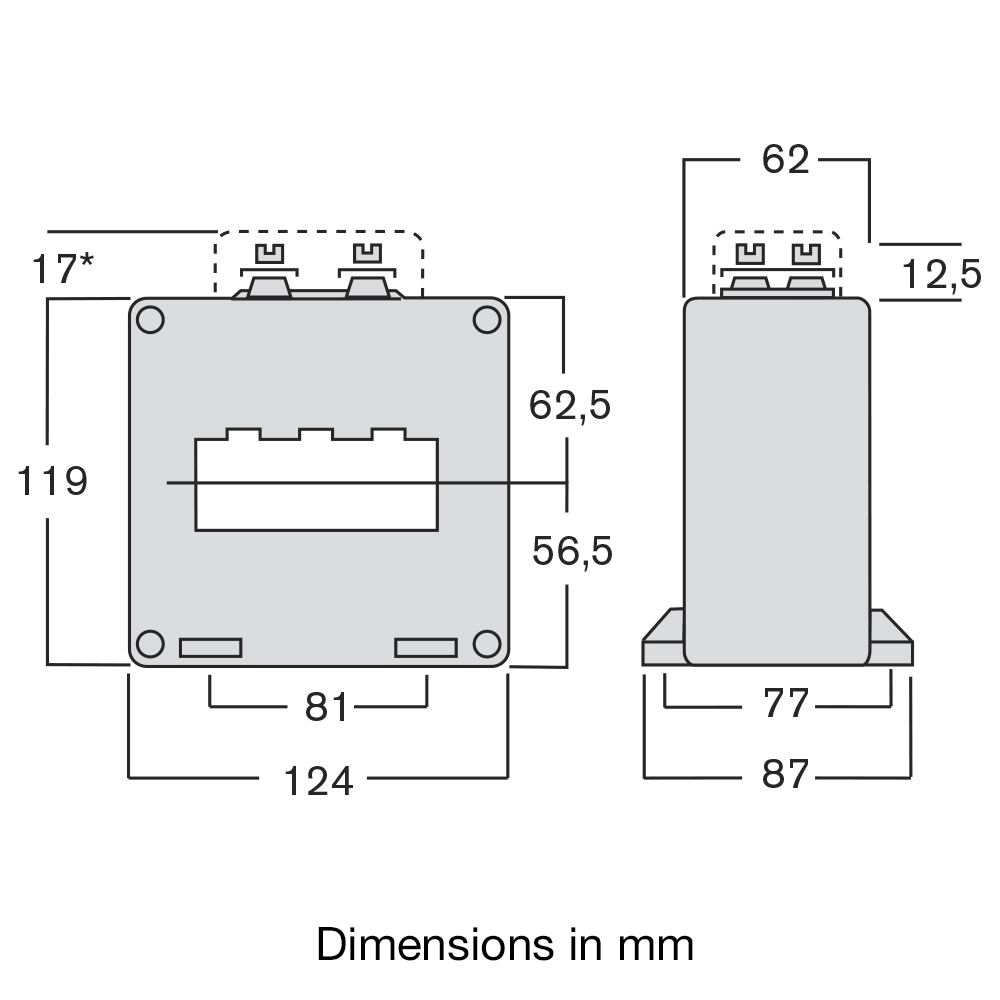

  • Busbar window 82 x 32mm
  • Secondary terminals M4 screws and 6.3 x 0.8mm fast-on
  • Optional terminal cover (ATACOP03)
  • Weight 1500g

Details

Measuring and protection current transformer supplied with busbar mounting bracket. The TASM transformer has an 82 x 32mm aperture and is available with primary currents from 300 to 2500A.

Additional Information

Manufacturer IME (BTicino)

Downloads

Files

TASM Data Sheet TASM Data Sheet NT571-04
Product Name / Options Price (ex VAT)
TASM50C400 (400/5A) Call for Prices
TASM50C600 (600/5A) Call for Prices
TASM50C800 (800/5A) Call for Prices
TASM50D100 (1000/5A) Call for Prices
TASM50D120 (1200/5A) Call for Prices
TASM50D150 (1500/5A) Call for Prices
TASM50D160 (1600/5A) Call for Prices
TASM50D160 (2000/5A) Call for Prices
TASM50D250 (2500/5A) Call for Prices
TASM10C400 (400/1A) Call for Prices
TASM10D200 (2000/1A) Call for Prices
