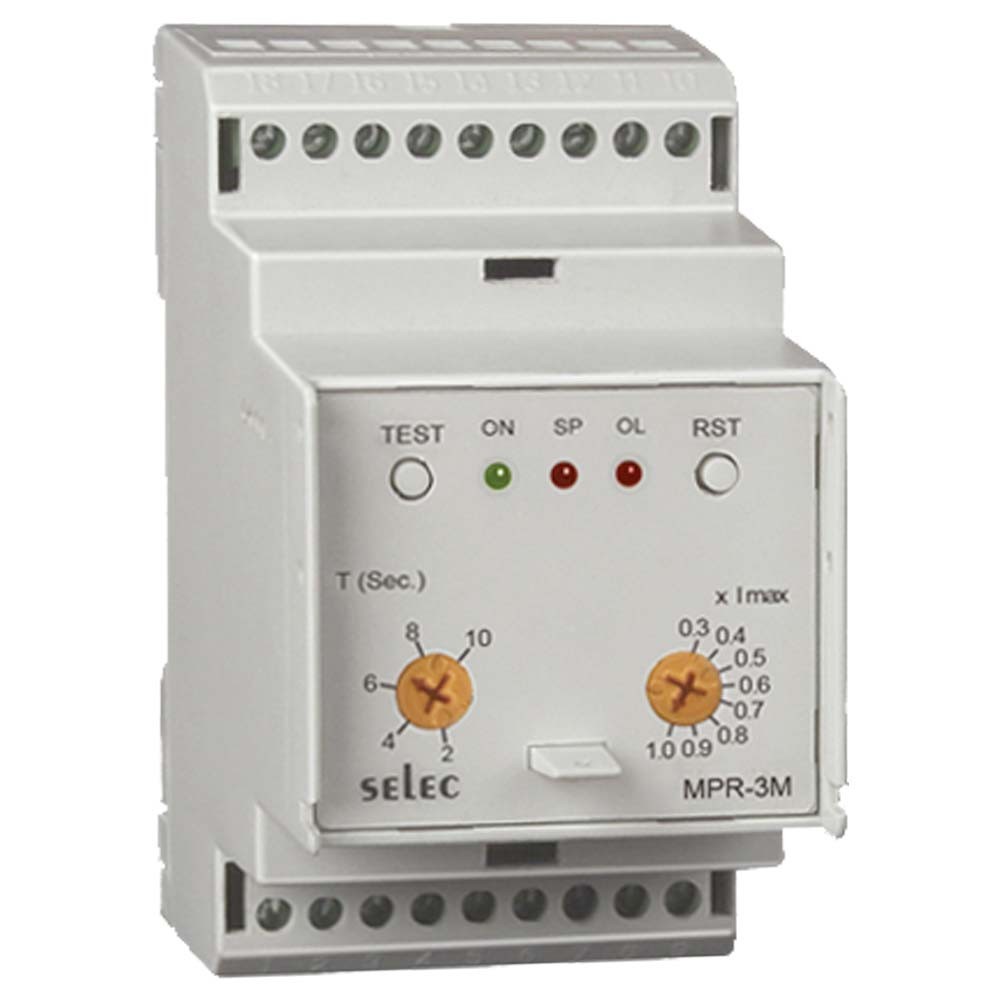

| Measuring Parameter |
Overload Current, Phase Asymmetry, Phase Failure & Phase Sequence, Under Current |
| Electrical Connection |
3Ø-3W |
| Display |
3 LED Indication |
| Trip Setting |
Phase Unbalance : 50% of Motor Current (Fixed), T(sec) Setting : To Select 2 Sec, 4 Sec, 6 Sec, 8 Sec,10 Sec Trip Time Curve in Overload Trip Curve Graph, Under Current : 50% of Motor Current, X Imax : To Select Motor Current Rating |
| Time Ranges |
Single Phase Trip : 5sec, Phase Unbalace : 5sec, Phase Sequence: 5sec, Overload Trip : As Per (IDMT Curve), Under Current Trip : 5 Sec |
| CT Setting |
10A, 40A, 80A |
| Accuracy |
Trip : ±5% of Set Value, Time : ±5% of Setting ±100ms
|
| Output Contact |
2 C/O (DPDT) |
| Output Rating |
NC : 5A @ 240V AC, NO : 5A @ 240V AC |
| Auxillary Supply |
230V AC ±15% |
| Size |
52.5mm |
| Mounting Type |
DIN Rail Mount |
