  • Rayleigh Instruments RI-Energyflow-Midi String Grid-Tied PV Inverters

More Views

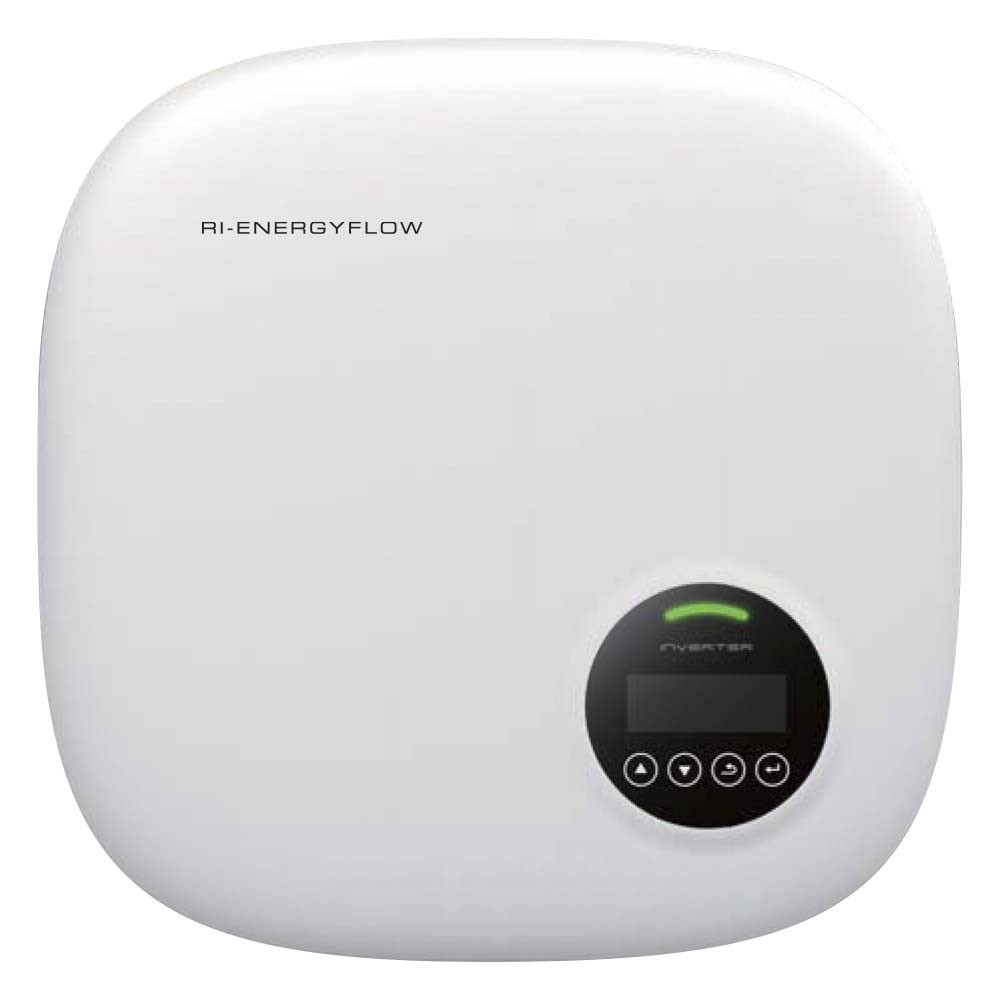

Rayleigh Instruments RI-Energyflow-Midi String Grid-Tied PV Inverters

Features

  • Available as 3.0kW, 3.6kW, 4.0kW, 4.6kW, 5.0kW and 6.0kW - Single Phase versions
  • Max. PV voltage up to 600V
  • DC power up to 1.35 ratio
  • High-efficiency operation - up to 97.8%
  • Dual MPPT
  • DC/AC surge protection
  • Reactive power controller
  • Natural cooling
  • Remote monitoring
  • Compact and lightweight and IP65 Rated
  • Easy installation
  • Optional Wi-Fi/GPRS plug
  • G98 and G99 compliant

Details

The RI-ENERGYFLOW-MIDI Series forms part of an expanding family of on-grid Solar PV inverters from Rayleigh Instruments.

These on-grid inverters are an ideal choice for residential projects with higher power density. Wider input voltage ranges and dual MPPT inputs offer more flexible installation and are a perfect match for high-power Solar PV panels.

Additional Information

Manufacturer Rayleigh Instruments

Downloads

Product Name / Options Price (ex VAT)
Call our Sales Team for Model Options and Prices - 01245 428500 Call for Prices
