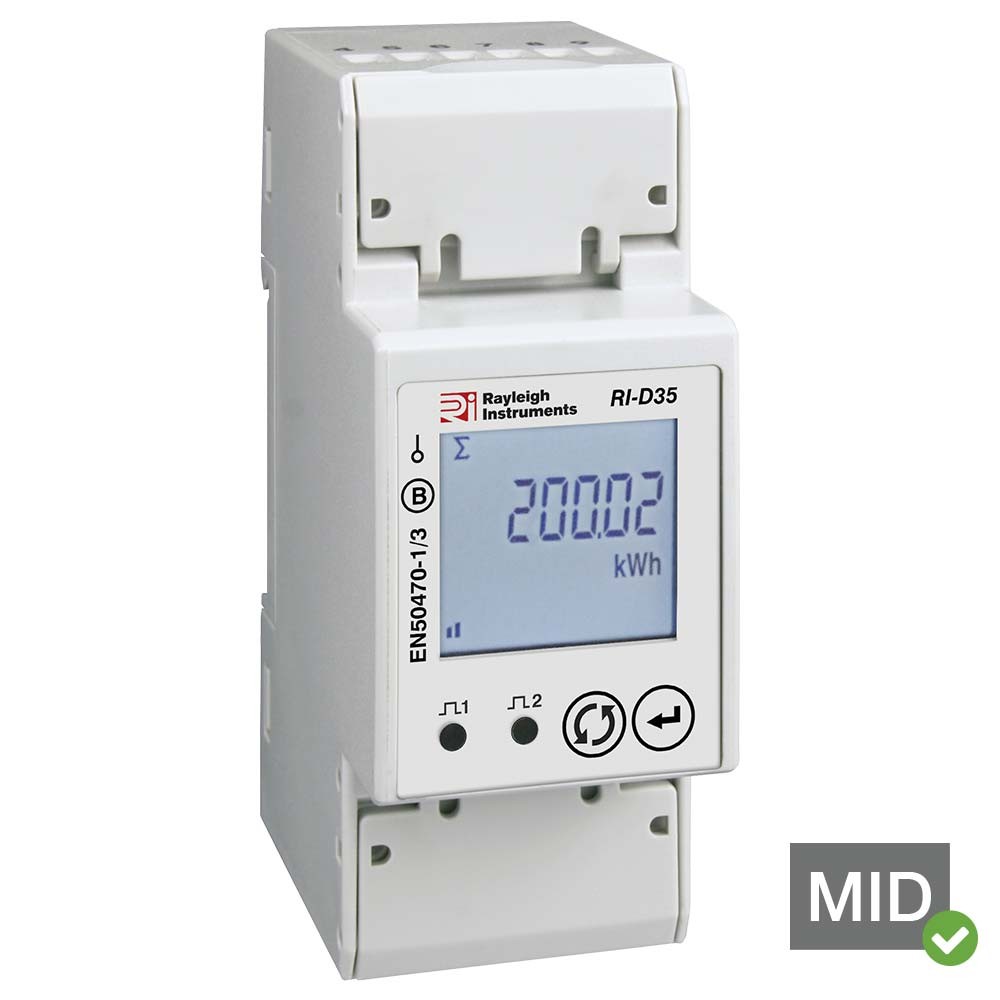

Rayleigh Instruments RI-D35-100 Single Phase Multifunction Energy Meter - MID Certified


  • 100A direct connected
  • High definition LCD display with white backlight
  • Import and export energy measurement
  • RS485 Modbus or Mbus models available
  • Two pulse outputs
  • Two module width DIN rail mounted
  • MID B+D Certified (SGS Cert. No. : 0120/SGS0361)
  • LED pulse indication
  • Simple programming and operation
  • Auto or manual page scrolling


The RI-D35-100 series is a range of single phase multifunction DIN rail MID approved energy meters. Suitable for monitoring energy consumption in residential, solar PV, industrial and utility applications.

All models are MID approved (B and D) and may be used for billing purposes.

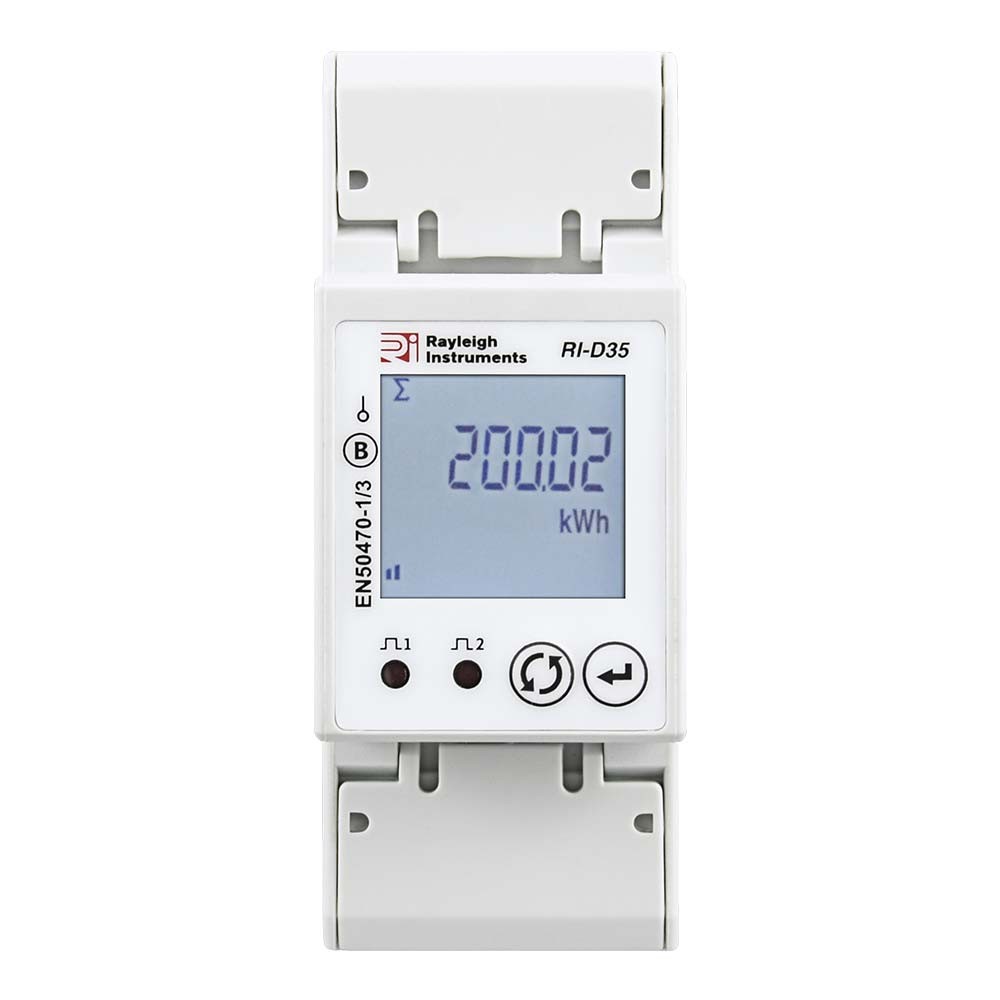

A high efficiency white backlit LCD display provides a clear indication of measured values in all light conditions.

The meter is available in two versions:-
  • Single tariff with two pulse outputs and RS485 Modbus communication
  • Single tariff with two pulse outputs and Mbus communication

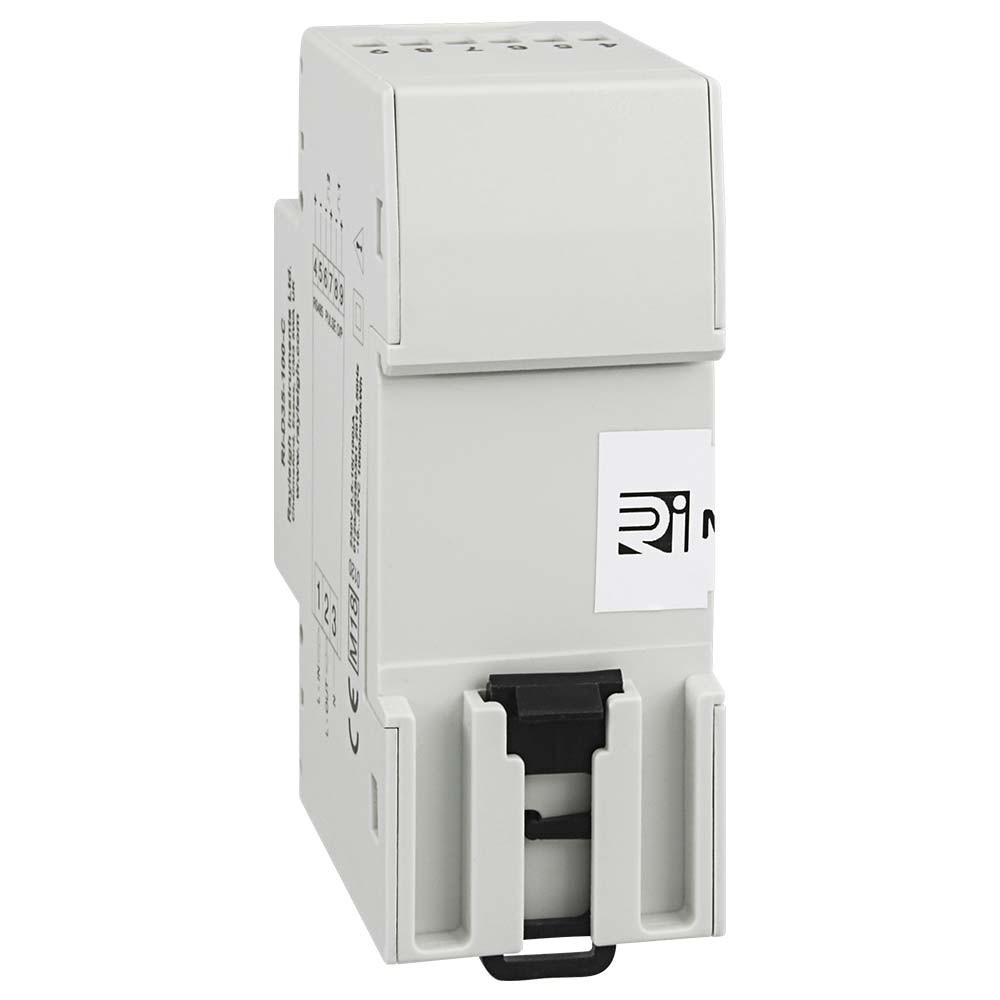

The unit is housed in a compact two module width case suitable for 35mm DIN rail mounting.

Displayed Parameters
  • Phase to Neutral Voltage (V)
  • Phase Current (A)
  • Frequency (Hz)
  • Power Factor (PF)
  • Power Max. Demand (MD kW)
  • Active Power (kW)
  • Reactive Power (kVAr)
  • Apparent Power (kVA)
  • Import Active Energy (kWh)
  • Export Active Energy (kWh)
  • Total Active Energy (kWh)
  • Import Reactive Energy (kVArh)
  • Export Reactive Energy (kVArh)
  • Total Reactive Energy (kVArh)

Additional Information

Manufacturer Rayleigh Instruments
