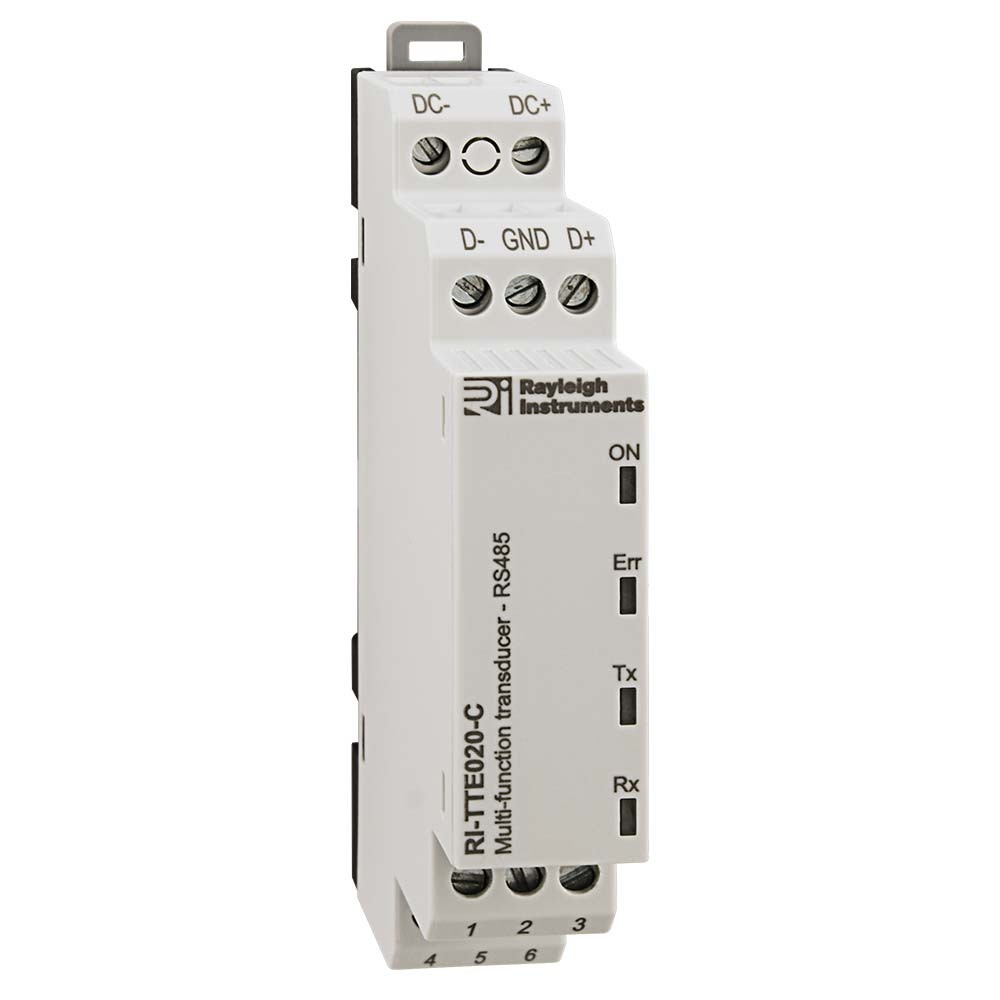

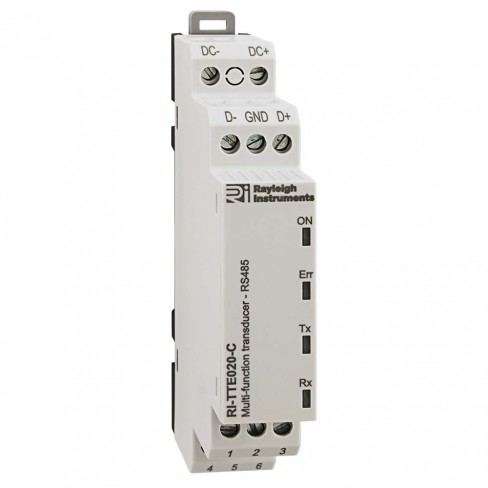

Rayleigh Instruments RI-TTE020-C Multifunction Signal/Temperature Transducer with RS485

DIN Rail mounting
Input Type : mV, V, mA, PT100 (2, 3 and 4 wire) and Thermocouple (J, K, E, R and S type)
Configurable Input Signal : 0…60mV, 0…100mV, 0…250mV, 0…500mV
0…1V, 0…2V, 0…2.5V, 0…5V, 0…10V, 0…20V
-60…60mV, -100…100mV, -250…250mV, -500…500mV
-1…1V, -2…2V, -2.5…2.5V, -5…5V, -10…10V, -20…20V
0…5mA, 0…10mA, 0…20mA, -5…5mA, -10…10mA, -20…20mA, 4…20mA, 0…24mA, 4…24mA, 0…12mA
Input Temperature Range:-
PT100 : -150…800°C
Thermocouple (all configurable) : J : -200°C…1200°C, K : -200°C…1350°C, E : -200°C…950°C, R : -50°C…1750°C, S : -50°C…1750°C
Supply Current : 11…30V DC
Power Consumption : ≤15mA @ 24V
Over-voltage and reverse polarity protection
RS485 Modbus RTU Communication

Multifunction Signal and Temperature Transducer with RS485 Modbus RTU communications.

Manufacturer	Rayleigh Instruments

Product Name / Options	Price (ex VAT)
Call our Sales Team for Model Options and Prices - 01245 428500	Call for Prices
