Rayleigh Instruments RI-TAA0010 Current Transducer - True RMS

More Views

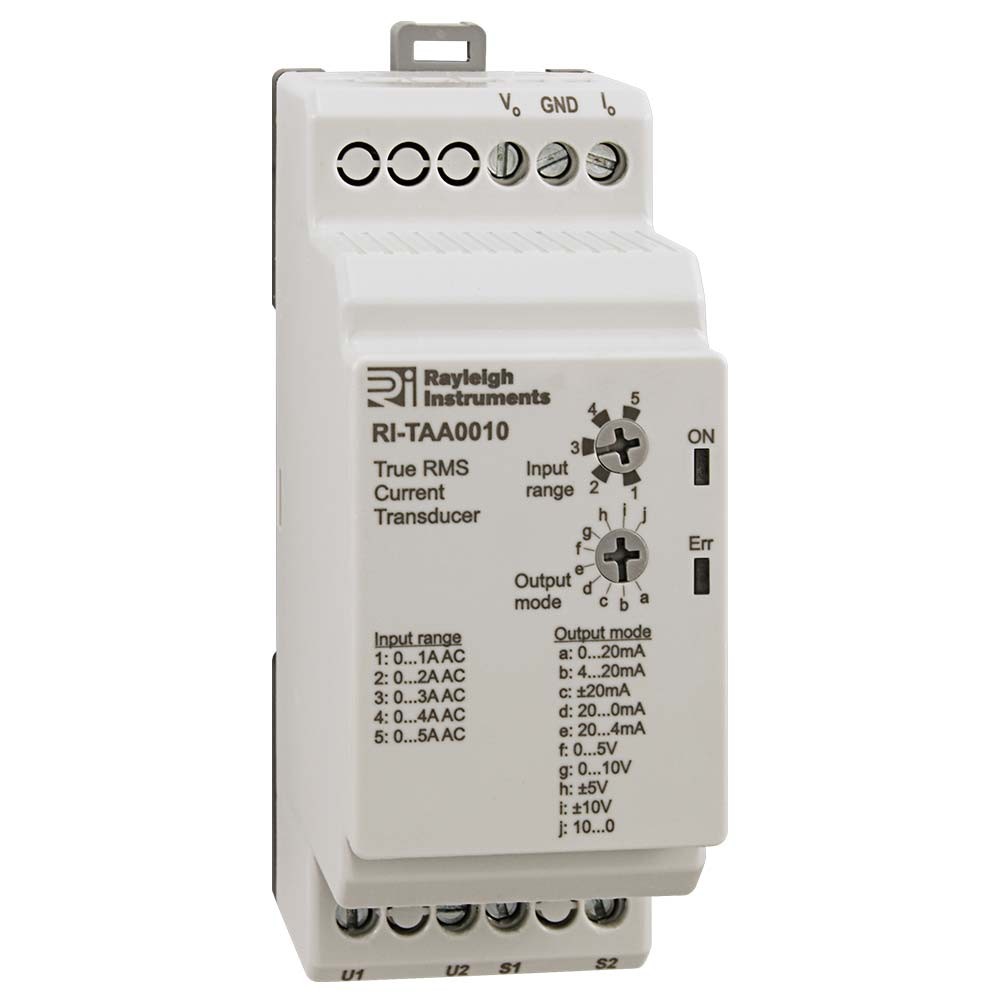

Rayleigh Instruments RI-TAA0010 Current Transducer - True RMS

Features

DIN Rail mounting
Configurable Input Current Range (AC) : 0…1A, 0…2A, 0…3A, 0…4A, 0…5A
Frequency : 40…70Hz
Surge Overload : 20xin (100A) for 1sec
Configurable Output : 0…20mA, 4…20mA, ±20mA, 20…0mA, 20…4mA, 0…5V, 0…10V, ±5V, ±10V, 10…0V
Supply Voltage : 85…265V AC, 85…265V DC
Power Consumption : <4VA AC, <1.5W DC
Response Time : <350ms

- | Add to Compare

Details

To measure single phase True RMS AC Current inputs both direct, or from a current transformer (-/1A or -/5A) and deliver a proportional DC analogue output.

Additional Information

Manufacturer	Rayleigh Instruments

Downloads

Files

RI-TA Series Data Sheets (1.49MB)

Product Name / Options	Price (ex VAT)
Call our Sales Team for Model Options and Prices - 01245 428500	Call for Prices
