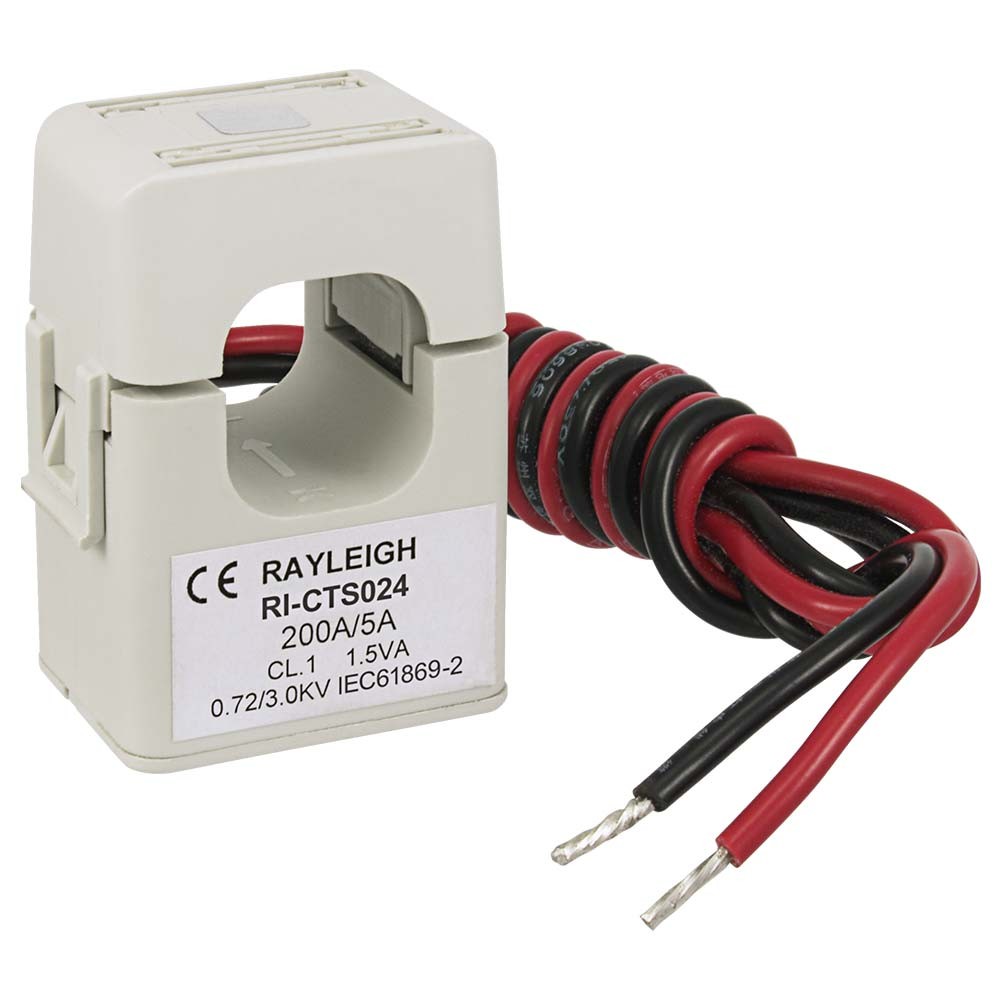

Rayleigh Instruments RI-CTS024 Single Phase Clip-on Mini Split Core Current Transformer - 24mm Aperture

Features

  • Available as 100A, 160A, 200A, 250A and 300A Primary currents
  • 5A or 1A Secondary output
  • 50mm width
  • 24mm cable aperture
  • Integral 1 metre cable

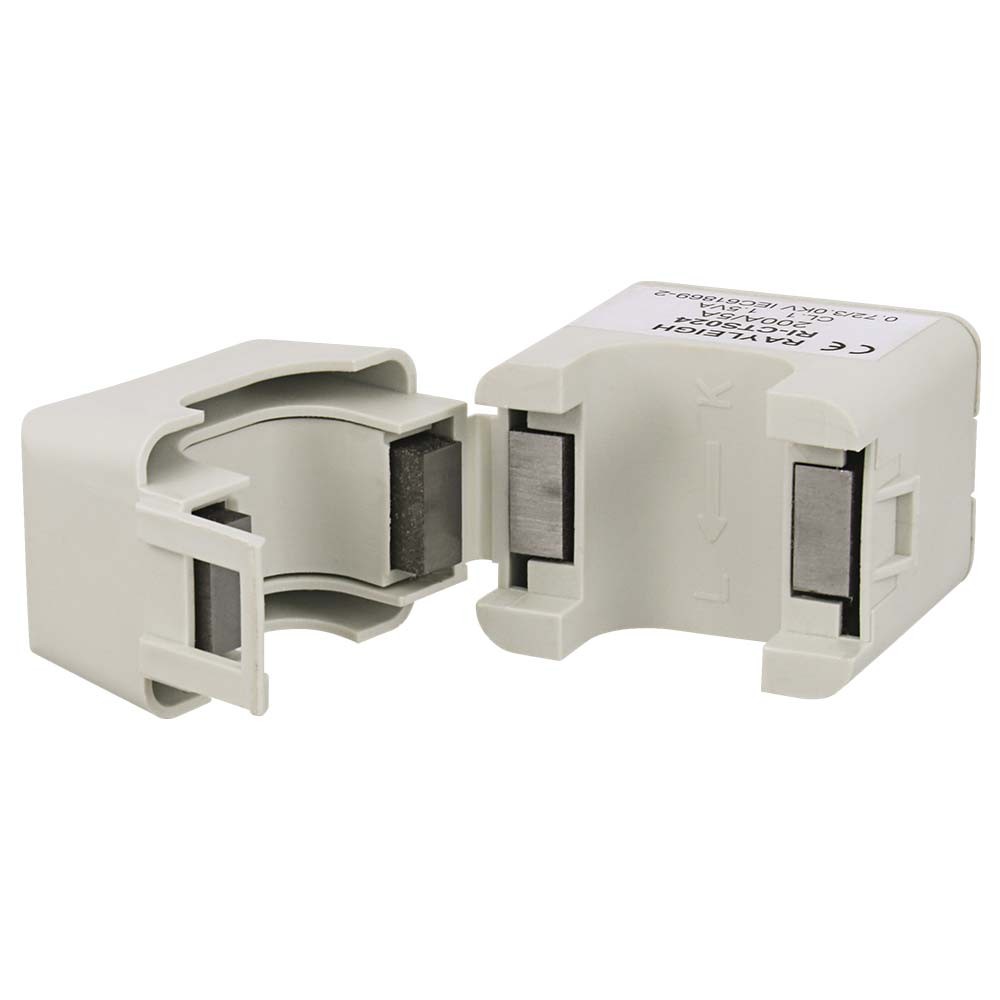

  • Snap together housing
  • Compact design
  • Indication of primary current flow (arrow on case body)

Details

The RI-CTS024 Series forms part of a large family of split core single phase moulded case current transformers from Rayleigh Instruments.

These transformers are suitable for monitoring current flow in commercial, industrial or utility applications. They are designed to connect any standard metering or relay product requiring a 5A or 1A output and are available with Primary current input ranges of 100A, 160A, 200A, 250A and 300A.

The RI-CTS024 Series have been designed for ease of installation into existing plants where removal of busbars or cable lugs is impractical. They also have clear markings moulded into the case to indicate the correct direction of primary current flow to minimise installation errors.

Additional Information

Manufacturer Rayleigh Instruments
Product Name / Options Price (ex VAT)
Call our Sales Team for Model Options and Prices - 01245 428500 Call for Prices
