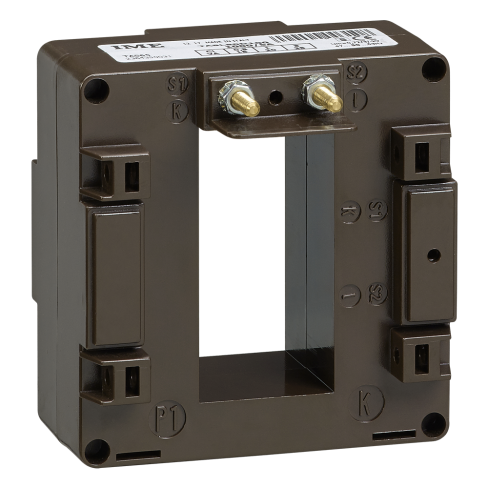

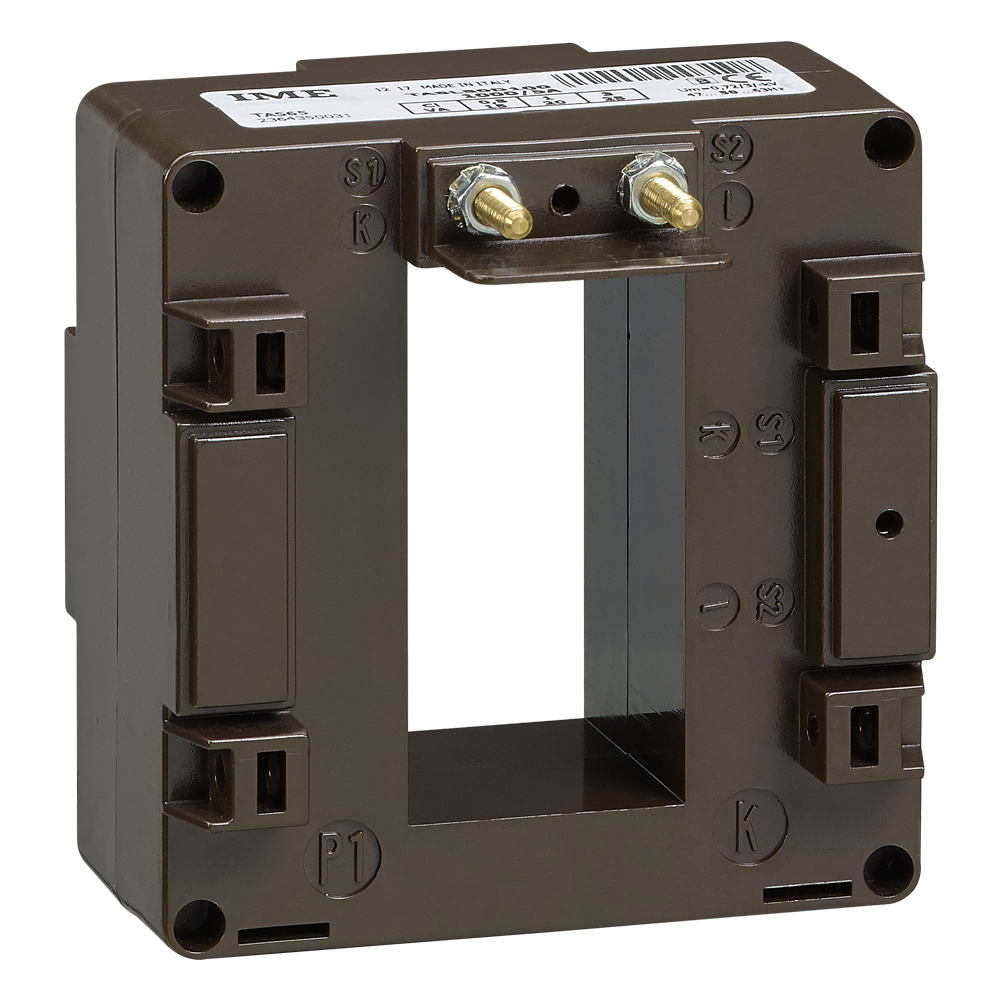

IME TASL TAS65 Solid Core Single Phase Measuring Current Transformer

Features

  • Measuring and protection current transformer (formerly TAS65)
  • Ranges: 200 to 2000A (1A or 5A Secondary)

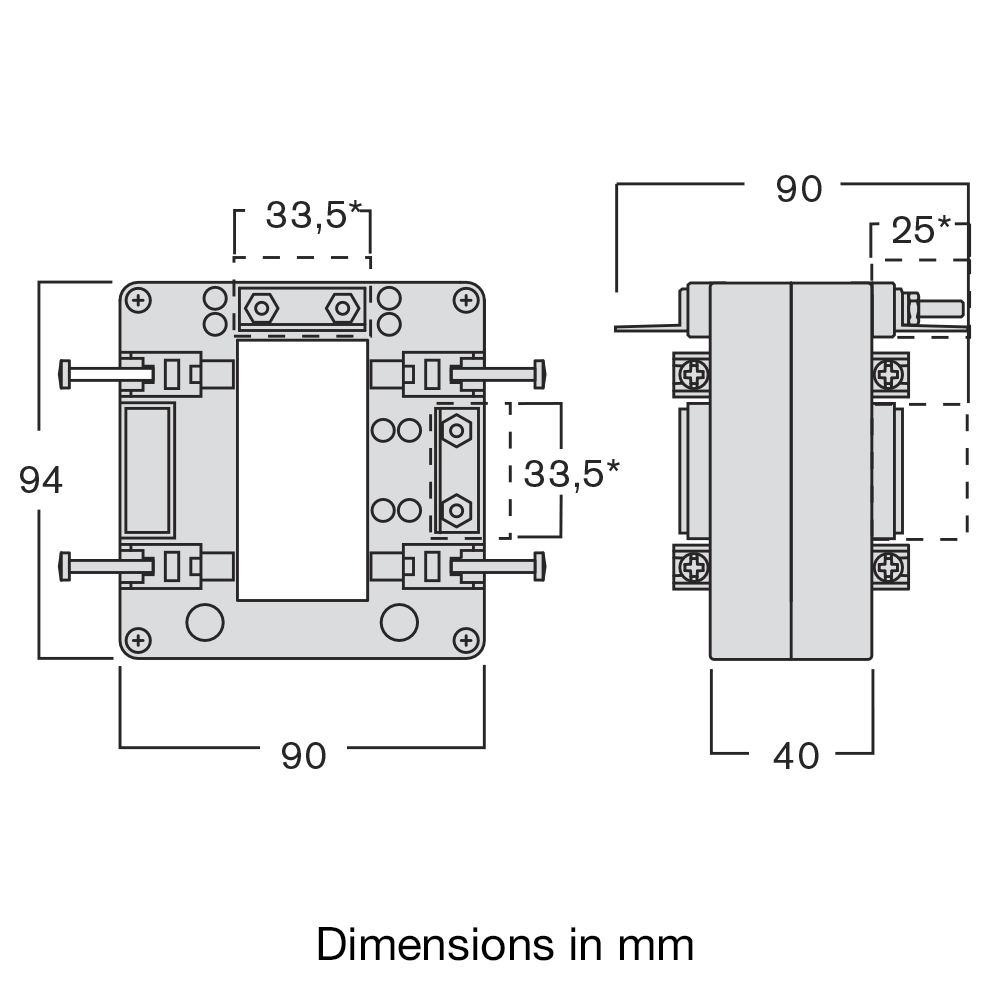

  • Busbar window 65 x 32mm
  • Supplied with busbar mounting clamps
  • Secondary pillar screw terminals
  • Optional sealable terminal cover (ATACOP04)
  • Weight 750g

Details

Stadium type measuring and protection current transformer supplied with busbar mounting bracket. The TASL transformer has a 65 x 32mm aperture and is available with primary currents from 200 to 2000A.

Additional Information

Manufacturer IME (BTicino)

Downloads

Product Name / Options Price (ex VAT)
TASL50C200 (200/5A) Call for Prices
TASL50C250 (250/5A) Call for Prices
TASL50C300 (300/5A) Call for Prices
TASL50C400 (400/5A) Call for Prices
TASL50C500 (500/5A) Call for Prices
TASL50C600 (600/5A) Call for Prices
TASL50C800 (800/5A) Call for Prices
TASL50D100 (1000/5A) Call for Prices
TASL50D120 (1200/5A) Call for Prices
TASL50D125 (1250/5A) Call for Prices
TASL50D150 (1500/5A) Call for Prices
TASL50D160 (1600/5A) Call for Prices
TASL50D200 (2000/5A) Call for Prices
TASL10C200 (200/1A) Call for Prices
TASL10C400 (400/1A) Call for Prices
TASL10C600 (600/1A) Call for Prices
TASL10C750 (750/1A) Call for Prices
TASL10C800 (800/1A) Call for Prices
TASL10D100 (1000/1A) Call for Prices
TASL10D160 (1600/1A) Call for Prices
TASL10D200 (2000/1A) Call for Prices
