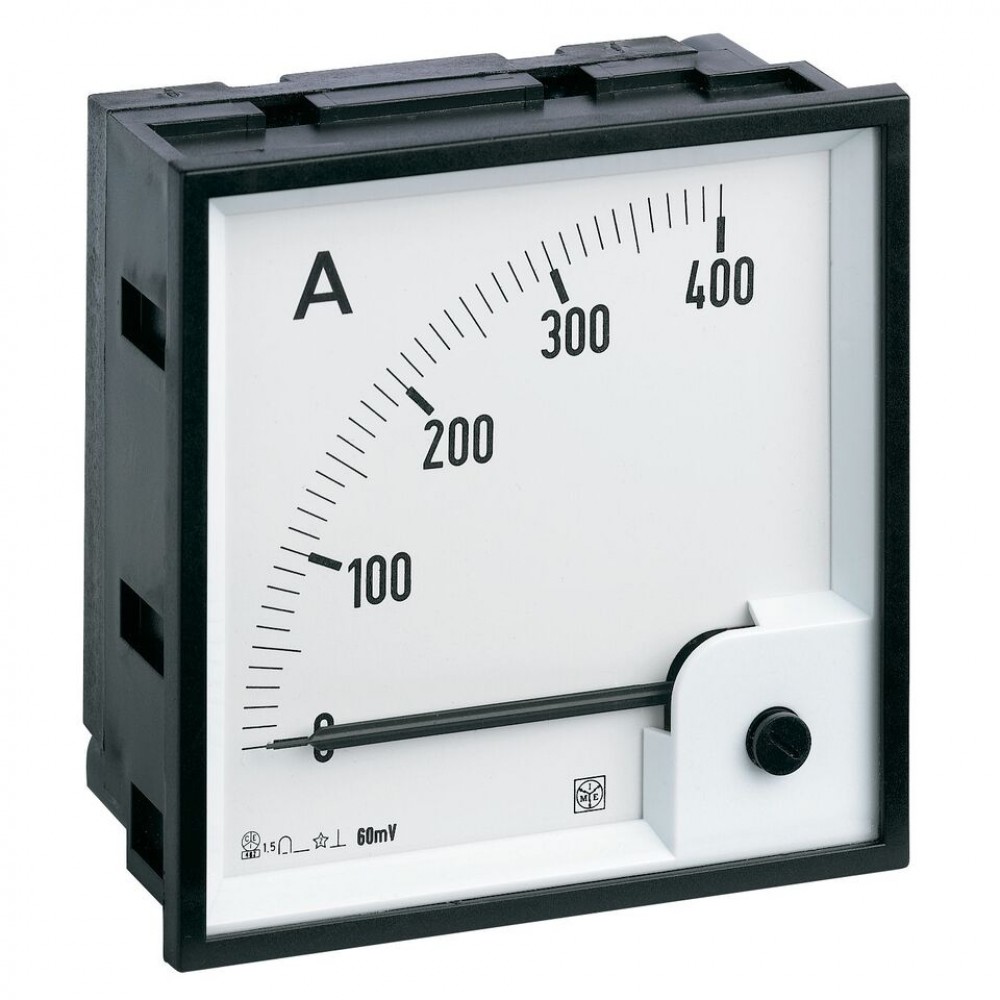

IME RQ72M Single Phase Analogue Ammeter for Direct Current, 72x72mm, Scale length 90°


  • Direct indication of input current or primary current of external shunt
  • Indication of any quantity, directly proportional to signals coming from transducers or sensors
  • Moving coil equipment
  • Direct connection 50µA...60A (40A for RQ48M)
  • Connection by external shunt
  • 1A/60mV...6000A/60mV
  • Connection by transducers or sensors
  • 1...600mA – 0...5/10/20 – 4...20mA
  • Lateral zero or central zero version
  • Live zero or mechanically suppressed
  • (4...20mA)
  • Scale length 90°
  • Accuracy cl.1,5


When ordering your please specify 1) Choose an input voltage 4.....20ma (from transducers or sensor with 4...20ma output) 0 ....+60mV (on shunt with 60mV c.d.t. displaced zero) or Direct Connected 1A to 6000A (on shunt with 60mV c.d.t. Lateral Zero) 2) Please specify the scale you require 3) Any Additional Analogue Instrument Optional Extras ?? Central Zero Tropicalisation IP54 Protection INPUT Quantity: direct current Connection: direct (S.250/109 or by external shunt (S.250/110) Rating current In Direct connection: 50µA...60A (40A for RQ48M) Connection by external shunt: 1A/60mV...6000A/60mV Connection by transducers or sensors: 1...600mA – 0...5/10/20mA – 4...20mA Continuous overload: 1,2In Instantaneous overload: 10In/5s Accuracy (EN/IEC 60051): cl.1,5 Option: accuracy cl.1 Voltage drop: from 700mV (In=50 µA) up to 60mV (In=10mA...60A) HOUSING Mounting: flush mounting Panel cutout: see table Front frame: see table Depth: see table Connections: screw terminal / fast-on 6,3 x 0,8mm screw terminal M7 with rating current In ≥ 20A Housing material: self-extinguishing policarbonate Protection degree (EN/IEC 60529): IP52 front frame, IP20 terminals (with protection) Option: protection IP54 front frame

Additional Information

Manufacturer IME (BTicino)
Product Name / Options Price (ex VAT)
To enquire about this product, please contact our Sales Department on 01245 428500 for a quotation using the order codes shown below Call for Prices

Add Optional Analogue Instrument Option Extra - Tropicalisation Call for Prices

Add Optional Analogue Instrument Option Extra - IP54 Protection Call for Prices
