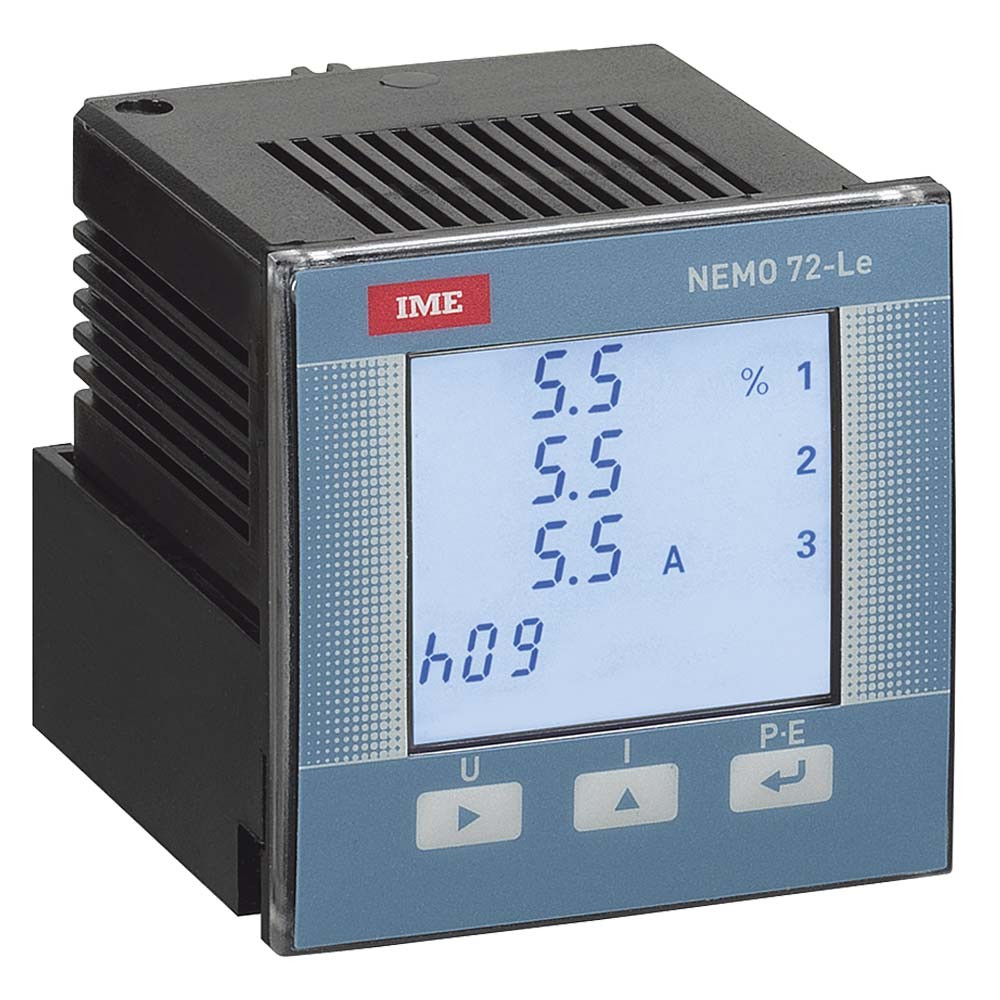

IME Nemo 72-Le Multifunction Energy Meter with Active Energy Count cl.0.5 / Reactive cl.2

More Views

IME Nemo 72-Le Multifunction Energy Meter with Active Energy Count cl.0.5 / Reactive cl.2

Features

DIN 72 panel mounted
High-definition backlit LCD display
Single phase or 3-phase, 3 or 4-wire unbalanced load operation
3-phase line 80…500V (phase-phase)
Connection on dedicated CT
Programmable external CT and VT ratio
Active energy class 0.5
RS485 communication by ModBus RTU/TCP or BACNET protocol
Phase sequence correction, diagnostics
Ethernet communication with external interface*

- | Add to Compare

Details

72 DIN panel mounted network monitor suitable for low voltage applications.

Displayed Parameters

Phase and linked voltage
Min. and max. phase voltage
Neutral and phase current
Current demand and current max. demand
Frequency
Power factor
Active, reactive phase power
Power demand and power max. demand
Total and partial, positive and negative active and reactive energy
Working hours and minutes
THDV and THDI
Harmonic analysis
Voltage and current crest factor
Phase angle between current and voltage
Phase angle between currents
Phase angle between voltages

Additional Information

Manufacturer	IME (BTicino)

Downloads

Files

Nemo 72-Le - Data Sheet (1MB)
Nemo 72-Le - BACnet Protocol (105KB)

Product Name / Options	Price (ex VAT)
MF72411 - Nemo 72-Le (80…265Vac 100…300Vdc Aux. Supply, Pulse Output)	Call for Prices
MF72421 - Nemo 72-Le (80…265Vac 100…300Vdc Aux. Supply, Pulse and RS485 Modbus Output)	Call for Prices
MF724B1 - Nemo 72-Le (80…265Vac 100…300Vdc Aux. Supply, Pulse and RS485 BACnet Output)	Call for Prices
MF72412 - Nemo 72-Le (20…60Vdc Aux. Supply, Pulse Output)	Call for Prices
MF72422 - Nemo 72-Le (20…60Vdc Aux. Supply, Pulse and RS485 Modbus Output)	Call for Prices
MF724B2 - Nemo 72-Le (20…60Vdc Aux. Supply, Pulse and RS485 BACnet Output)	Call for Prices
