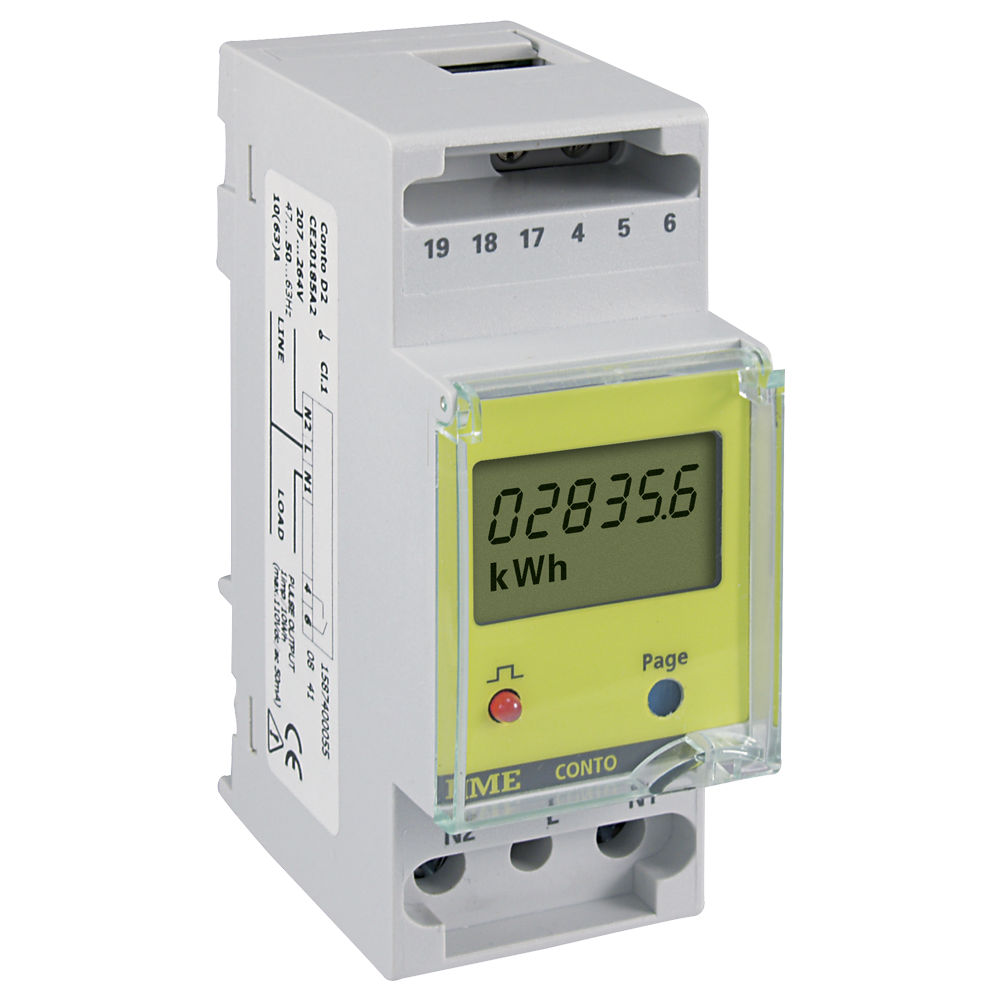

IME Conto D2 Class 1 Single Phase Network kWh Energy Meter (Not MID Certificated)

Features

  • Kilowatt hour meter / active energy meter
  • 2 module wide
  • DIN rail mounted
  • Single phase network
  • Input current 10(63)A
  • Input voltage 230V
  • Active energy class B (EN50470)
  • Reactive energy class 2 (EN60253-23)
  • Total active energy, Partial active energy (resettable), Current, Voltage, Active power (kW), Frequency, Power factor, Hours run meter (resettable)
  • LCD Display 5+1= 999999.9
  • Self supplied auxiliary
  • Integrated Communication Protocols are *Pulsed output or *RS485 Modbus RTU (*depending on model ordered)

Details

Conto D2 range is a Class 1, single phase kilowatt hour meter.
The Conto D2 is a 36mm DIN Rail mounted KWh (Kilowatt hour) active energy meter with either a pulse output or Modbus RS485 communications.
63A direct input, on a 230V 50/60Hz system.

Additional Information

Manufacturer IME (BTicino)

Downloads

Files

Conto D2 Protocol Handbook Conto D2 Protocol Handbook - PR121-00
Conto D2 Instruction Manual Conto D2 Instruction Manual - 10782122W 10-11
Conto D2 Data Sheet Conto D2 Data Sheet - NT765-V08
Product Name / Options Price (ex VAT)
IME Conto D2 CE20195A2 63A Direct Connect With Pulse Communications Call for Prices
IME Conto D2 CE20195A4 63A Direct Connect With RS485/Modbus RTU Communications Call for Prices
