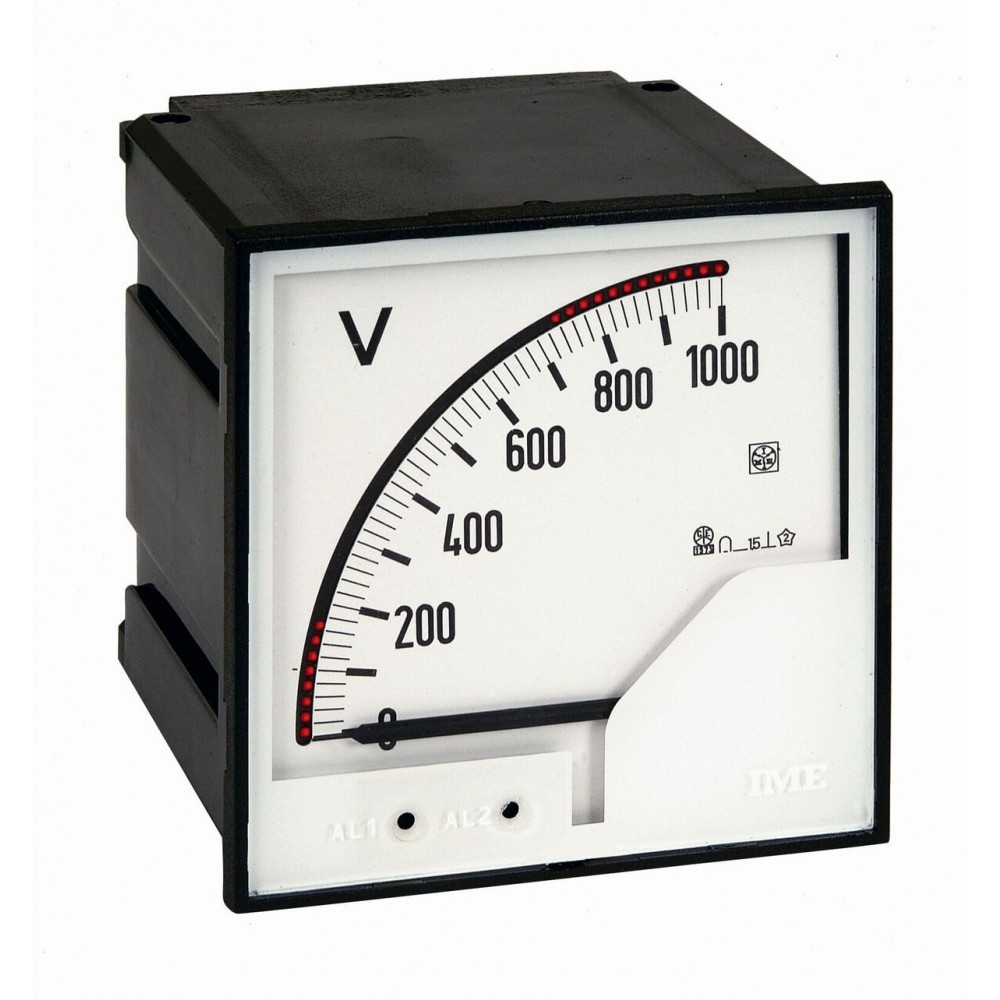

IME ANT6 AL96DC Analogue Meters with Alarms for Direct Voltage 96x96mm

Features

  • Direct voltage measurement
  • Display any proportional
  • process variable
  • Speed from tachometer dynamo measurement
  • Direct input 1...200V
  • Indication of primary current
  • of external shunt
  • 2 programmables alarms

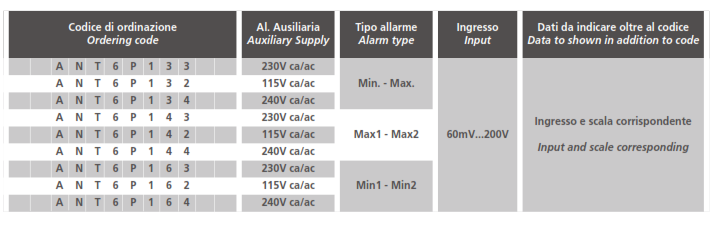

  • Alarms type: MIN+MAX or MIN1+MIN2 or MAX1+MAX2

Details

Direct voltage measurement Display any proportional process variable Speed from tachometer dynamo measurement Direct input 1...200V Indication of primary current of external shunt 2 programmables alarms Alarms type: MIN+MAX or MIN1+MIN2 or MAX1+MAX2 Scale lenght 90° Accuracy cl.1,5 DISPLAY Scale colour: white background, black divisions and numbering Customized scales upon request Option: reference red mark Scale lenght: 90° Standard scale marking: 0...Un (0...In input from shunt) Pointer colour: black INPUT Quantity: direct voltage Connection: direct or from external shunt Rating voltage Un: 60mV...200V Continuous overload: 1,2Un ALARMS Programmables alarms: 2 Type: MIN+MAX or MIN1+MIN2 or MAX1+MAX2 (see ordering code) Set point setting: by the 2 front keys Setting indication: 41 LED’s bargraph Alarm indication: bargraph blanking segment Accuracy: ± 2,5% Un Histeresis: 5% set point value Intervention delay: singly selectable for each alarm Delay selection: by dip switch removing the front frame Selectable time: 1-3-6-15 seconds Reset time: ≤ 600ms OUTPUT 2 relays with SPDT contacts, potential free Contacts range: 230V 4A cosφ 0,4 – 24V 4Adc Negative security execution (normally de-energised relay) AUXILIARY SUPPLY Rating value Uaux.: 115 – 230 – 240V Tolerance: ± 10% Uaux Rating frequency fn: 50Hz Working frequency: 47...63Hz Rated burden: ≤ 3VA HOUSING Mounting: flush mounting Panel cutout: 92x92mm Front frame: 96x96mm (99x99mm with IP54 protection kit) Depth: 103mm Connections: fast-on 6,3x0,8mm Housing material: self-extinguishing policarbonate Grado di protezione (EN/IEC 60529): IP52 front frame, IP20 terminals (with protection) Option: IP54 front frame protection (with kit ADGIP549) Weight: 450 grams ORDERING INFORMATION
Product Name / Options Price (ex VAT)
Please call our sales office on 01245 428500 or email sales@rayleigh.com to enquire about this product Call for Prices
