Not insulated dip switch configurable din rail converter. Input Pt100 2,3 wires. Power supply 10...30Vdc. Reverse polarity protection 60Vdc Max. Configurable output : 0/4...20mA ; 0...10 V.

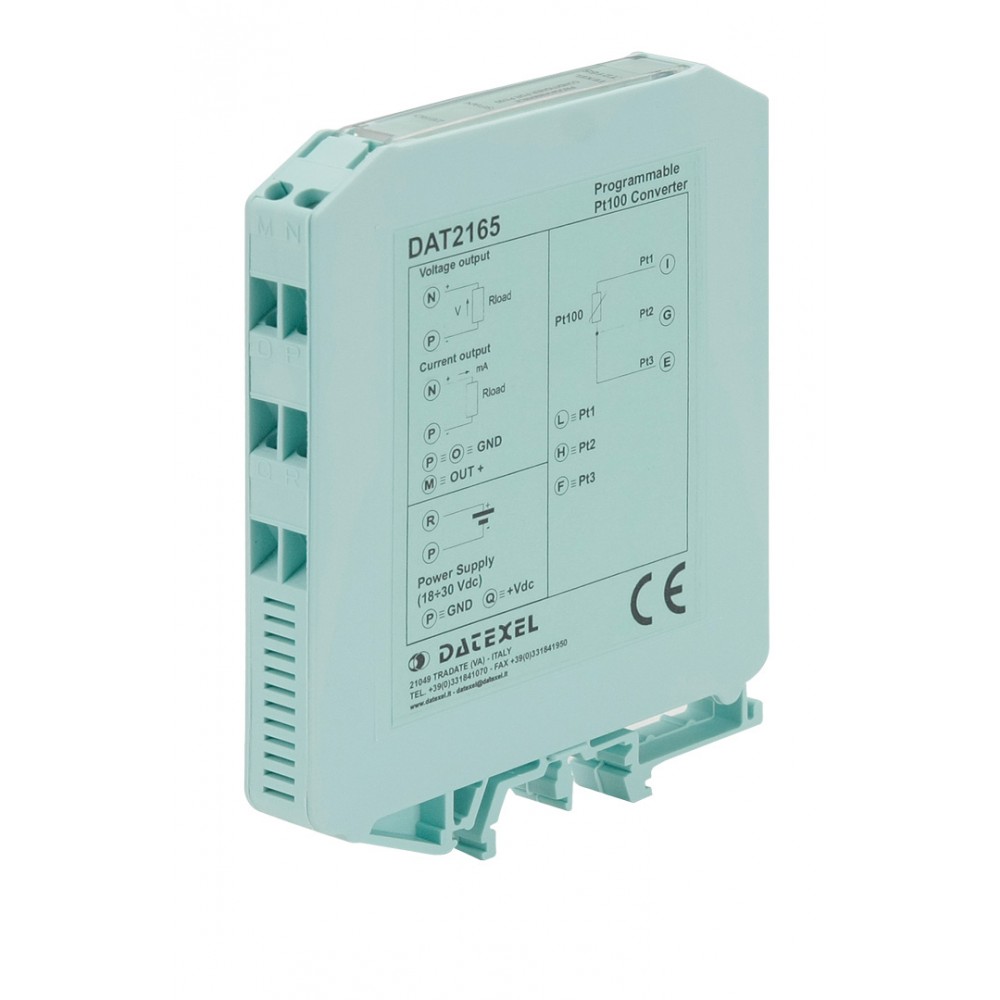

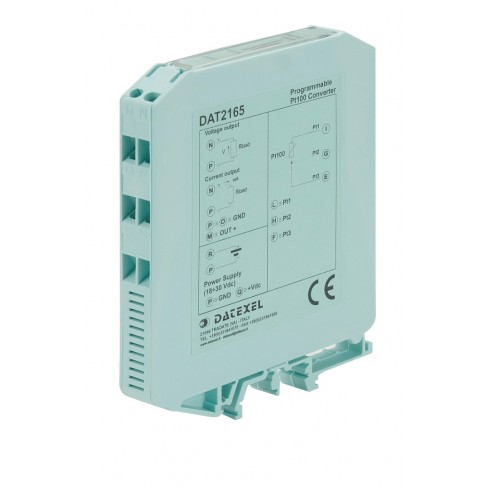

The converter DAT 2165 is designed to provide on its output a linearised voltage or current signal proportional with the temperature characteristic of the Pt100 sensor connected on its input. It is possible to connect on the input both 3 wires and 2 wires Pt100.
The user can program the input and output ranges by the proper DIP-switches available after opening the suitable door located on the side of device (see “Input range table” and “Output range table” sections). The regulation of Zero and Span values is made by the ZERO and SPAN potentiometers located on the top of device. It has been made in compliance with the Directive 2004/108/EC on the Electromagnetic Compatibility. It is housed in a plastic enclosure of 12.5 mm thickness suitable for DIN rail mounting in according to EN-50022 and EN-50035 standards.
