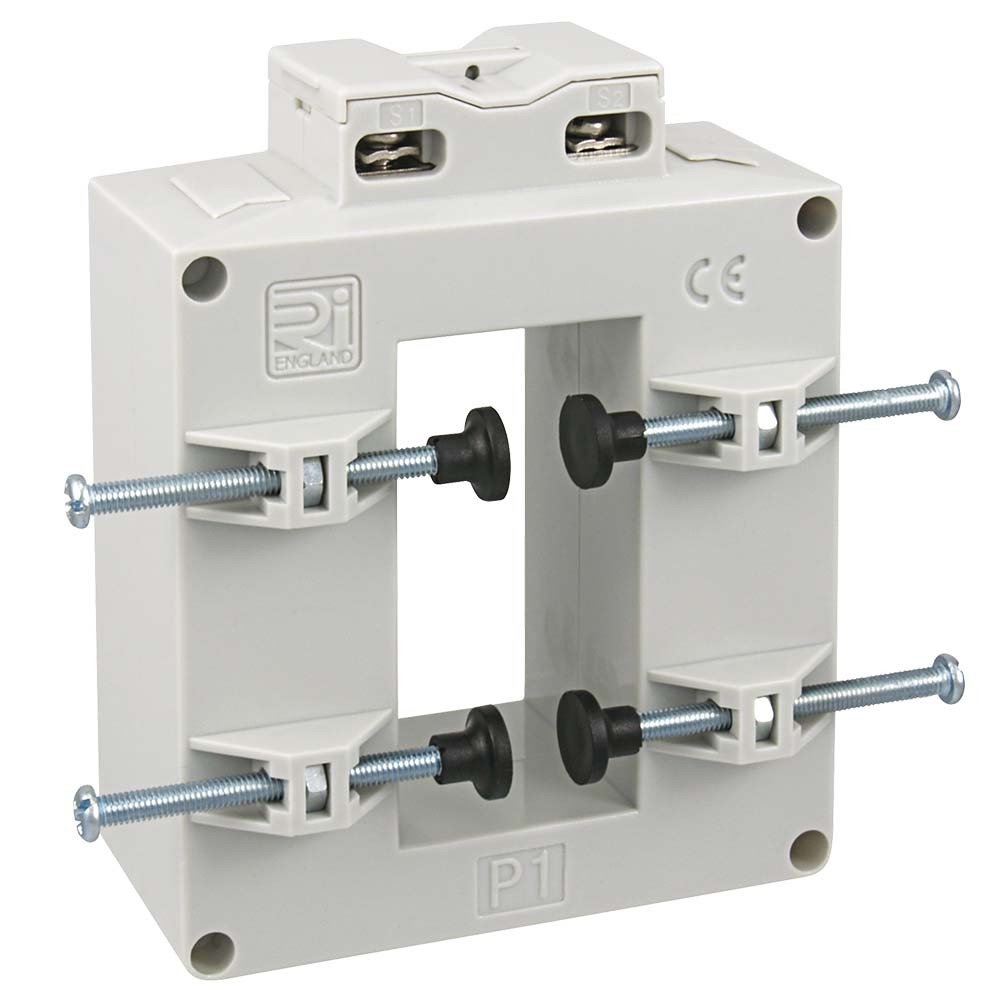

RI-CT120 Single Phase Current Transformer

Features

  • From 150A to 2000A Primary currents
  • 5A or 1A Secondary output
  • 90mm width
  • 32 x 65mm aperture
  • Sealable terminal cover

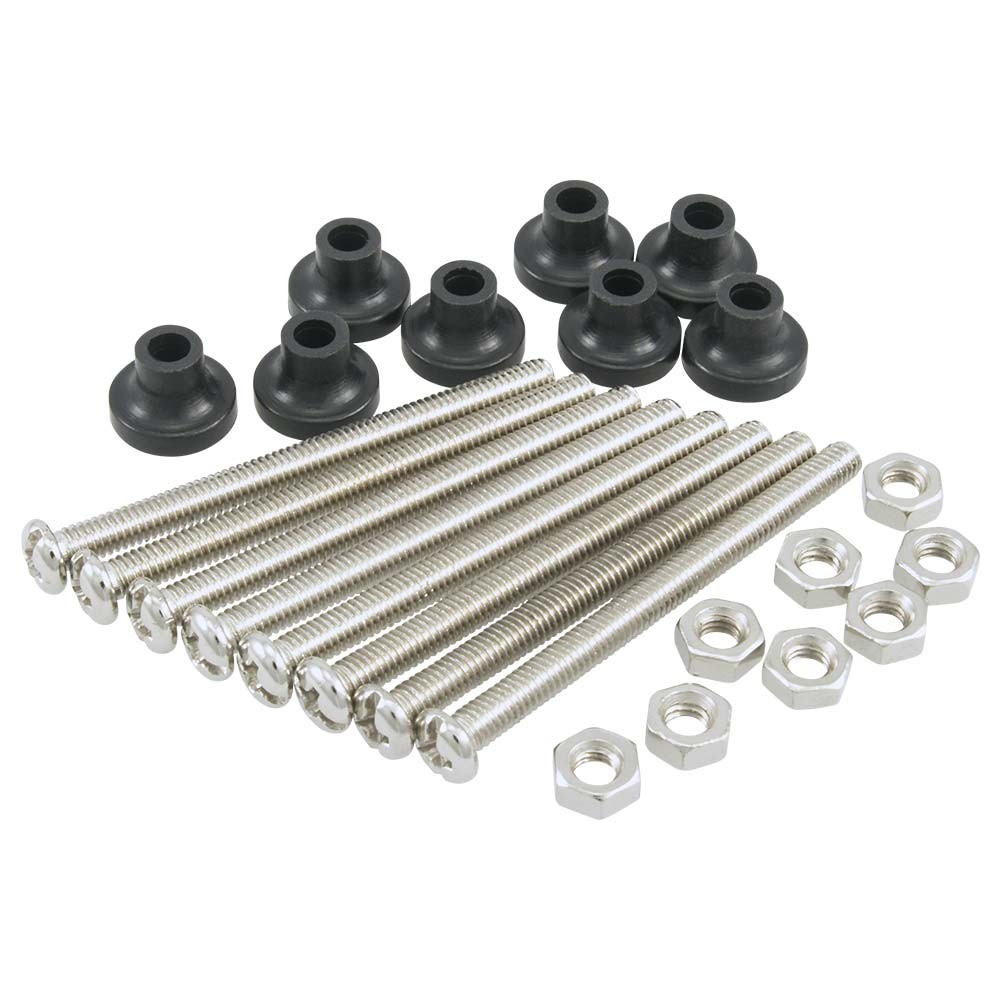

  • Supplied with Busbar fixings
  • Compact design
  • Indication of primary current flow (arrows on case body)

Details

The RI-CT120 Series forms part of a large family of solid core single phase moulded case current transformers from Rayleigh Instruments.

These transformers are suitable for monitoring current flow in commercial, industrial or utility applications. They are designed to connect any standard metering or relay product requiring a 5A or 1A output and are available with Primary current input ranges from 150A to 2000A.

The RI-CT120 Series have been designed for ease of installation and are supplied with Busbar fixings. They also have clear markings moulded into the case to indicate the correct direction of primary current flow to minimise installation errors.

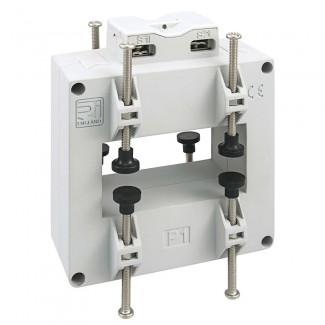

Options: A horizontal mounting version of this current transformer is also available.

Additional Information

Manufacturer Rayleigh Instruments
Product Name / Options Price (ex VAT)
Call our Sales Team for Model Options and Prices - 01245 428500 Call for Prices
