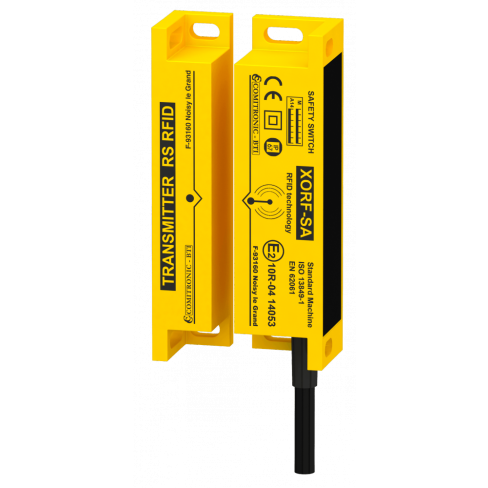

Controls the position of security doors with RFID encoding for wheeled vehicles.
RFID sensor with 16 million codes
Suitable for metallic environments
Programmable code through auto-learning (no software or PC)
Level of performance with AWAX controller : up to PL = e
Safety category : up to 4 (EN 954-1) with AWAX controller
Time to dangerous failure: MTTFd = 40 years
Power supply 8…30VDC
Consumption 12V : 70mA and 24V : 81mA
Safety contact 2 contacts NO : 50mA-1Ω et 1
PNP/50mA-1Ω
Diagnostic contact 1 contact NO : 50mA-1Ω
Contact protection Pulse 150mA / continuous : 50mA
Automatic reset
Response Time Closing safety contacts : 900ms
Risk period Opening safety contacts: 130ms
Display Blinking LED : unstable position
Fixed LED : active position
LED Switched off : out of range
Range / offset at 25°C Range : 16…20mm offset: ±14mm
Operating temperature : -30°C…+50°C
Storage temperature : -40°C…+85°C
Protection index IP 67
Curvature of cable Radius 50mm
Size L x W x H Transmitter : 92.5 x 17 x 25mm
Receive r: 92.5 x 25 x 25mm
Weight : 170g
