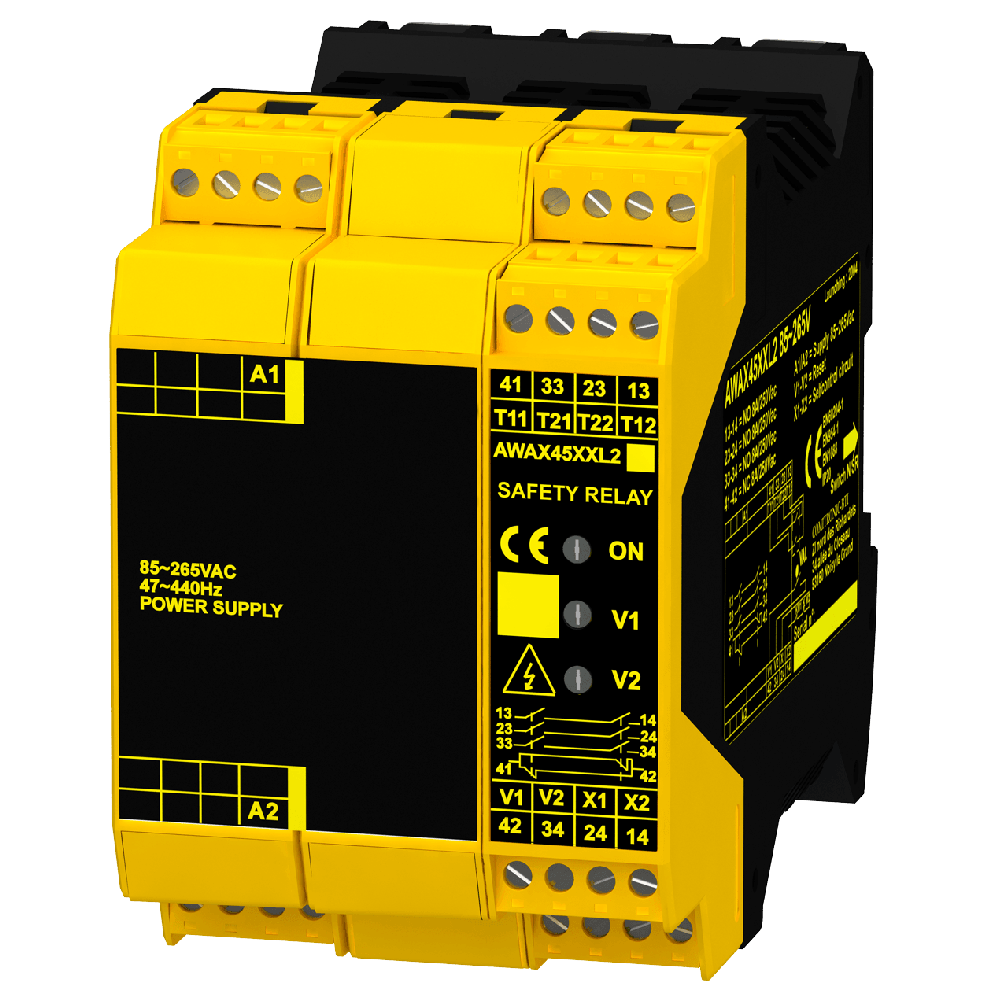

The AWAX45XXL2, category 4 according to EN954-1, has been designed to control mechanical switches, switches using the process ACOTOM (BTI's trademark), or the emergency push buttons with 2 NC lines at least. This module has 4 safety lines (3 NO + 1 NC), each line has a switching capacity of 8A/250VAC. It is used in all high safety and/or high power commutation applications.
Technical Specification
Power supply : 85V AC to 265V AC; -15%/+10%; 50Hz…440Hz
Current consumption : < 12VA
Safety outputs : 3 NO 8A/250V AC
Auxiliary output : 1 NC
Switching power : > 50mW
Electrical protection : DLC : Electronic current-limiting circuit-breaker
Temperature operation : -20°C…+55°C
Protection class : IP20
Reaction time : < 20ms
MTTFd/DC : 463 years / 99.5%
B10d : AC1: 860000, AC15: 300000, DC13: 300000
Housing : Polycarbonate, yellow
Connection : Plug-in terminals
Dimensions (W x H x D) : 67.5 x 100 x 114mm
Weight : 550g
Standards : EN ISO13849-1, EN 292, EN 418, EN 60204-1
Safety classification Acc. to EN ISO 13849-1 : PLe Cat. 4
Certification : CE
