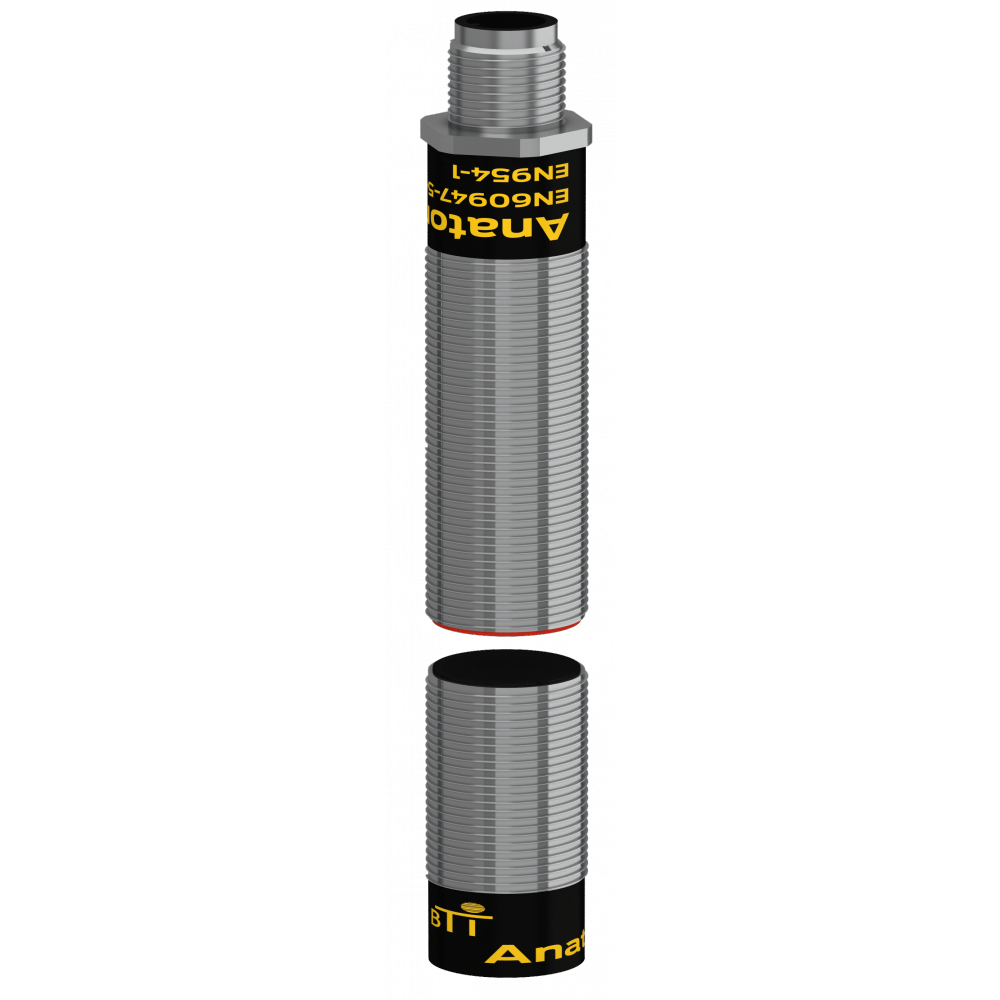

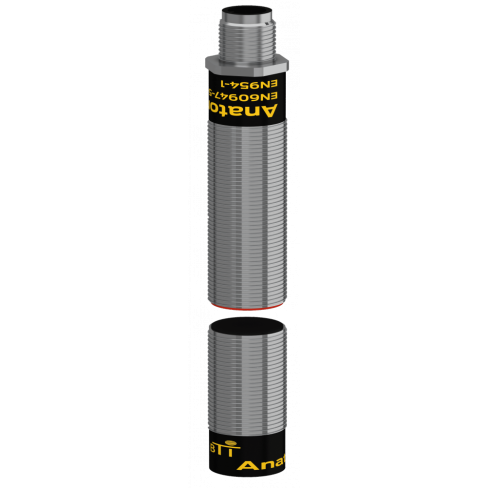

Comitronic-BTI ANATOM M18 Non contact coded safety switches - Non stand-alone operation


  • Decoding by ACOTOM® Process
  • LED status display of the correct code recognition
  • Misalignment : ±30° in rotating movement
  • Auxiliary output for automation control or light
  • Metal housing CuNi with M12 quick connector
  • Static outputs
  • Unlimited life expectancy


The ANATOM M18 is a magnetic coded safety switch, using our process ACOTOM2. It has to be connected to a safety module of our AWAX range. It offers an high uncheatability and allows the detection of the opening of guard-doors on dangerous machines. Composed of two elements in CuNi, one named the "transmitter", the other named "the receiver", it provides two NO contacts lines, free of voltage, entirely static independent and insulated from the decoding system, giving a very high user safety, and one PNP NO static contact, indicating the state of the switch, usable on a PLC. Like all safety devices, this switch must be checked periodically.

Technical datas

Switching distance Sn (closing) :6mm
Switching distance Sn (opening) : ±30° rotation
Hysteresis/Misalignment : +2mm
Power supply : 24V DC; –15% / +10%
Current consumption : 50mA/DC
Safety outputs : 2 static outputs; 24V DC/800mA @ 25°C
Auxiliary output : 1 PNP/NC 250mA
Coding principle : ACOTOM®
Temperature operation : -20°C…+60°C
Max. switching frequency: 500μs
Resistance to vibration : 30g / 11ms
Shock stress : 10…55Hz, 1.5mm
Protection class : AC-12, DC-12
Mechanical life expectancy: IP67
MTTFd/DC : 225 years / 80%
Housing : CuNi Metal
Connection : Built-in M12 8-pin
Standards : EN60947-5-3, EN954-1, EN13849-1, EN55022, EN61000-6-2; 01/2006; EN61000-6-4; 03/2007
Electromagnetic immunity : Acc. to IEC 61000-6-2, acc. toIEC 61000-6-4
Weight Emitter/Receiver : 25g/35g
Safety classification :
Acc. to EN ISO 13849-1 : 1 switch up to PLe cat.4 Serie wiring possible with 30 switches on a safety relay, up to PLe cat.3
Certification : CE

Additional Information

Manufacturer Comitronic - BTI
Product Name / Options Price (ex VAT)
Comitronic-BTI ANATOM M18 CAT3 in serial. Cat 4 alone on AWAX 2NO+1NF 50cm cable + M12 connector Call for Prices
