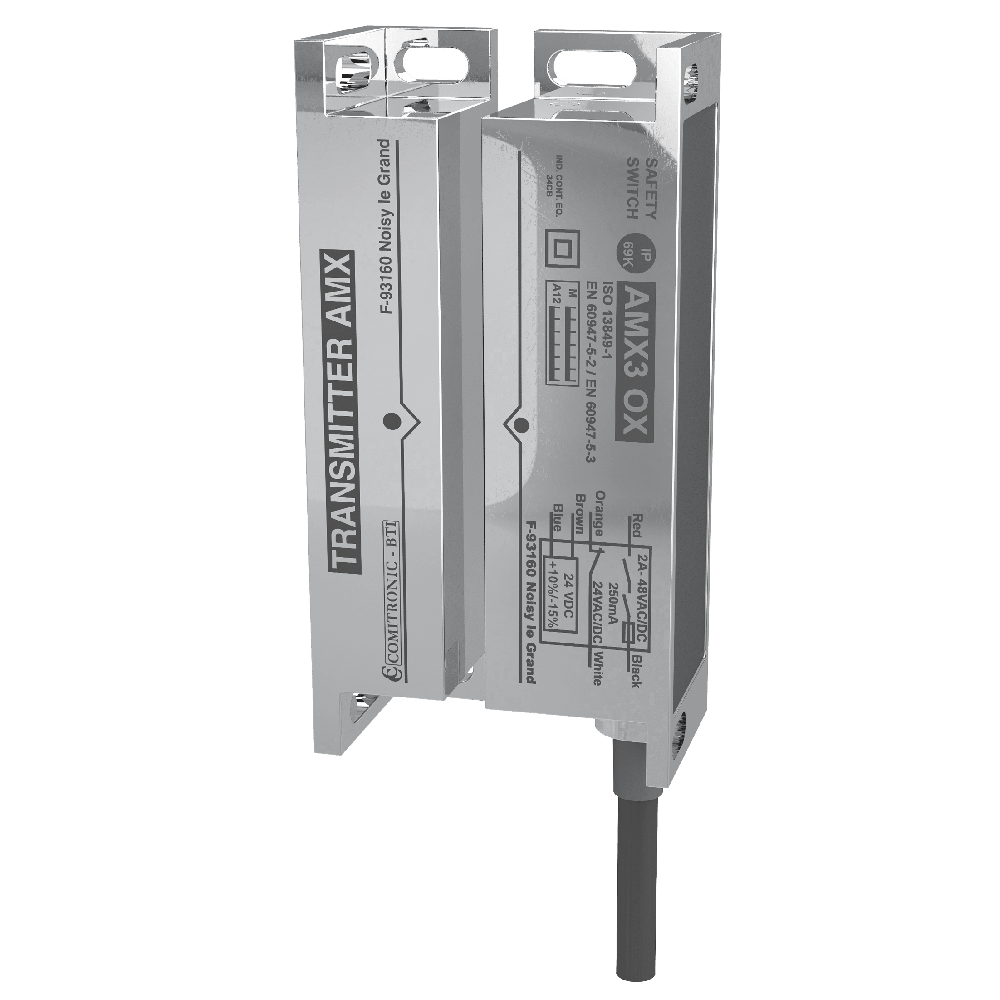

Comitronic-BTI AMX3/OX Non Contact Coded Safety Switches - Stand alone operation - 316L Stainless Steel Version

Features

  • Available with 3m, 6m, 12m cable lengths
  • Integrated self-control ACOTOM®
  • LED status display of the correct code recognition
  • High safety category and performance level: PLd Cat.3
  • Wide range of options
  • No additional safety relay necessary: easy to implement into an existing system wihtout modifying all the electrical diagrams
  • Safety outputs: 2 NO outputs 48V AC, 30V DC, 2A

Details

AMX3 devices are coded electronic autonomous sensors using our ACOTOM® process, allowing the opening of mobile protectors on dangerous machines to be detected. It is able to detect its own failure and lock itself, preventing the safety line from closing. A sensor consists of two PA6 or 316L stainless steel (AMX3OX) transmitting and receiving parts. The receiver supplies one potential-free NO safety lines and an NC auxiliary contact. This safety product must be checked at least once a year.

Technical data :

Switching distance Sn (closing): 7mm
Switching distance Sn (opening): 10mm
Hysteresis/Misalignment: +2mm / ±7mm
Power supply: 24V AC/DC –15% / +10%, 50/60Hz
Current consumption: 40mA/DC, 50mA/AC
Safety outputs: 2 NO outputs 48V AC, 30V DC, 2A
Auxiliary output: PNP-NC, 250mA
Electronic double coding with self-control : ACOTOM®
Temperature operation: -20°C…+60°C
Max. switching frequency: 2Hz
Resistance to vibration: 10g / 11ms
Shock stress : 10…55Hz, 1.5mm
Protection class: IP67
Mechanical life expectancy: 50.000.000 operations
Housing: STAR2E, yellow
Connection: Cable 8-pin, 3m/6m/12m
Standards: EN60947-5-1, EN954-1, EN13849-1
Electromagnetic immunity : Acc. to IEC 61000-6-2, acc. to IEC 61000-6-4
Weight Emitter/Receiver: 77g / 211g
Safety classification:
Acc. to EN ISO 13849-1 : 1 switch up to PLd cat.3
Certification: CE, TÜV, UL/CSA

Additional Information

Manufacturer Comitronic - BTI
Product Name / Options Price (ex VAT)
Comitronic-BTI AMX3/OX/MKT 1NO+1NF 316L Stainless Steel Version 50cm cable + M12 connector Call for Prices

Comitronic-BTI AMX3/OX With 3m Cable - 24V AC/DC –15% / +10%, 50/60 Hz - 316L Stainless Steel Version Call for Prices

Comitronic-BTI AMX3/OX With 6m Cable - 24V AC/DC –15% / +10%, 50/60 Hz - 316L Stainless Steel Version Call for Prices

Comitronic-BTI AMX3/OX With 12m Cable - 24V AC/DC –15% / +10%, 50/60 Hz - 316L Stainless Steel Version Call for Prices
