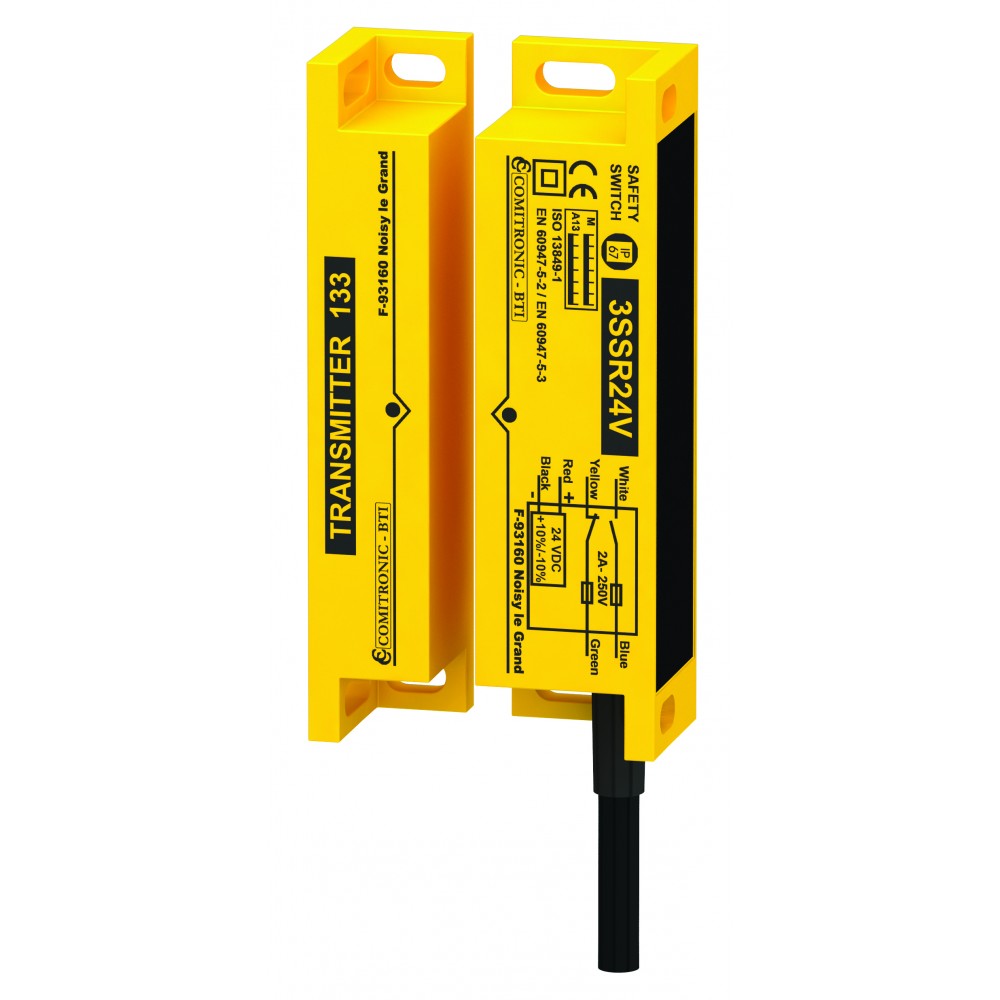

Comitronic-BTI 3SSR 24V Polyamide Non contact coded safety switches - Stand alone operation

Features

  • Coded „ACOTOM®
  • Easily replaces mechanical safety swicthes
  • High switching capacity
  • LED status display of the correct code recognition
  • 4SSR24BX and 5SSR24BXUS: bicolor red/green LED
  • 5SSR24BX: monocolor LED

Details

Switching distance Sn (closing): 7 mm Switching distance Sn (opening): 10 mm Hysteresis/Misalignment: +2 mm / ±10 mm Power supply: 24V AC/DC –15% / +10%, 50/60 Hz Current consumption: 45 mA/DC, 50 mA/AC Safety outputs: outputs 250V/2A 2NO (4SSR24V and 5SSR24BX and 5SSR24BXUS) 1NO/NC (3SSR24V) Auxiliary output: 1 PNP/NC 250mA (5SSR24BX) Coding principle : ACOTOM® Temperature operation: -20°C to +60°C Max. switching frequency: 2 Hz Resistance to vibration: 10 g / 11 ms Shock stress : 10-55 Hz, 1,5 mm Protection class: IP67 Mechanical life expectancy: 50.000.000 operations MTTFd/DC : 50 years / 90 Housing: STAR2E, yellow Connection: Cable 8-pin., 3m/6m/12m, or M12 pigtail 8-pin (on 5SSR24BX) Standards: Electromagnetic immunity : EN60947-5-1, EN954-1, EN13849-1 Acc. to IEC 61000-6-2, acc. to IEC 61000- Weight Emitter/Receiver: 70g / 205g Safety classification: Acc. to EN ISO 13849-1 : switch up to PLc cat.1 Serie wiring possible with 30 switches on a safety relay, up to PL3c (PL4c if only one) Certification: CE The 3SSR24V is a coded electronic autonomous sensor using our process ACOTOM allowing to detects the opening of the mobile protectors on dangerous machines. Housing in two polycarbonate cases (the transmitter and the receiver), it provides two contacts (NO + NF). This FURTIF is provided with 001 code for the standard version and optional with 002 to 008 codes.
Product Name / Options Price (ex VAT)
Comitronic-BTI 3SSR24V Non contact coded safety switches 1NO+1NF with 3m Cable Call for Prices

Comitronic-BTI 3SSR24V Non contact coded safety switches 1NO+1NF with 6m Cable Call for Prices

Comitronic-BTI 3SSR24V Non contact coded safety switches 1NO+1NF with 12m Cable Call for Prices
