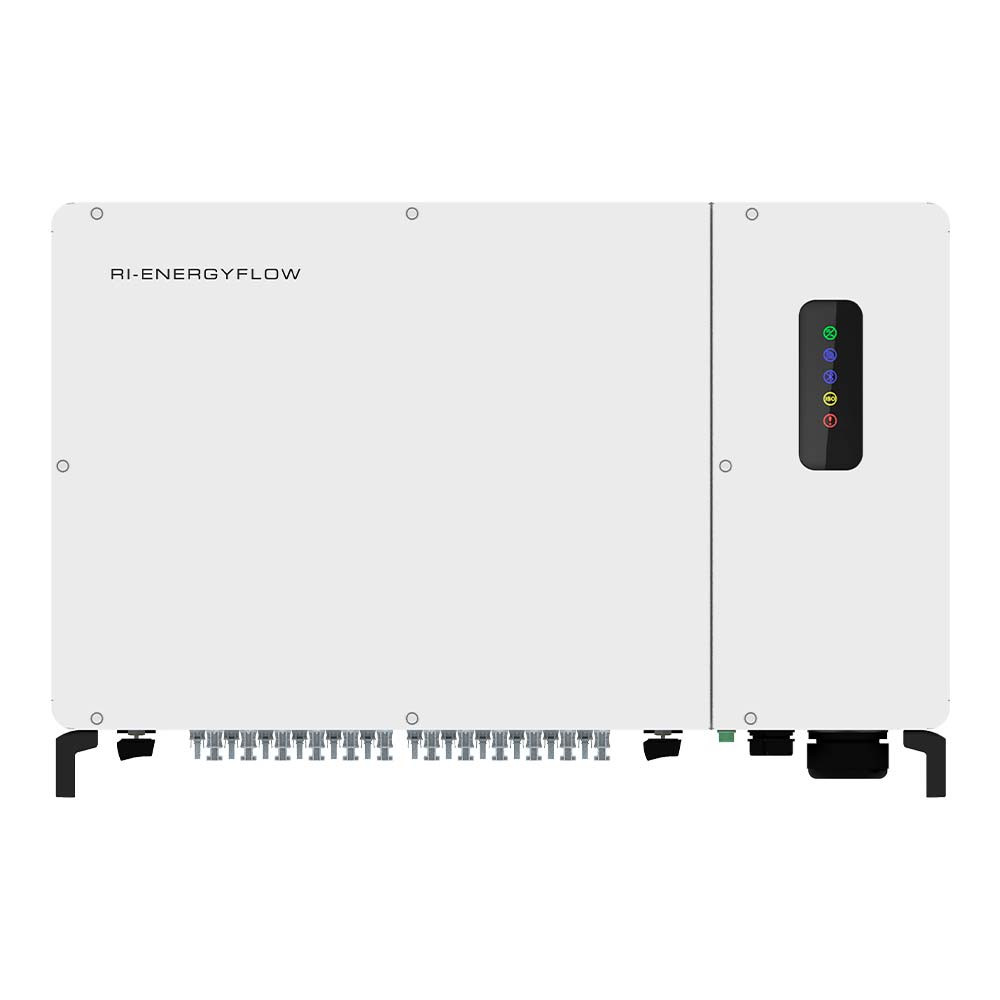

Rayleigh Instruments RI-Energyflow-3P-Series-250 - 3 Phase On-Grid Inverters

Features

  • Available as 200kW and 250kW - Three-Phase, 12 MPPT versions
  • 1500Vdc, 800Vac
  • Remote monitoring
  • Max. DC/AC ratio > 1.5
  • Smart I-V curve function
  • DC & AC Type II SPD
  • AFCI Function (optional)
  • Night SVG Function (Optional)
  • PLC communication
  • IP66 Rated
  • Easy installation
  • G98, G99 and G100 compliant

Details

The RI-ENERGYFLOW-3P-SERIES-250 range forms part of an expanding family of 3-phase On-Grid Inverters from Rayleigh Instruments.

The inverter is available as a 200kW or 250kW version and adopts a 12 MPPT design to provide a more flexible configuration. A 30A maximum input current on each string is suitable for high-power modules for increased power generation.

Additional Information

Manufacturer Rayleigh Instruments
Product Name / Options Price (ex VAT)
Call our Sales Team for Model Options and Prices - 01245 428500 Call for Prices
