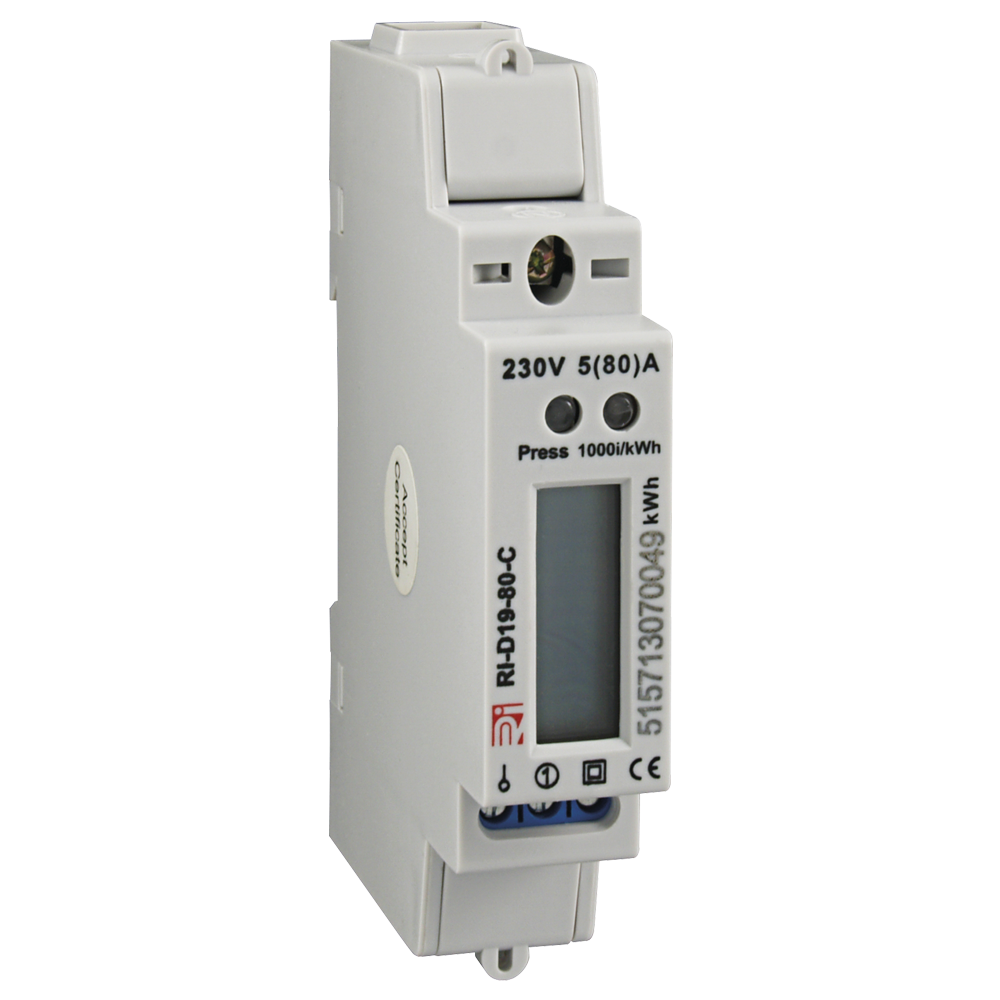

Rayleigh Instruments RI-D19-80-C 80A Single Phase Kilowatt Hour Meter Non MID With RS485 Communications


  • Single phase energy meter
  • Accuracy Class 1
  • 80A Direct connected
  • Counts up regardless of energy direction
  • 19.5mm wide DIN rail mounting
  • LCD display
  • Measured Voltage 230V 50/60Hz
  • With Modbus RS485 output


Rayleigh Instruments RI-D19-80-C is a Class 1, single phase kilowatt hour meter.
The Rayleigh Instruments RI-D19-80-C is a 19.5mm DIN Rail mounted KWh (Kilowatt hour) active energy meter with Modbus RS485 communications.
The Rayleigh Instruments RI-D19-80-C has an input of up to 80A direct input on a 230V 50/60Hz system.



RI-D19-80-C Data Sheet RI-D19-80-C Data Sheet
RI-D19-80-C Instruction Manual RI-D19-80-C Instruction Manual
Product Name / Options Price (ex VAT)
RI-D19-80-C - Single Phase kWh DIN Rail Meter 80A Direct - RS485/Modbus Call for Prices
