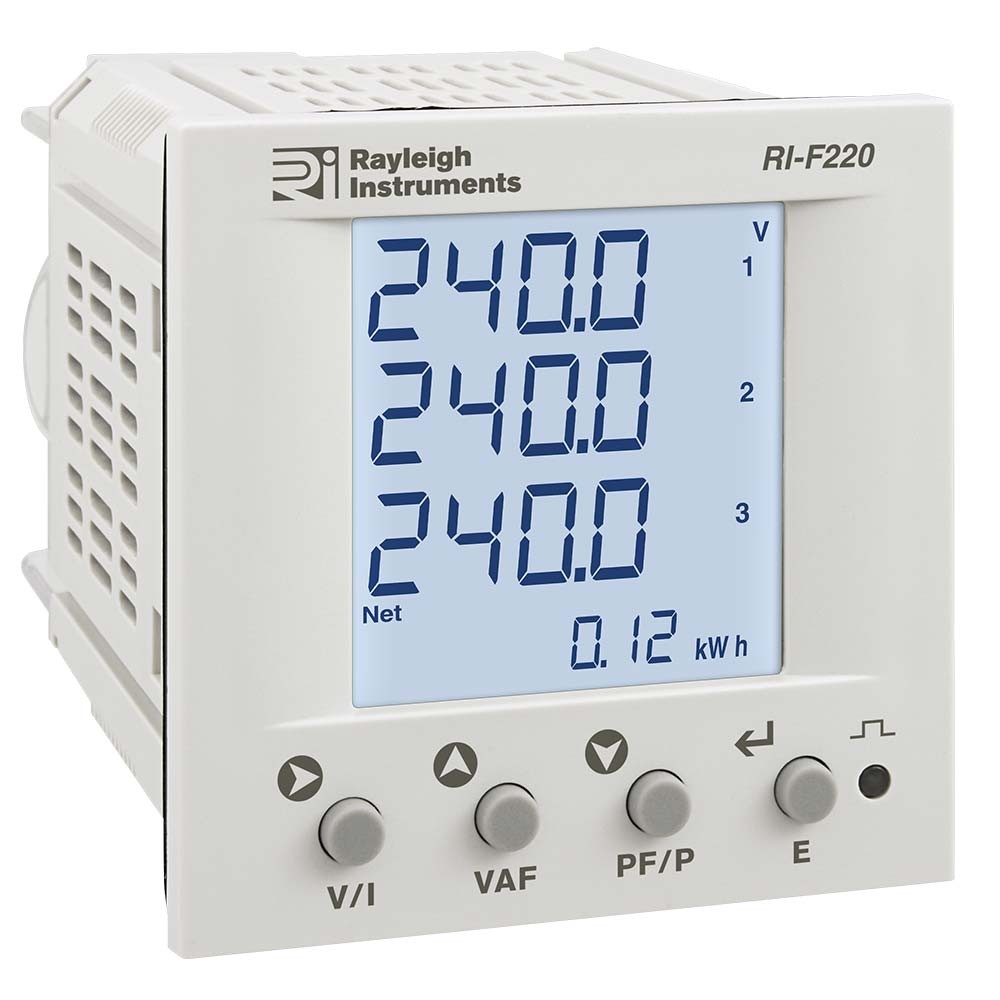

Rayleigh Instruments RI-F220 Series Single Phase and Three Phase Multifunction Energy Meter

Features

  • DIN 72 panel mounted
  • -/1A or -/5A current transformer input
  • Single phase or three phase network compatible
  • Programmable voltage and current transformer ratio
  • True RMS measurement
  • High definition white backlit LCD display
  • Simple programming and operation
  • Pulse output and Modbus communication (Mbus available)
  • Auto and manual page scrolling

Details

The RI-F220 series are a range of DIN 72 panel mounted multifunction energy meters. Suitable for monitoring energy consumption and many other electrical parameters in industrial and commercial applications.

These meters may be used in single or three phase balanced or unbalanced load systems.

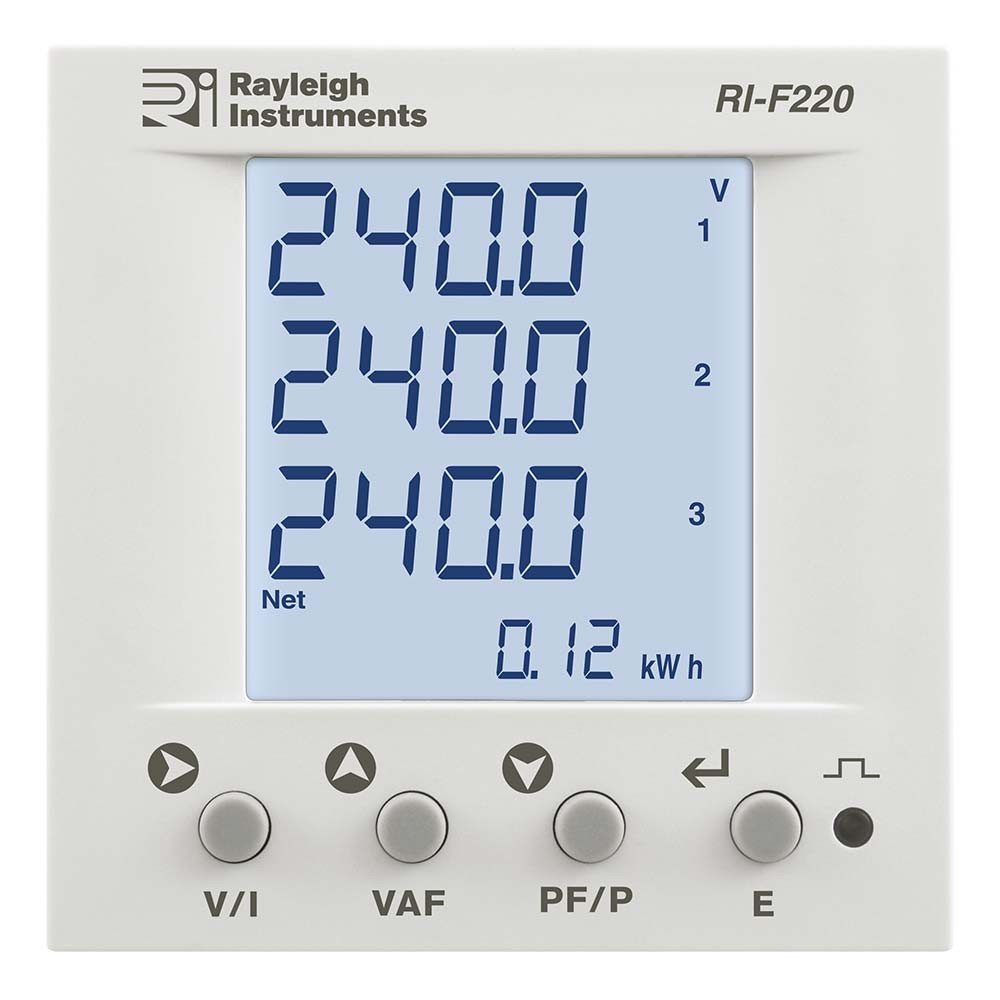

A high efficiency white backlit LCD display provides a clear indication of the measured value in all light conditions. Quick select push-buttons on the front of the meter allow the user fast access to the display page required.

The meter is available in two versions:-
  • With single pulse output.
  • With single pulse output and RS485 Modbus communication

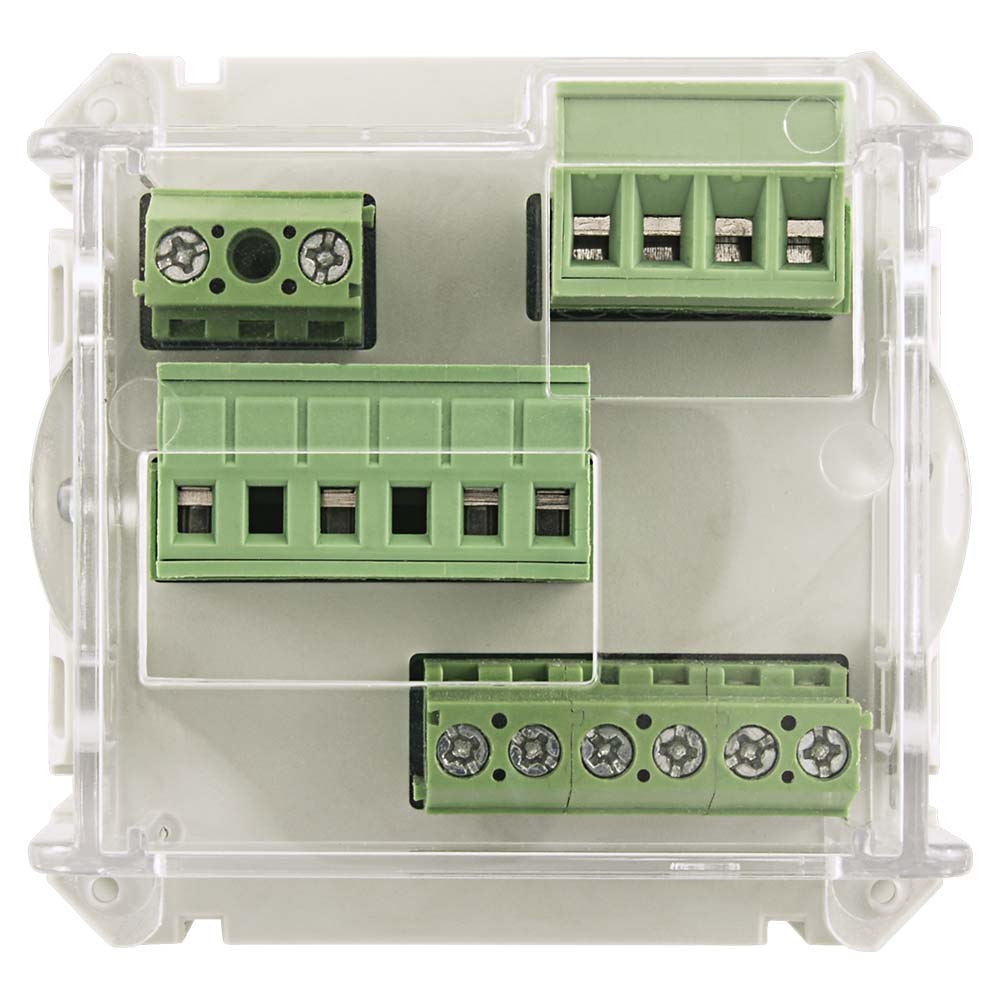

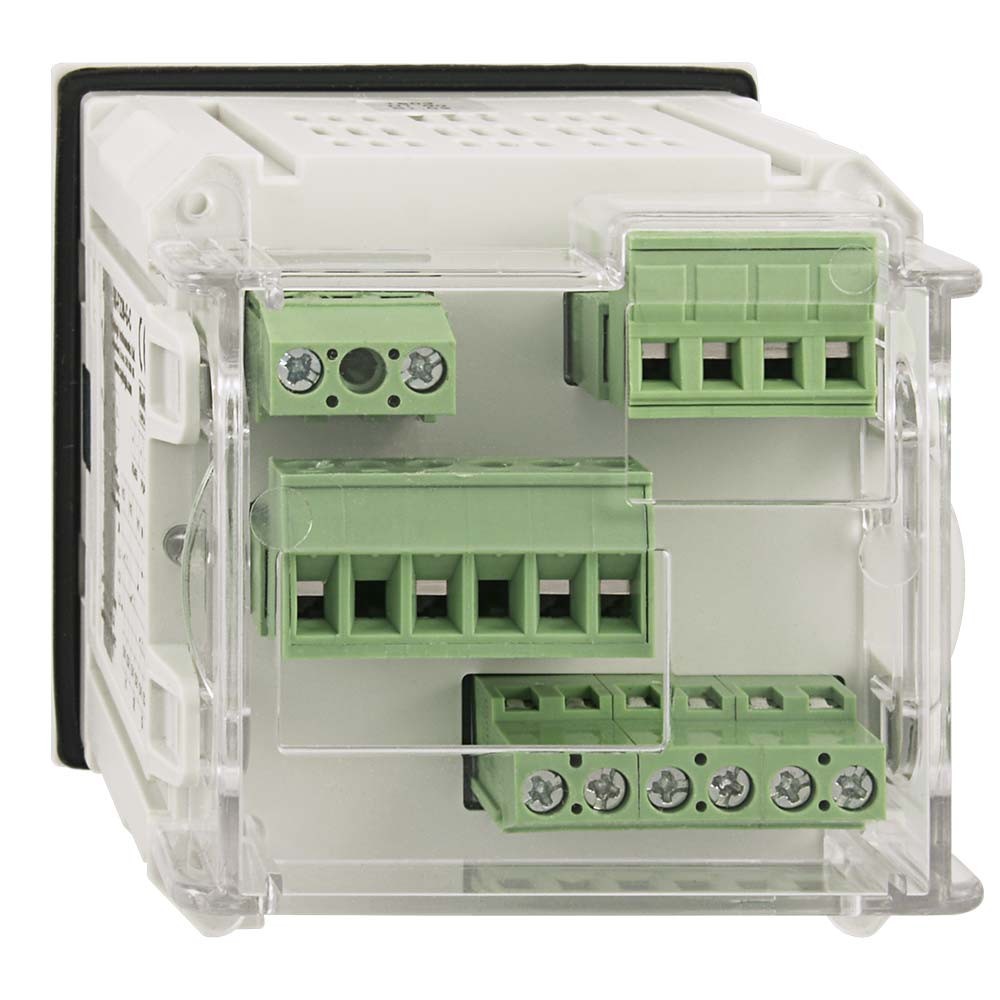

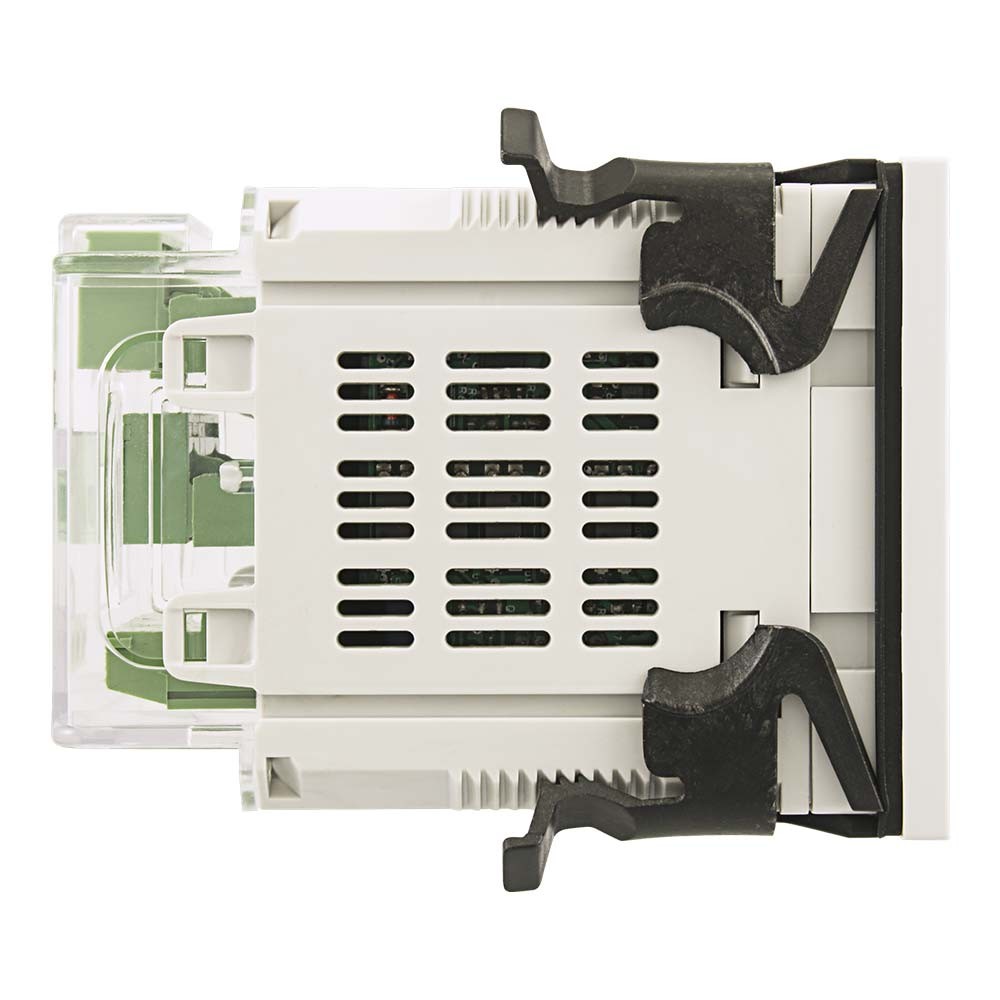

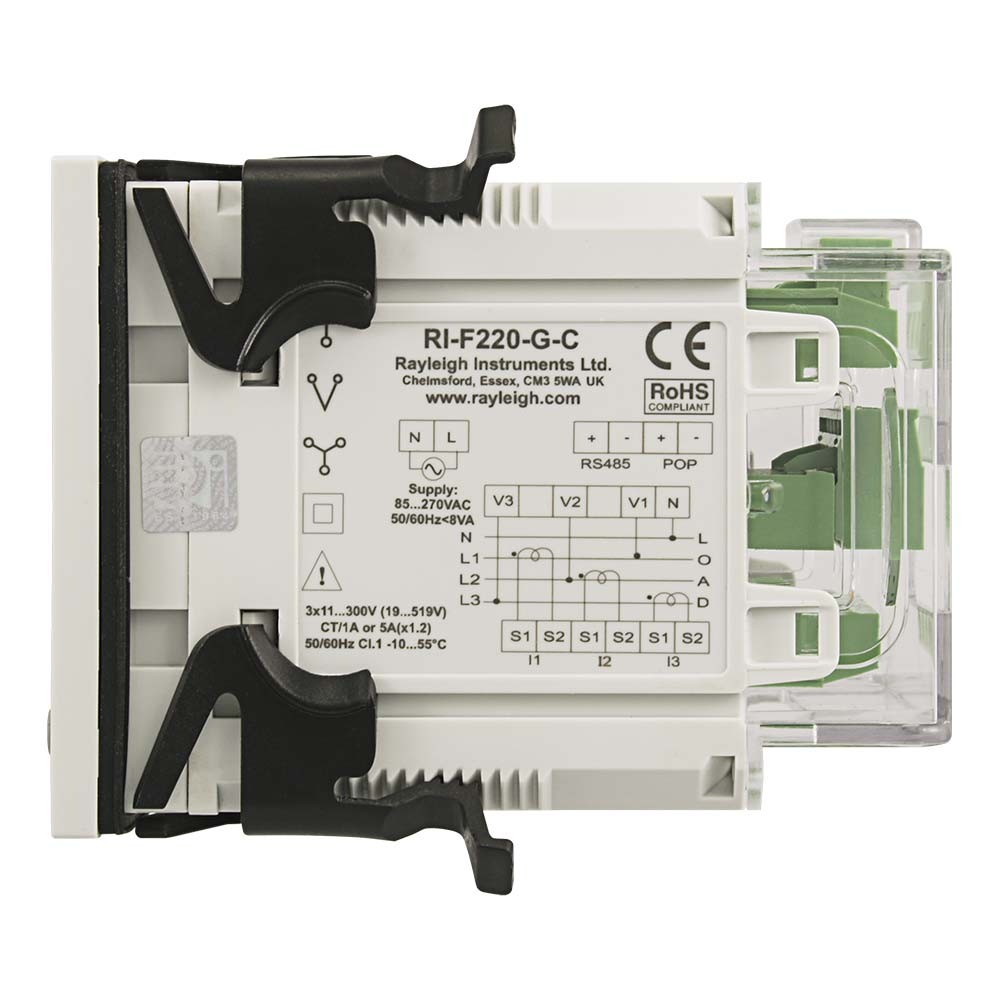

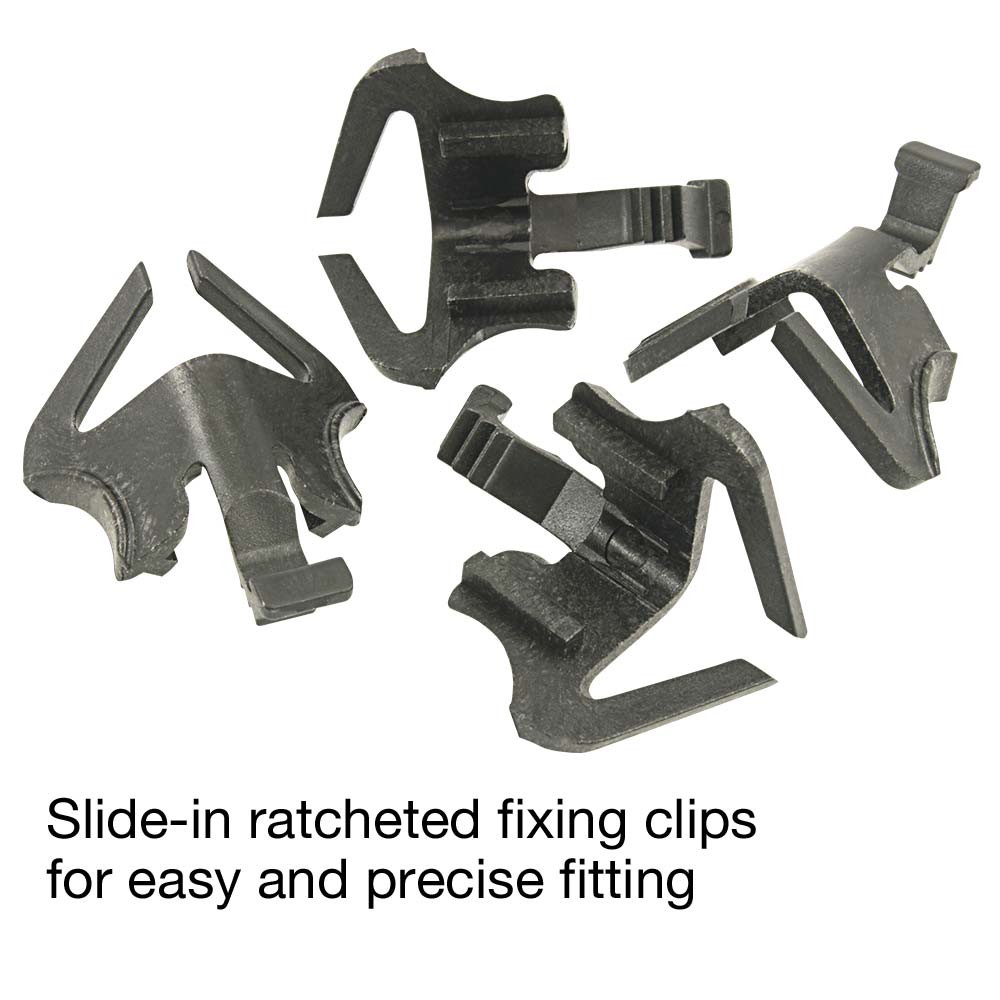

The unit is housed in a compact DIN 72 case suitable for panel mounting

Displayed Parameters
  • Voltage – L-L, L-N and average
  • Current – Phase, total and Max. demand
  • Power Factor – per phase and average
  • Total Harmonic Distortion – Current and Voltage
  • Neutral current (calculated)
  • Frequency
  • Hours Run – Hours & minutes
  • Power – Active, Reactive and Apparent (per phase and total)
  • Power Min./Max. demand – Active, reactive and apparent.
  • Energy – Active, reactive and apparent (per phase and total)
  • Import and export energy – Active, Reactive and Apparent (per phase and total)

Downloads

Product Name / Options Price (ex VAT)
NEW PRODUCT - Model options will be added soon - Call for Details - 01245 428500 Call for Prices
