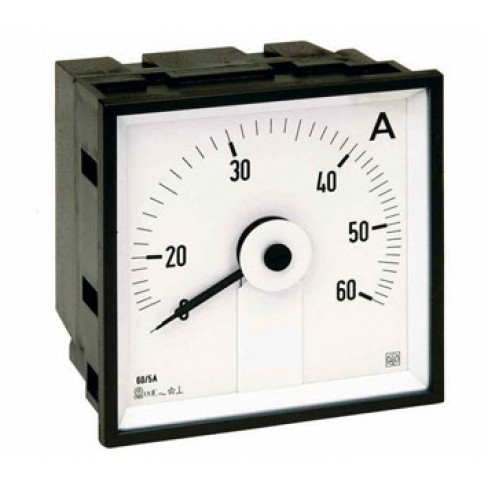

IME AQ96E Single Phase Analogue Ammeter for Alternating Current, 96x96mm, Scale length 240°

Features

  • Direct indication of input current or primary current of external CT
  • Moving iron equipment
  • Direct connection 1...10A
  • Input by external CT /5A or /1A
  • Version for starting motor 2In or 5In
  • Scale length 240°

Details

Direct indication of input current or primary current of external CT Moving iron equipment Direct connection 1...10A Input by external CT /5A or /1A Version for starting motor 2In or 5In Scale length 240° Accuracy class 1,5 DISPLAY Scale: interchangeable, easy-insertion to protect the pointer as well as relevant closing slip Scale colour: white background, black divisions and numbering Customized scales upon request Option: reference red mark Scale length: 240° Standard scale marking: 0...In Motor startup marking scale: 0...In...2In or 0...In...5In Pointer colour: black Option: (adjustable) reference red pointer to store the highest measured value INPUT Quantity: single-phase, alternating current Connection: direct (S 250/122) or by external CT /5A or /1A (S 250/123) Measure: true RMS value Rating current In Direct connection: 1...10A (see table) Connection by CT external: 5A or 1A Continuous overload: 1,2In Instantaneous overload: 10In/5s Rating frequency fn: 50Hz Working frequency: 45..65Hz Accuracy (EN/IEC 60051): class 1,5 Rated burden: ≤ 1,1VA

Additional Information

Manufacturer IME (BTicino)
Product Name / Options Price (ex VAT)
To enquire about this product, please contact our Sales Department on 01245 428500 for a quotation using the order codes shown below Call for Prices
