IME TASQ (formerly TAS125) Single Phase Current Transformer

More Views

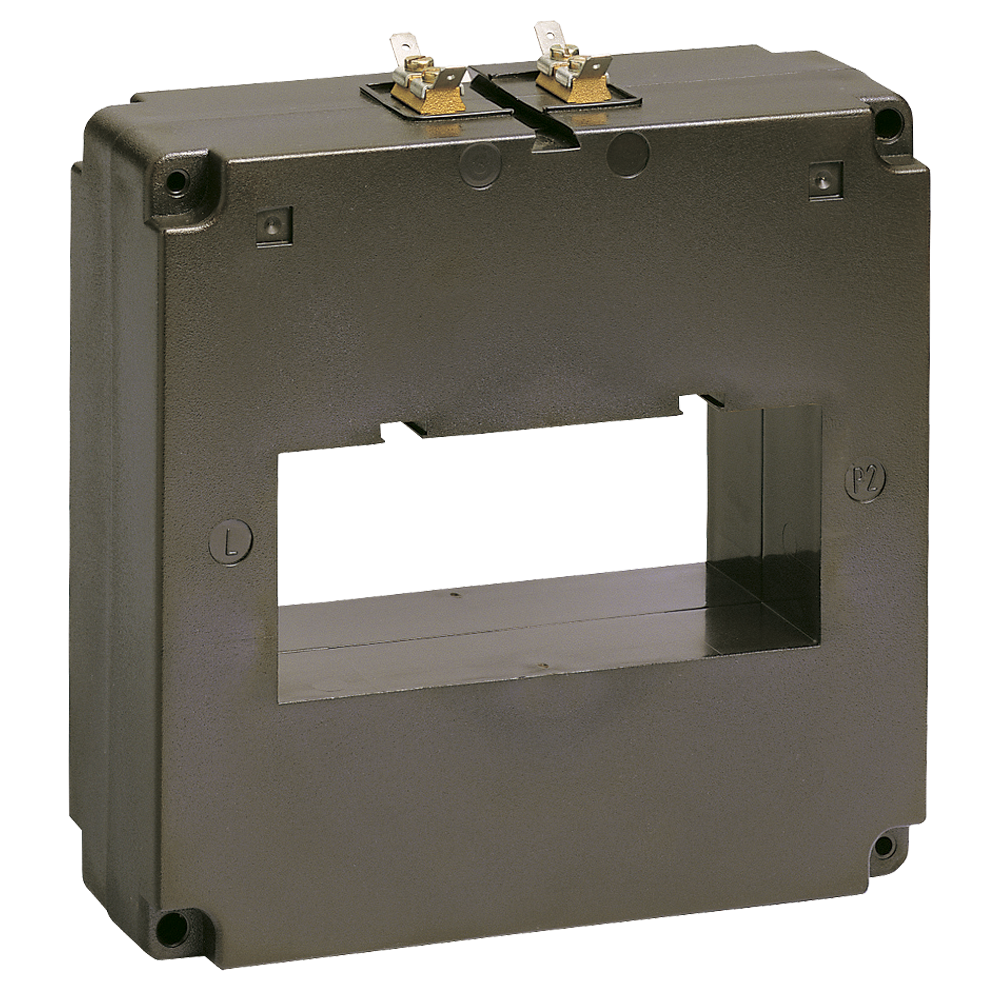

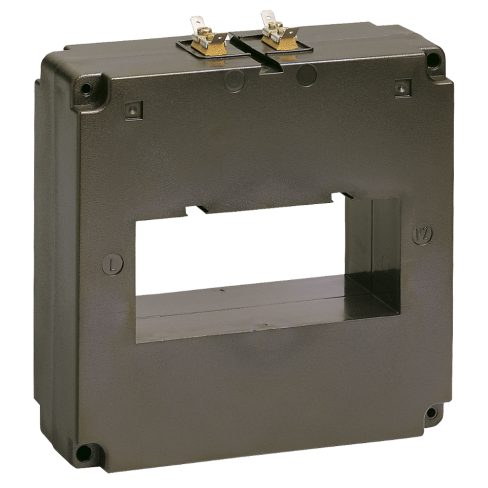

IME TASQ (formerly TAS125) Single Phase Current Transformer

Features

Measuring and protection current transformer (formerly TAS125)
Ranges: 400 to 4000A (1A or 5A Secondary)

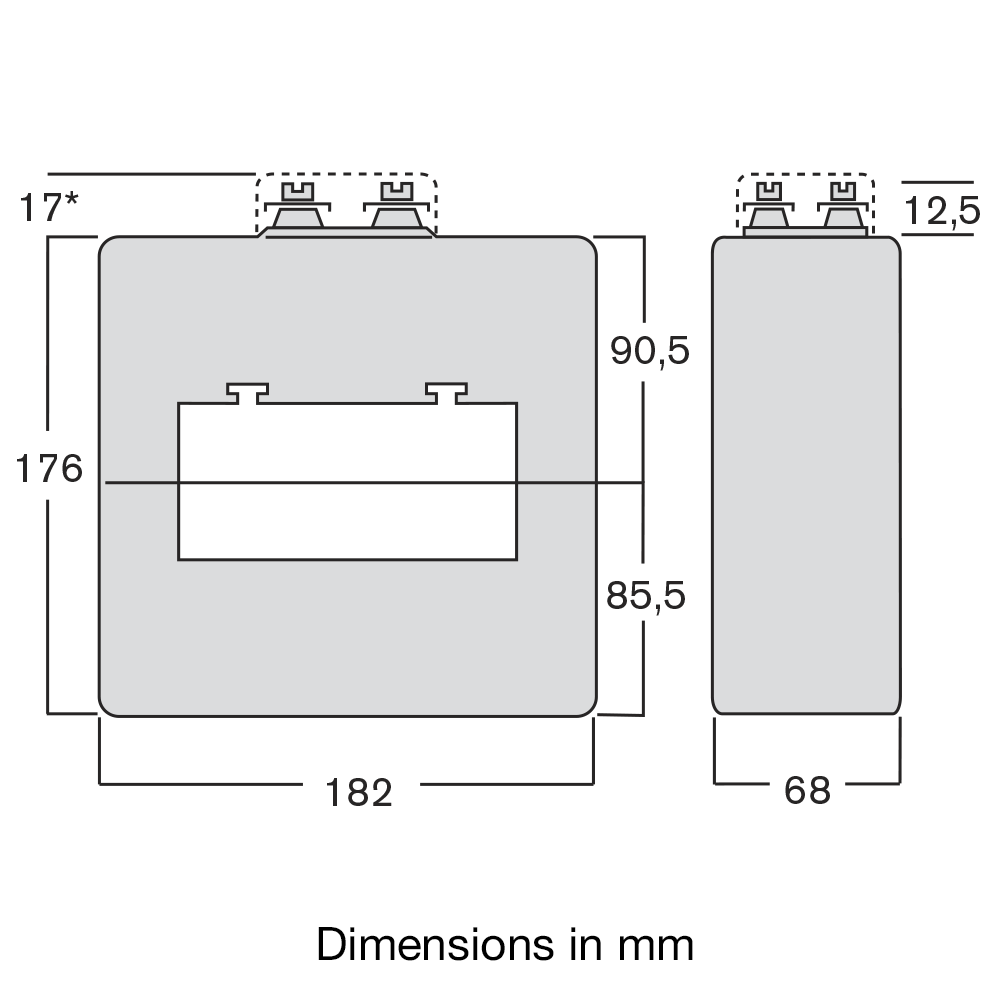

Busbar window 127 x 54mm
Secondary terminals M4 screws and 6.3 x 0.8mm fast-on
Optional sealable terminal cover (ATACOP03)
Weight 1500g

- | Add to Compare

Details

Measuring and protection current transformer supplied with busbar mounting bracket. The TASQ transformer has a 127 x 54mm aperture and is available with primary currents from 400 to 4000A.

Additional Information

Manufacturer	IME (BTicino)

Downloads

Product Name / Options	Price (ex VAT)
TASQ50C400 (400/5A)	Call for Prices
TASQ50C800 (800/5A)	Call for Prices
TASQ50D100 (1000/5A)	Call for Prices
TASQ50D150 (1500/5A)	Call for Prices
TASQ50D200 (2000/5A)	Call for Prices
TASQ50D250 (2500/5A)	Call for Prices
TASQ50D300 (3000/5A)	Call for Prices
TASQ50D400 (4000/5A)	Call for Prices
TASQ10D120 (1200/1A)	Call for Prices
TASQ10D160 (1600/1A)	Call for Prices
TASQ10D200 (2000/1A)	Call for Prices
TASQ10D250 (2500/1A)	Call for Prices
