IME TASI TAS64 Single Core Single Phase Measuring Current Transformer

More Views

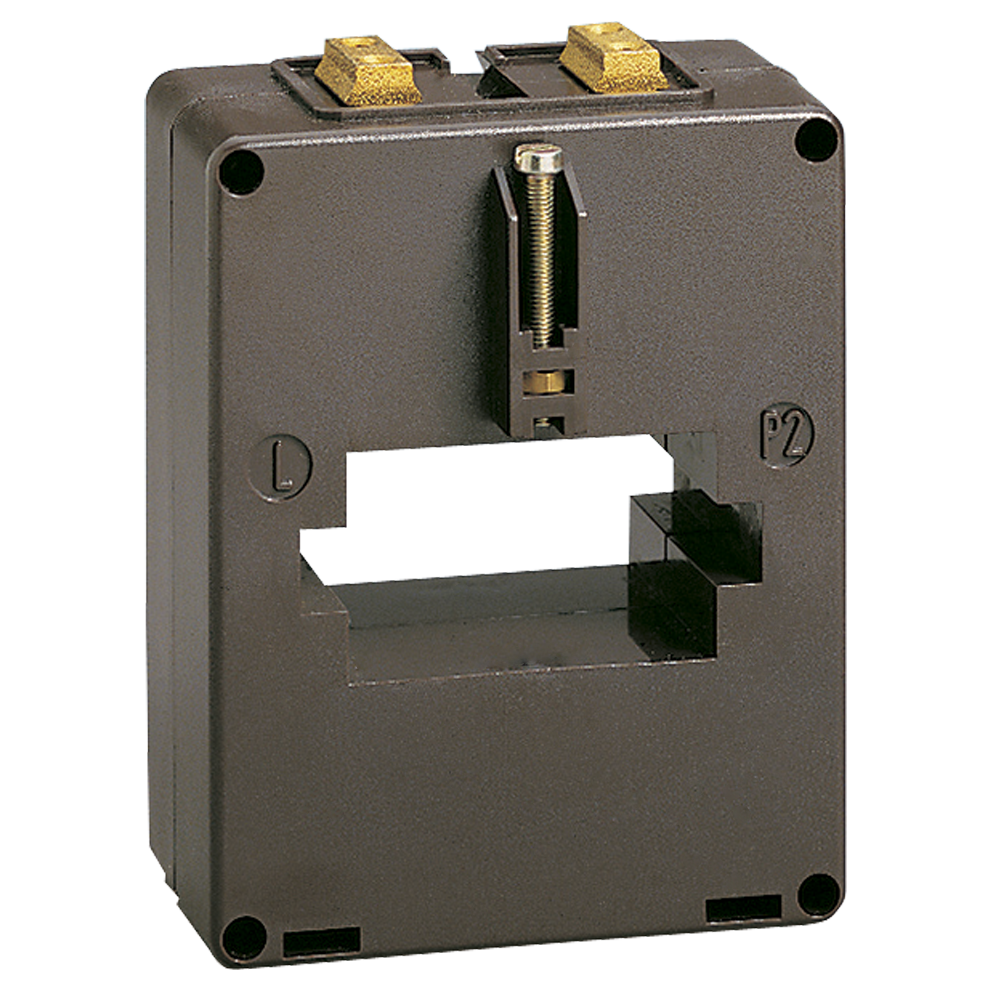

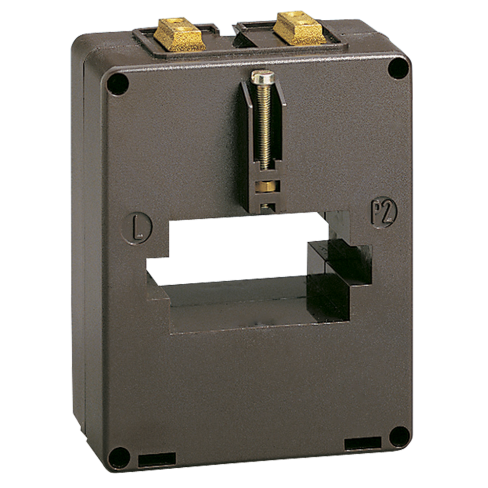

IME TASI TAS64 Single Core Single Phase Measuring Current Transformer

Features

Measuring current transformer (formerly TAS64)
Ranges: 200 to 1600A (1A or 5A Secondary)

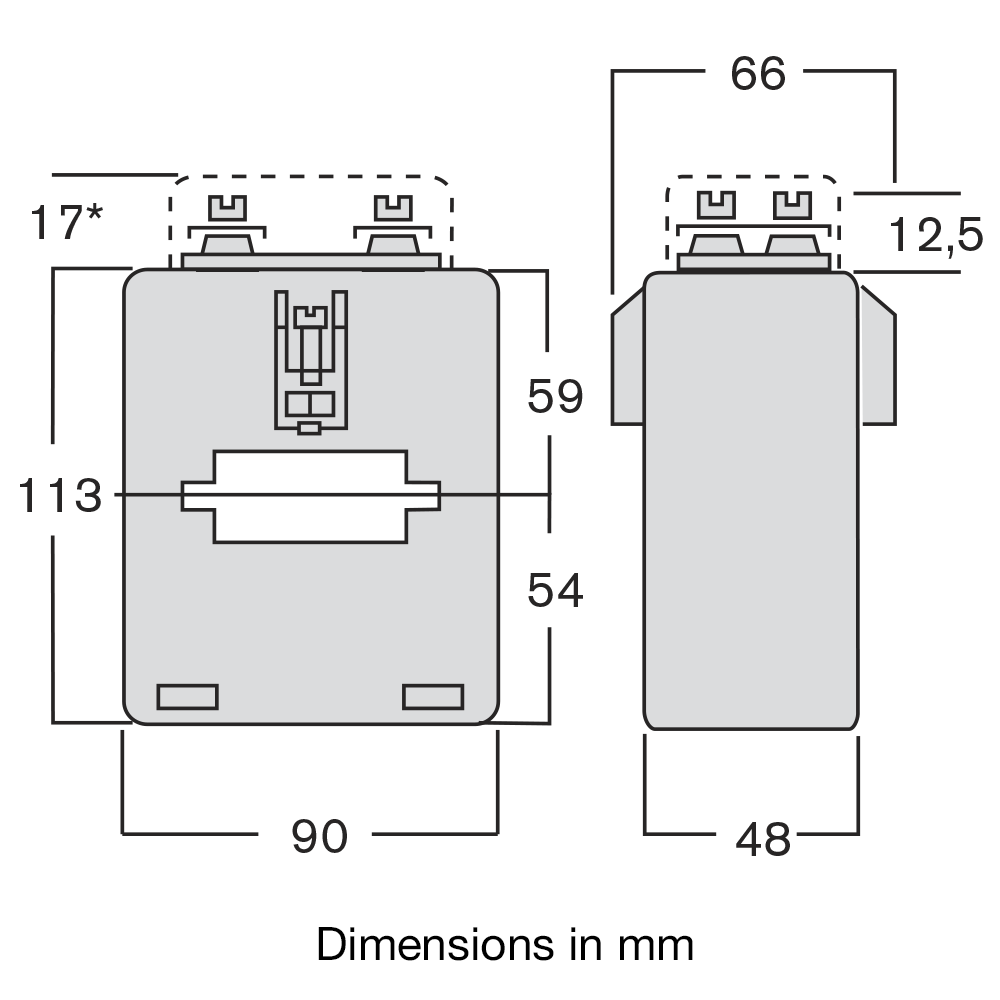

Busbar window 64 x 11mm, 51 x 31mm
Supplied with fixing feet and busbar mounting bracket
Secondary terminals M4 screws and 6.3 x 0.8mm fast-on
Weight 500g

- | Add to Compare

Details

Measuring current transformer supplied with fixing feet and busbar mounting bracket. The TASI current transformer has a 64 x 11mm, 51 x 31mm aperture and is available with primary currents from 250 to 1600A.

Single-phase current transformer
Passing bus bar primary
Primary current 250...1600A
Secondary current 1 - 5A
Accuracy class: cl.0,5 - 1
Rated burden 2...12VA

Additional Information

Manufacturer	IME (BTicino)

Downloads

Files

TASI Data Sheet

TASI Data Sheet NT569-05

Product Name / Options	Price (ex VAT)
TASI50C300 (300/5A)	Call for Prices
TASI50C400 (400/5A)	Call for Prices
TASI50C500 (500/5A)	Call for Prices
TASI50C600 (600/5A)	Call for Prices
TASI50C800 (800/5A)	Call for Prices
TASI50D100 (1000/5A)	Call for Prices
TASI50D120 (1200/5A)	Call for Prices
TASI50D125 (1250/5A)	Call for Prices
TASI50D150 (1500/5A)	Call for Prices
TASI50D160 (1600/5A)	Call for Prices
TASI10C500 (500/1A)	Call for Prices
TASI10C800 (800/1A)	Call for Prices
TASI10D100 (1000/1A)	Call for Prices
TASI10D120 (1200/1A)	Call for Prices
TASI10D150 (1500/1A)	Call for Prices
