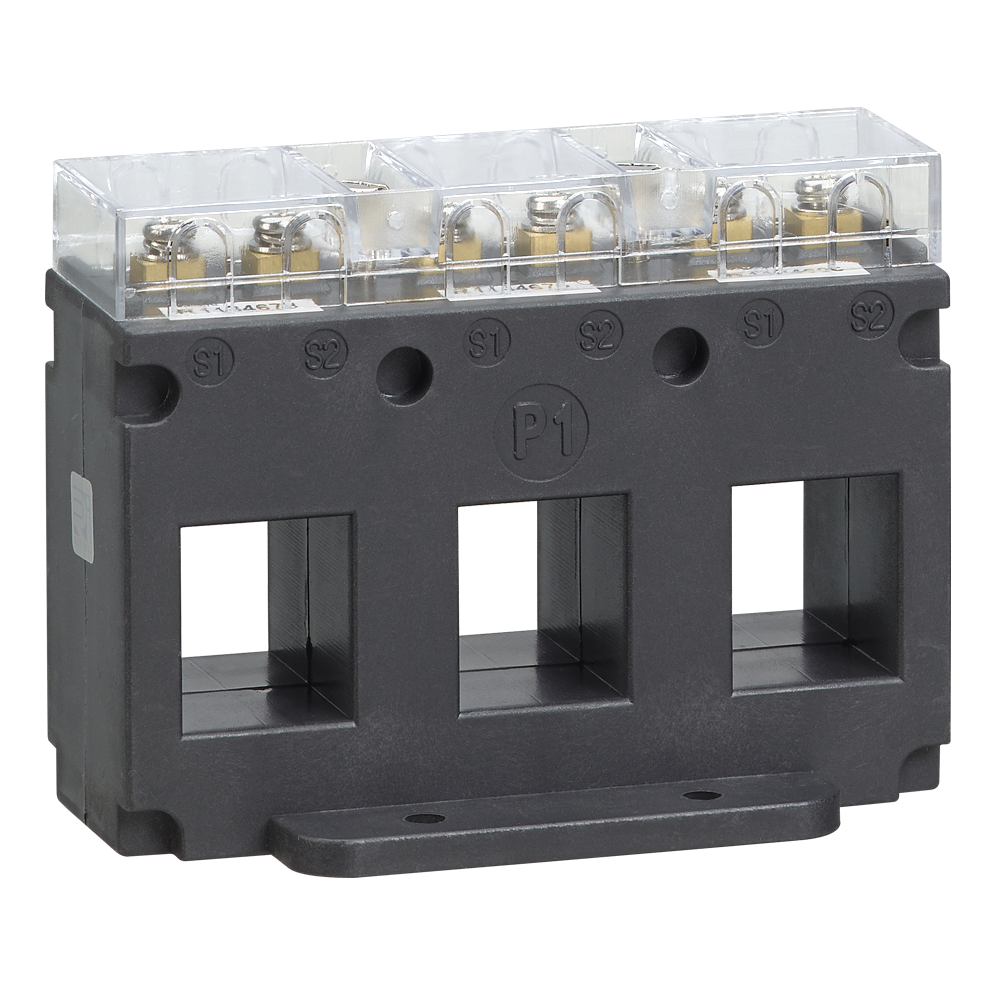

Rayleigh Instruments TAS242 Three Phase Measuring Moulded Case Current Transformers

Features

This product is no longer available - see bottom of page for alternative

  • Three Phase Measuring Current Transformers.
  • Primary Current Range: 60 to 250A
  • Secondard Current Ratios: 5A
  • Cable aperture : 3 @ 21 x 25mm with a 35mm Hole Apeture Centre
  • Class Accuracy: Cl0.5, Cl1 and Cl3

Details

This product is no longer available - see bottom of page for alternative

Three phase moulded case current transformers suitable for primary ranges from 60-250A with 5A secondary. Supplied with terminal cover and integral foot mount.

Application
The products have an overall width of 105mm allowing installation of 105mm allowing installation directly on top of moulded case circuit breakers. They can also be used independently in 3 phase applications.

Technical Specification
  • Reference Standards : EN60044–1
  • Temperature Range : Working –25 to +50˚C, relative humidity 85%
  • Frequency : 47…63Hz (400Hz on request)
  • System Voltage : 720V max.
  • Test Voltage : 3KV for 1 minute
  • Housing Material Self extinguishing Nylon IEC185 classification VO according to UL-94
  • Secondary terminals M4 Screws
  • Sealable terminal cover included
  • Weight : 550g

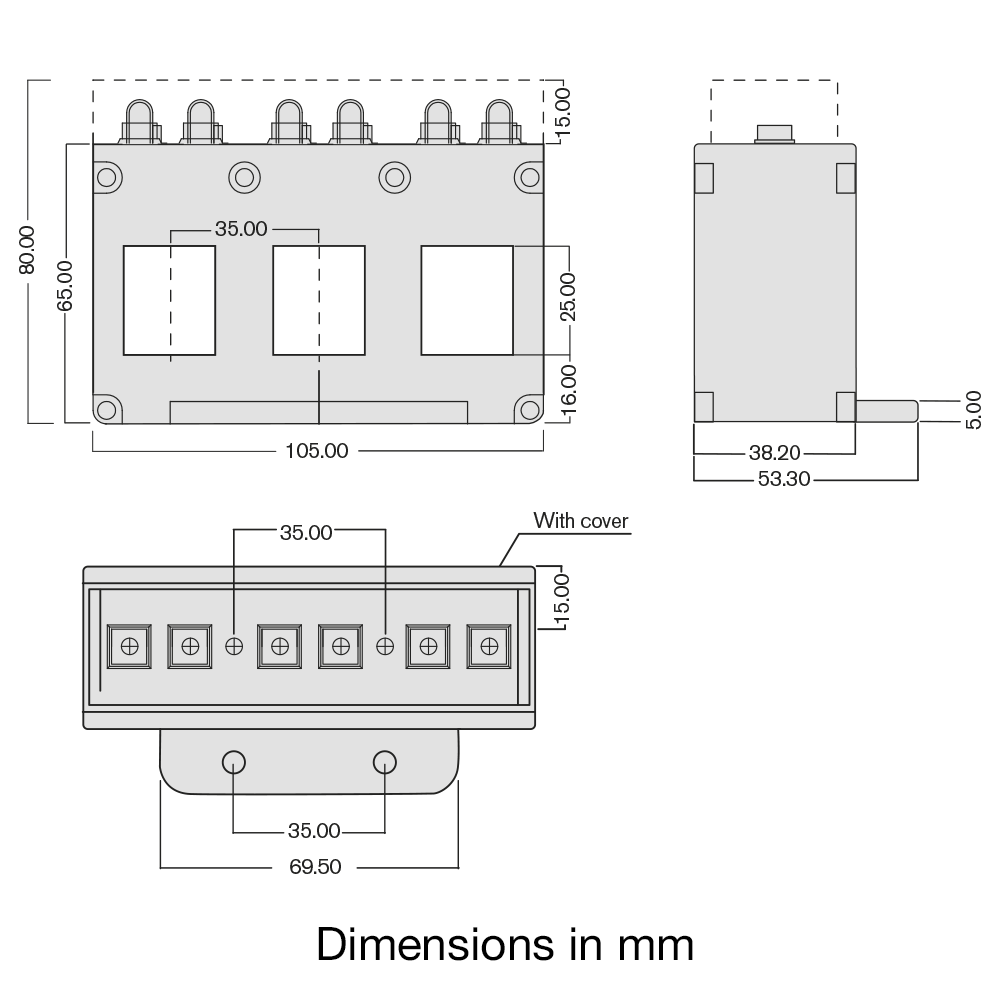

Dimensions

Additional Information

Manufacturer Rayleigh Instruments

Downloads

Product Name / Options Price (ex VAT)
TAS242 - Three Phase Current Transformer - 60 / 5A Call for Prices

TAS242 - Three Phase Current Transformer - 100 / 5A Call for Prices

TAS242 - Three Phase Current Transformer - 120 / 5A Call for Prices

TAS242 - Three Phase Current Transformer - 125 / 5A Call for Prices

TAS242 - Three Phase Current Transformer - 150 / 5A Call for Prices

TAS242 - Three Phase Current Transformer - 160 / 5A Call for Prices

TAS242 - Three Phase Current Transformer - 200 / 5A Call for Prices

TAS242 - Three Phase Current Transformer - 250 / 5A Call for Prices

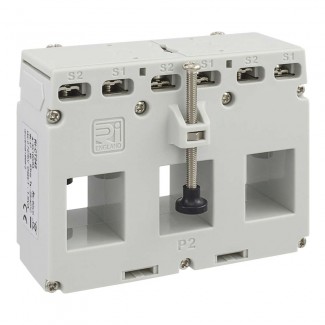

You may also be interested in the following product(s)
