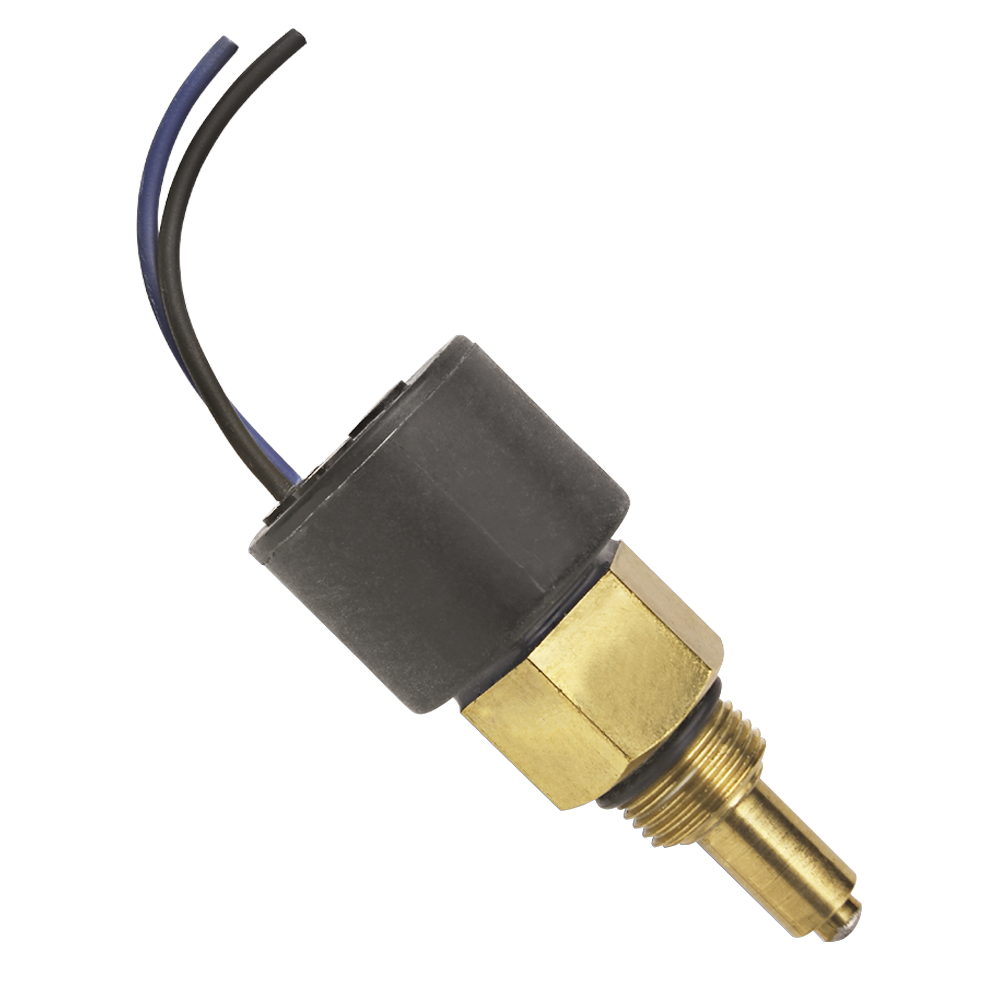

Nason HT Temperature Switch – 4°C to 149°C (40°F to 300°F)

Features

  • Temperature Switch up to 149°C
  • Utilises bellows mechanism to sense temperature
  • High quality snap action switch
  • Factory Preset
  • Available in a wide range of configurations
  • Shock and vibration resistant
  • NEMA 4, 13

Details

Nason’s line of temperature switches offers you three different thermostat design technologies: snap disc, bi-metal and bellows. Our model TT is a bi-metal immersion temperature switch for low-voltage applications.

Our model TD is a snap-disc design with a micro-switch for high reliability in shock and vibration applications.

The TM and HT models are both bellows design with micro-switch accuracy. These two are even more robust for shock and vibration applications.

All models are available in NEMA 4 and 13 configurations and each switch is tested for 100% temperature accuracy.

Additional Information

Manufacturer Nason
Product Name / Options Price (ex VAT)
To enquire about this product, please contact our Sales Department on 01245 428500 for a quotation using the order codes shown below Call for Prices
