Rayleigh Instruments RI-F300 easywire Multifunction Meter - MID Certified

Features

  • DIN 96 panel mounted

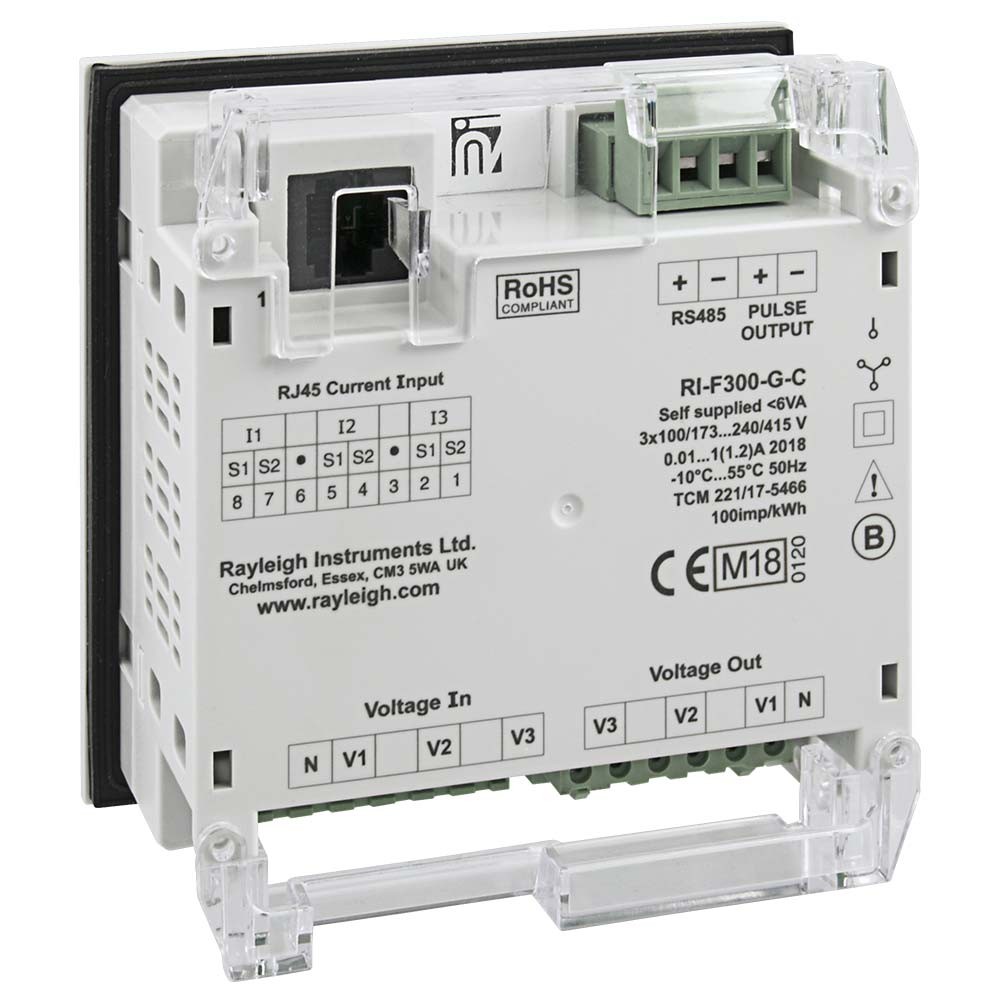

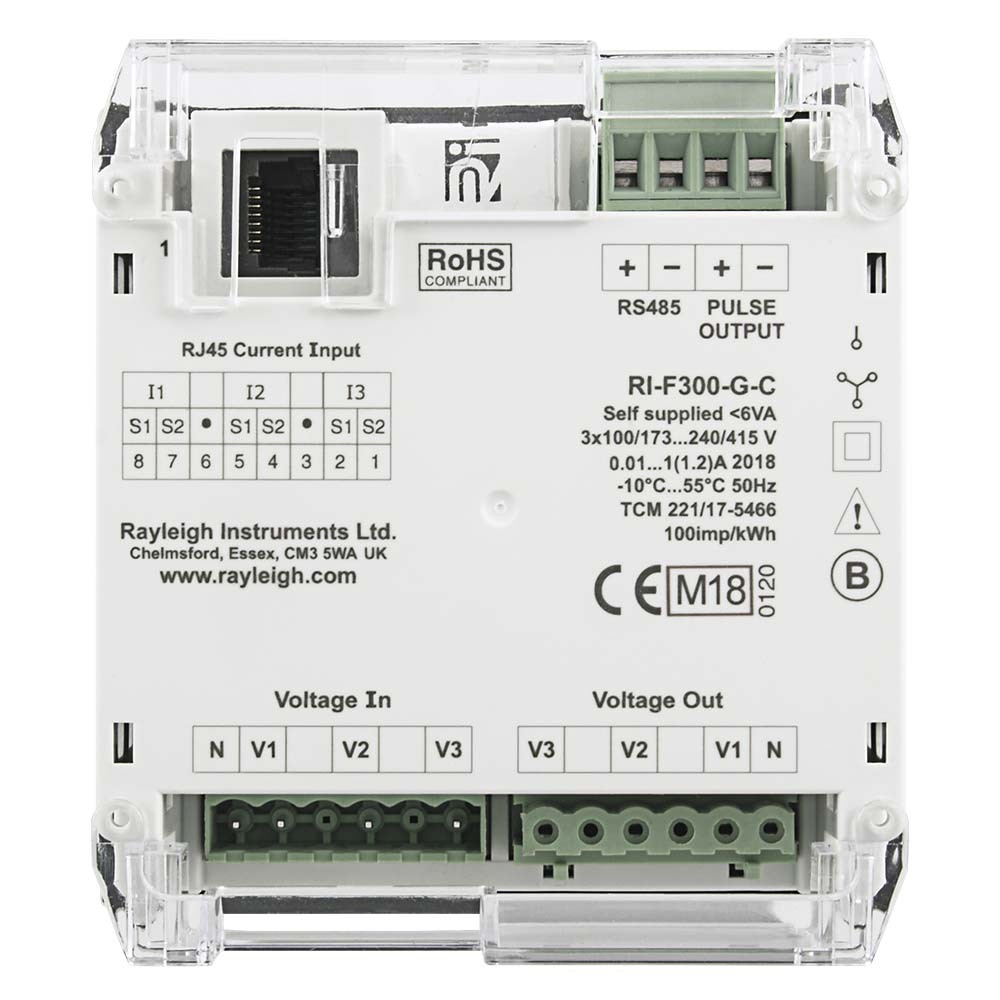

  • 1A Input from easywire® CTs
  • Single phase or three phase network compatible
  • Programmable voltage and current transformer ratio
  • True RMS measurement
  • MID B+D Certified (Cert. No. : TCM 221/17-546)
  • High definition white backlit LCD display
  • Simple programming & operation (auto or manual page scroll)
  • Pulse output, Modbus and Mbus communication options
  • Auto or manual page scrolling
  • Daisy chaining up to 32 meters from one supply

Details

The RI-F300 is part of the easywire® family of meters.

The easywire® system has been designed to save up to 90% installation time compared to a standard meter and current transformer installation.

These MID approved multifunction energy meters are suitable for monitoring energy consumption and many other electrical parameters in industrial and commercial applications. These meters may be used in single or three phase applications.

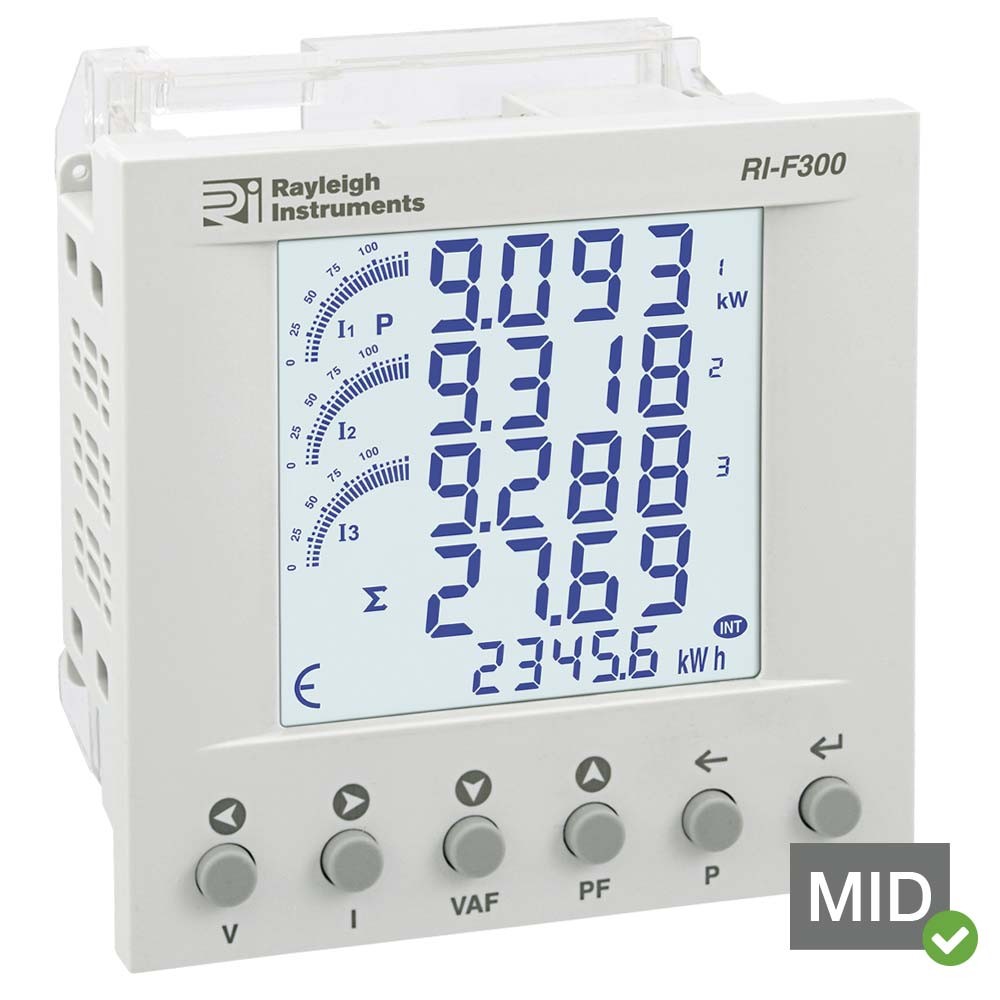

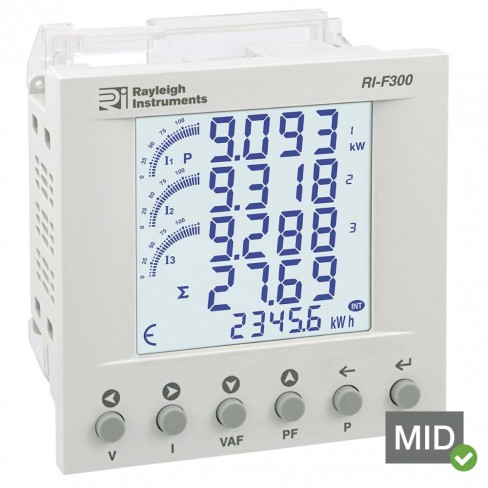

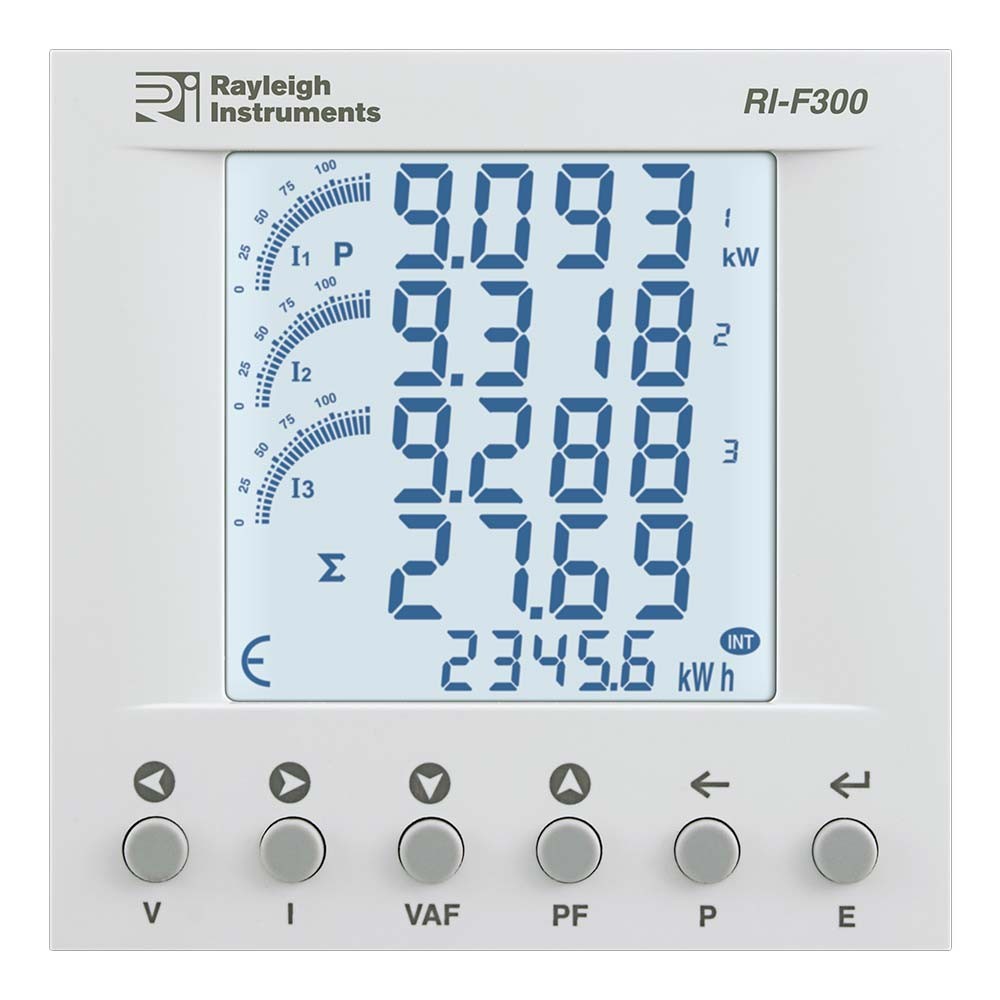

A high efficiency white backlit LCD display provides clear indication of measured values in all light conditions. Quick select push-buttons on the front of the meter allow the user fast access to the display page required.

The meter is currently available in two versions:-
  • With single pulse output.
  • With single pulse output and RS485 Modbus communication (Single pulse output and Mbus communication coming soon).

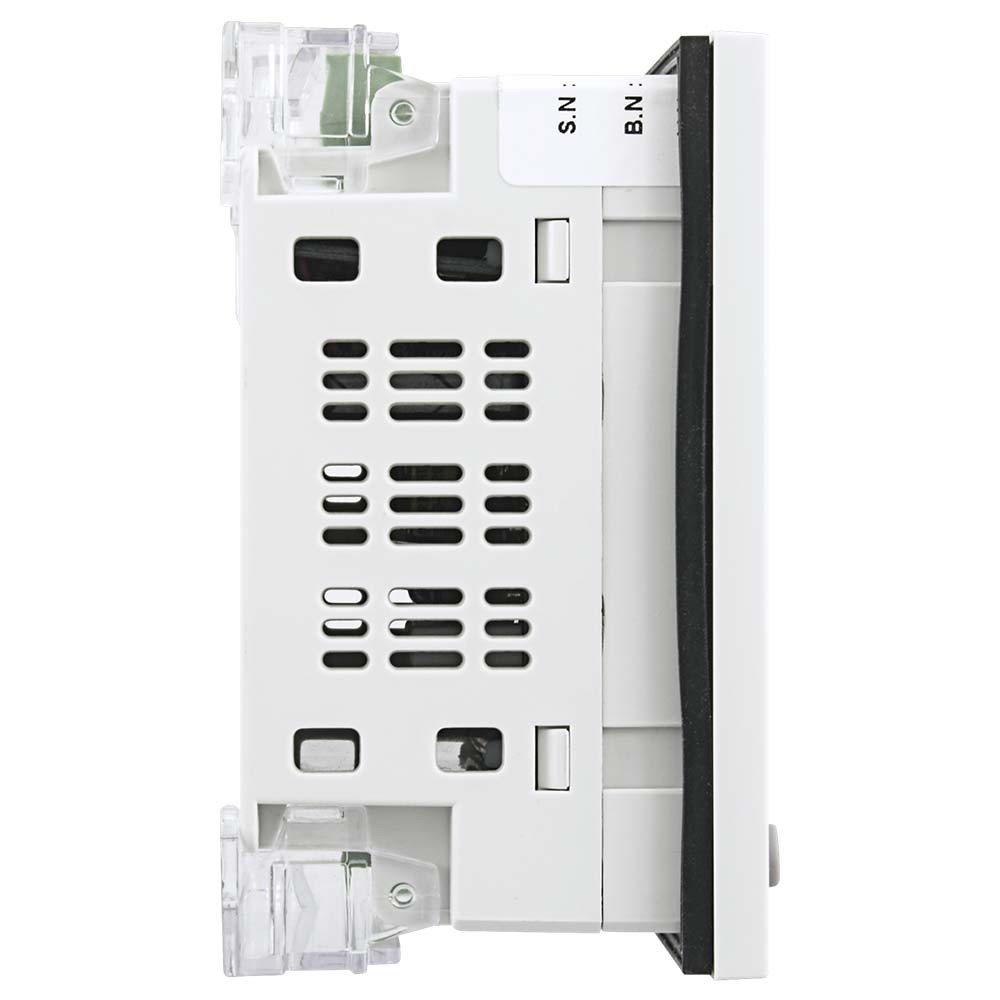

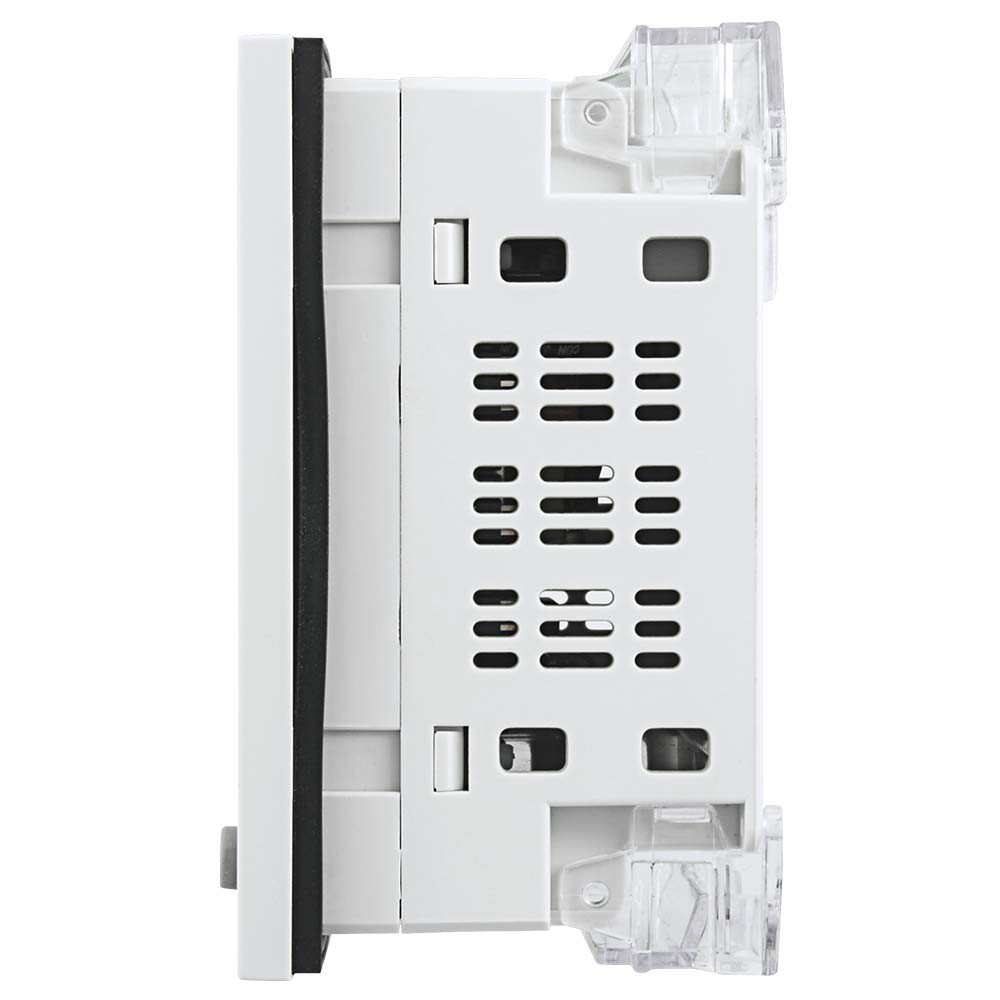

The unit is housed in a compact DIN 96 case suitable for panel mounting.

Displayed Parameters
  • Voltage – L-L, L-N and average
  • Current – Phase, total and Max.demand
  • Power Factor – per phase and average
  • Total Harmonic Distortion – Current and Voltage
  • Neutral current (calculated)
  • Frequency
  • Hours Run – Hours & minutes
  • Power – Active, Reactive and Apparent (per phase and total)
  • Power Min./Max. demand – Active, reactive and apparent.
  • Energy – Active, reactive and apparent (per phase and total)
  • Import and export energy – Active, Reactive and Apparent (per phase and total)

Video

Downloads

Product Name / Options Price (ex VAT)
NEW PRODUCT - Model options will be added soon - Call for Details - 01245 428500 Call for Prices
