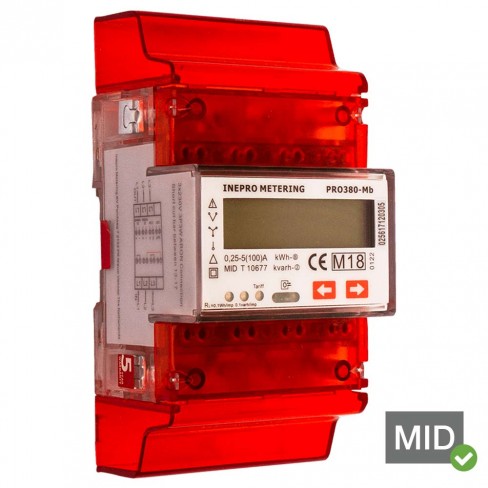

Inepro PRO380-MB 100A MID Certified Dual Tariff Single and Three Phase Network Multifunction Meter With Pulse Output and MBus

Features

  • Single and Three phase network active energy meter
  • Conforms & Certified to MID B and D approval
  • 100A Direct connected
  • Dual Tariff
  • 70mm wide/4 Module
  • Din Rail Mounted
  • LCD Display 5+2= 99999.99
  • Measured voltage 230V 50 Hz
  • Calculation of total energy : Forward, Forward+Reverse, Forward-Reverse, Reverse-Forward, Reverse
  • Pulse S0 is settable
  • Pulse output rate : 10.000, 2.000, 1.000, 100, 10, 1, 0.1 or 0.01 imp/kWh
  • Integrated Communication Protocols are pulse output and Mbus

Details

The PRO380 CT series is a range of 4 module, three phase CT smart Energy Meters consisting of 3 different types each with their specific characteristics. They have an exceptional combination of a high accuracy class (1/B) and a broad temperature range of -25°C…+45°C. The PRO380 series is available as a standard version (with a selectable S0 output) and also as a Modbus or M-bus version. It can communicate and be programmed via an infra-red input. The different communication modes have over 60 variables like kWh, active and reactive energy, forward and reverse energy as well as Cos phi. The PRO380 smart energy meter is equipped with a resettable day counter and the total energy usage can be calculated via 5 different modes. You can program the CT ratio at your convenience.



Technical specifications
Height with protection cover : 140mm
Height without protection cover : 92.4mm
Width : 70mm
Depth : 63mm
Mounting : DIN rail
Active energy : ±1%
Starting current : 0.05Ib
Impulse S0 duration : T-on: 45ms T-off: 270ms T-t: 140us
Operating humidity : ≤75%
Storage humidity : ≤95%
Operating temperature : -25°…+55°C
Storage temperature : -30°…+70°C
Nominal Voltage (Un) : 230/400V AC
Operational Voltage : 3 x 230/400V ±20%
AC Voltage withstand for 1 min : 4KV
Impulse voltage 1.2uS Waveform : 6KV
Basic current (Ib) : 1.5A
Max current (Imax) : 6A
Operational current range : 0.4%Ib~Imax
Over current withstand : 30Imax for 0.01s
Operational frequency range : 45-60Hz
Int. power consumption : ≤2W/Phase - ≤10VA/Phase
Basic error : standard
International standard / protocol : EN50470-3
IP protection : 51
Protective class : II
Calculation of total energy : Forward, Forward+Reverse, Forward-Reverse, Reverse-Forward, Reverse

Please note :-
All PRO380-series meters are capable to be read out and configured by IR. The standard used is IRDA (IEC62056-21:2002 (IEC1107)).
IR converter and accompanying software are sold separately

Additional Information

Manufacturer Inepro
Product Name / Options Price (ex VAT)
Inepro PRO380-MB 100A Directly Connected, Dual Tariff Meter with Integrated Pulsed Output & Mbus Call for Prices
