  • IME TAQ6M Single Phase Winding Primary Current Transformer

More Views

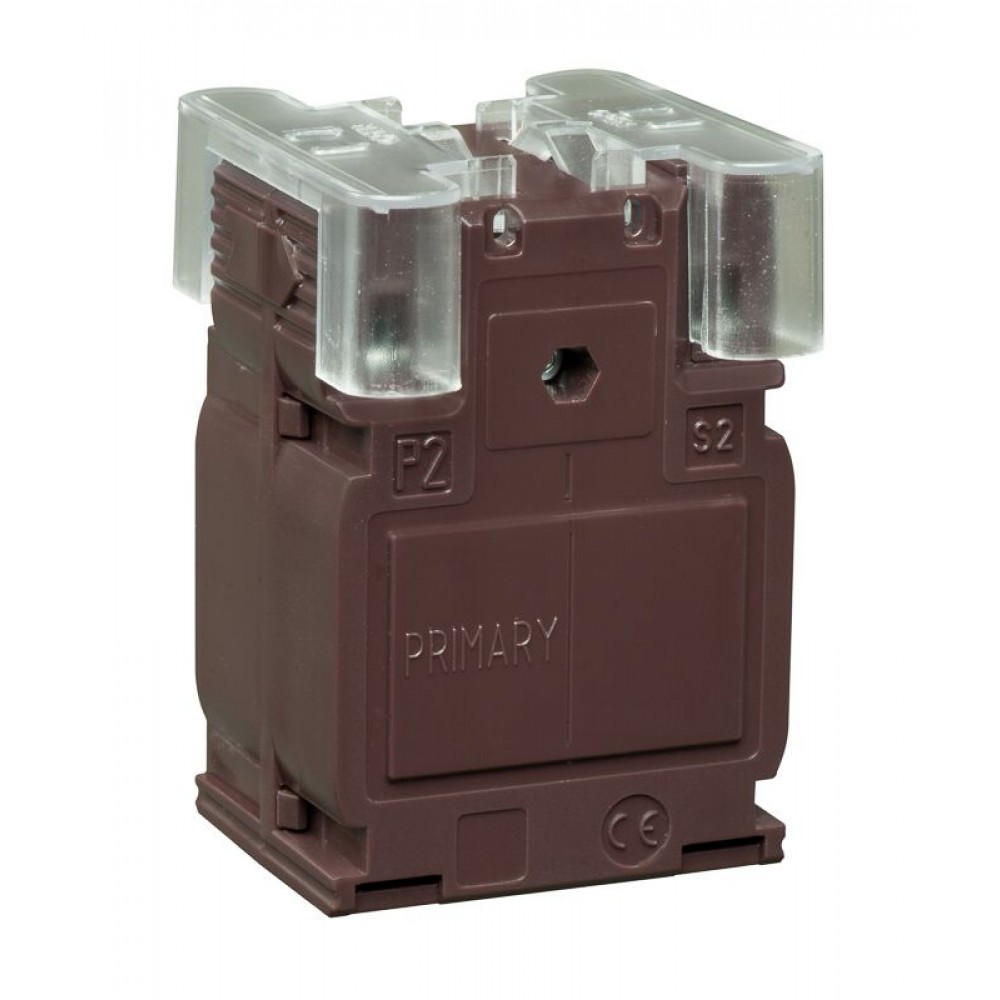

IME TAQ6M Single Phase Winding Primary Current Transformer

Features

  • Single Phase Current Transformer
  • Wound Primary
  • Primary current 5...40A
  • Accuracy class: cl.0,5 - 1
  • Weight 250 grams

Details

Single-phase current transformer Wound primary Primary current 5...40A Secondary current 1 - 5A Accuracy class: cl.0,5 - 1 Rated burden: 6VA (cl.0,5) 7,5VA (cl.1) HOUSING Housing material: self extinguishing polycarbonate Protection degree (EN60529): IP40 housing - IP20 terminals Option: sealable terminal cover Mounting: snap-on 35mm rail, screw type for wall mounting Rail type: top hat TH35-15 (EN60715) Weight: 250 grams (Max.) CONNECTIONS PRIMARY 2 screw terminals (max. cable section 6mm2 , 10mm2 cable with lag) SECONDARY 2 screw terminals (max. cable section 6mm2, 10mm2 cable with lag) Connections label: primary winding P1 – P2 secondary winding s1 – s2 DIMENSIONS

Additional Information

Manufacturer IME (BTicino)

Downloads

Product Name / Options Price (ex VAT)
IME TAQ6M TAQ6M50A500 Wound Primary Winding Single Phase Current Transformer 5/5A Call for Prices
IME TAQ6M TAQ6M50B100 Wound Primary Winding Single Phase Current Transformer 10/5A Call for Prices
IME TAQ6M TAQ6M50B150 Wound Primary Winding Single Phase Current Transformer 15/5A Call for Prices
IME TAQ6M TAQ6M50B200 Wound Primary Winding Single Phase Current Transformer 20/5A Call for Prices
IME TAQ6M TAQ6M50B250 Wound Primary Winding Single Phase Current Transformer 25/5A Call for Prices
IME TAQ6M TAQ6M50B300 Wound Primary Winding Single Phase Current Transformer 30/5A Call for Prices
IME TAQ6M TAQ6M50B400 Wound Primary Winding Single Phase Current Transformer 40/5A Call for Prices
IME TAQ6M TAQ6M10A500 Wound Primary Winding Single Phase Current Transformer 5/1A Call for Prices
IME TAQ6M TAQ6M10B100 Wound Primary Winding Single Phase Current Transformer 10/1A Call for Prices
IME TAQ6M TAQ6M10B150 Wound Primary Winding Single Phase Current Transformer 15/1A Call for Prices
IME TAQ6M TAQ6M10B200 Wound Primary Winding Single Phase Current Transformer 20/1A Call for Prices
IME TAQ6M TAQ6M10B250 Wound Primary Winding Single Phase Current Transformer 25/1A Call for Prices
IME TAQ6M TAQ6M10B300 Wound Primary Winding Single Phase Current Transformer 30/1A Call for Prices
IME TAQ6M TAQ6M10B400 Wound Primary Winding Single Phase Current Transformer 40/1A Call for Prices
