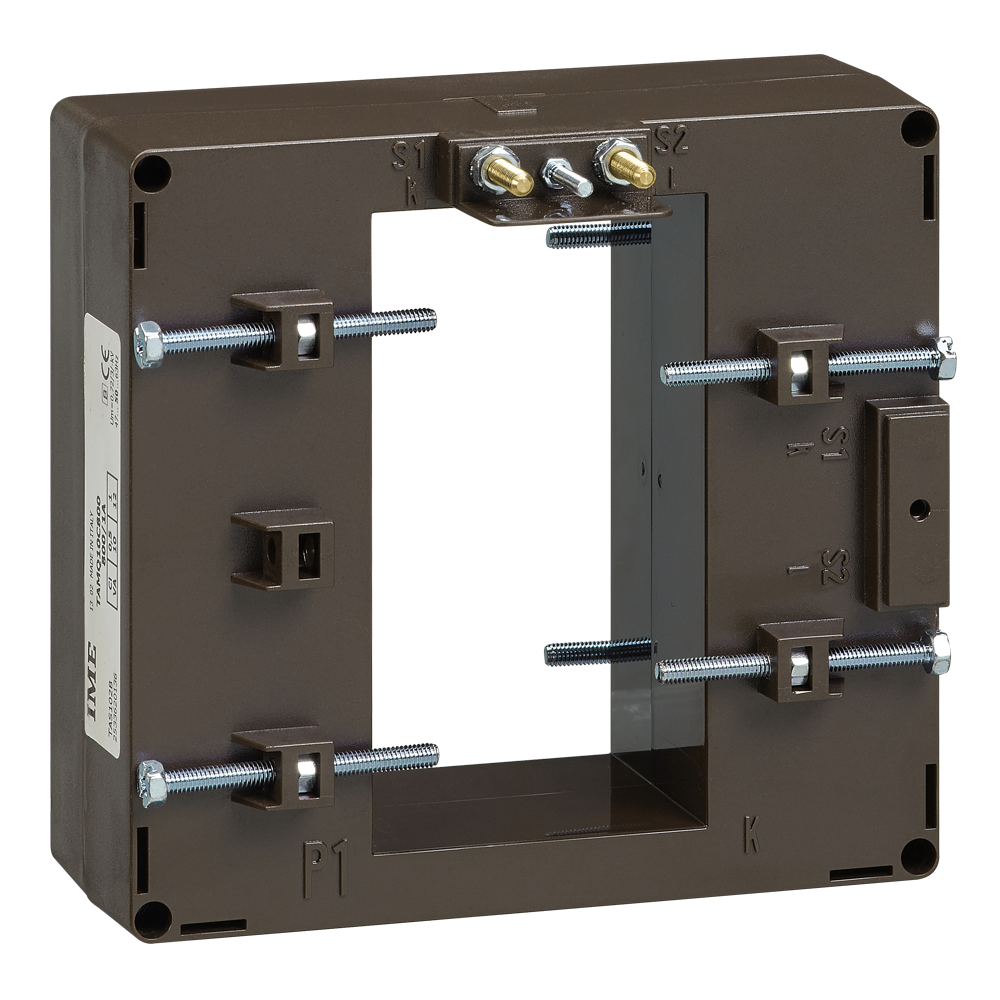

IME TAMQ TAS102B Single Phase Measuring Current Transformer

Features

  • Primary current 800...4000A
  • Secondary current 1 - 5A
  • Busbar window 102 x 54mm
  • Accuracy class: cl.0,5 - 1

Details

Single-phase current transformer Passing bus bar primary Primary current 800...4000A Secondary current 1 - 5A Accuracy class: cl.0,5 - 1 Rated burden 10...40VA HOUSING Housing material: self extinguishing polycarbonate Fixing: screw type on bar Max. tightening torque for passing primary bar fixing screws: 0,2Nm Option: screw fixing accessories for wall mounting Protection degree (EN/IEC 60529): IP00 terminals (IP20 with sealable terminal cover), IP40 housing Option: sealable terminal cover Weight: 1200 grams CONNECTIONS Primary winding: passing bus bar Secondary winding: tightening by nut M4 Connections label: primary winding P1(K) – P2(L) secondary winding s1(k) – s2(l) DIMENSIONS

Additional Information

Manufacturer IME (BTicino)
Product Name / Options Price (ex VAT)
TAMQ50C800 (800/5A) Call for Prices

TAMQ50D100 (1000/5A) Call for Prices

TAMQ50D120 (1200/5A) Call for Prices

TAMQ50D125 (1250/5A) Call for Prices

TAMQ50D150 (1500/5A) Call for Prices

TAMQ50D160 (1600/5A) Call for Prices

TAMQ50D200 (2000/5A) Call for Prices

TAMQ50D250 (2500/5A) Call for Prices

TAMQ50D300 (3000/5A) Call for Prices

TAMQ50D320 (3200/5A) Call for Prices

TAMQ50D400 (4000/5A) Call for Prices

TAMQ10C800 (800/1A) Call for Prices

TAMQ10D100 (1000/1A) Call for Prices

TAMQ10D120 (1200/1A) Call for Prices

TAMQ10D125 (1250/1A) Call for Prices

TAMQ10D150 (1500/1A) Call for Prices

TAMQ10D160 (1600/1A) Call for Prices

TAMQ10D200 (2000/1A) Call for Prices

TAMQ10D250 (2500/1A) Call for Prices

TAMQ10D300 (3000/1A) Call for Prices

TAMQ10D320 (3200/1A) Call for Prices

TAMQ10D400 (4000/1A) Call for Prices
