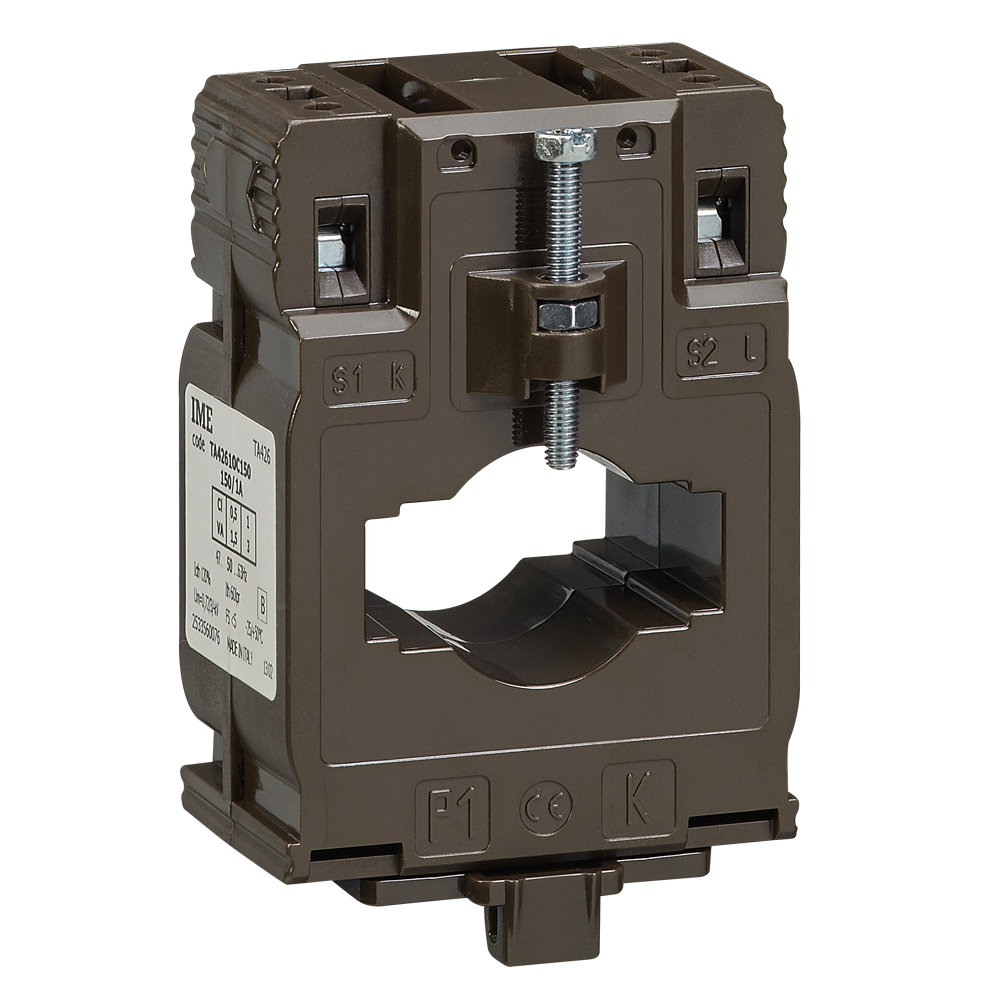

IME TA426 Single Phase Measuring Current Transformer

Features

  • Range 150…800A (1A or 5A Secondary)
  • Busbar window 40.5 x 12.5mm & 32.5 x 10.5mm
  • Cable aperture Ø26mm
  • With fixing feet & DIN rail adaptor
  • Secondary terminals M6 screws and 4.8x0.8mm fast-on
  • Weight 300g
  • Optional sealable terminal cover (ATACOP13)

Details

The TA426 current transformer is supplied with busbar mounting bracket, has a 26mm diameter (40.5 x 12.5mm & 32.5 x 10.5mm) aperture and is available with primary currents from 150 to 800A.

  • Single-phase current transformer
  • Passing cable/ bus bar primary
  • Primary current : 150…800A
  • Secondary current : 1 - 5A
  • Accuracy class : cl. 0,5 - 1

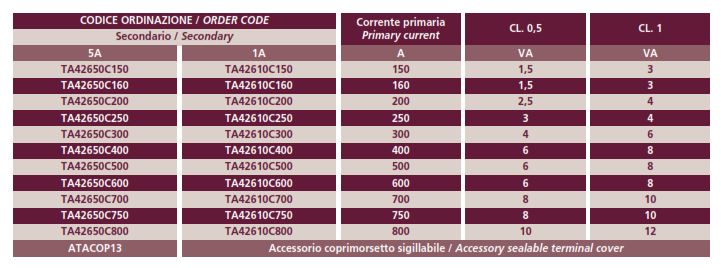

  • Rated burden : 1.5…12VA


HOUSING
  • Housing material : self extinguishing polycarbonate
  • Protection degree (EN60529): IP40 housing - IP20 terminals
  • Option : sealable terminal cover
  • Mounting : snap-on 35mm rail, screw type for wall mounting
  • Rail type : top hat TH35-15 (EN60715)
  • Weight : ≤300g

CONNECTIONS
PRIMARY
  • Passing cable/bus bar primary
  • Fixing on bar: screws, with insulated caps
  • Suggested tightening torque: 0.2Nm
SECONDARY
  • 4 screw terminals (max. cable section 6mm) + 2 fast-ons (4.8 x 0.8)mm
  • Suggested tightening torque : 0,5Nm
  • Suggested tightening Max. : 0.8Nm
  • Connections label: primary winding P1(K) – P2(L), secondary winding s1(k) – s2(l)

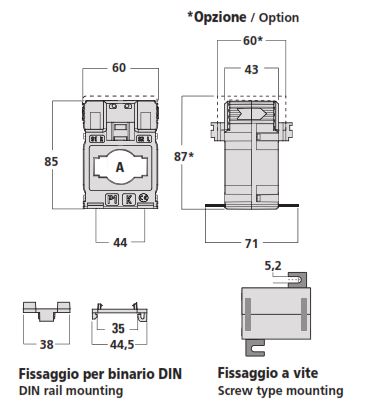

DIMENSIONS

Additional Information

Manufacturer IME (BTicino)
Product Name / Options Price (ex VAT)
TA42650C150 (150/5A) Call for Prices

TA42650C160 (160/5A) Call for Prices

TA42650C200 (200/5A) Call for Prices

TA42650C250 (250/5A) Call for Prices

TA42650C300 (300/5A) Call for Prices

TA42650C400 (400/5A) Call for Prices

TA42650C500 (500/5A) Call for Prices

TA42650C600 (600/5A) Call for Prices

TA42650C700 (700/5A) Call for Prices

TA42650C750 (750/5A) Call for Prices

TA42650C800 (800/5A) Call for Prices

TA42610C150 (150/1A) Call for Prices

TA42610C160 (160/1A) Call for Prices

TA42610C200 (200/1A) Call for Prices

TA42610C250 (250/1A) Call for Prices

TA42610C300 (300/1A) Call for Prices

TA42610C400 (400/1A) Call for Prices

TA42610C500 (500/1A) Call for Prices

TA42610C600 (600/1A) Call for Prices

TA42610C700 (700/1A) Call for Prices

TA42610C750 (750/1A) Call for Prices

TA42610C800 (800/1A) Call for Prices
