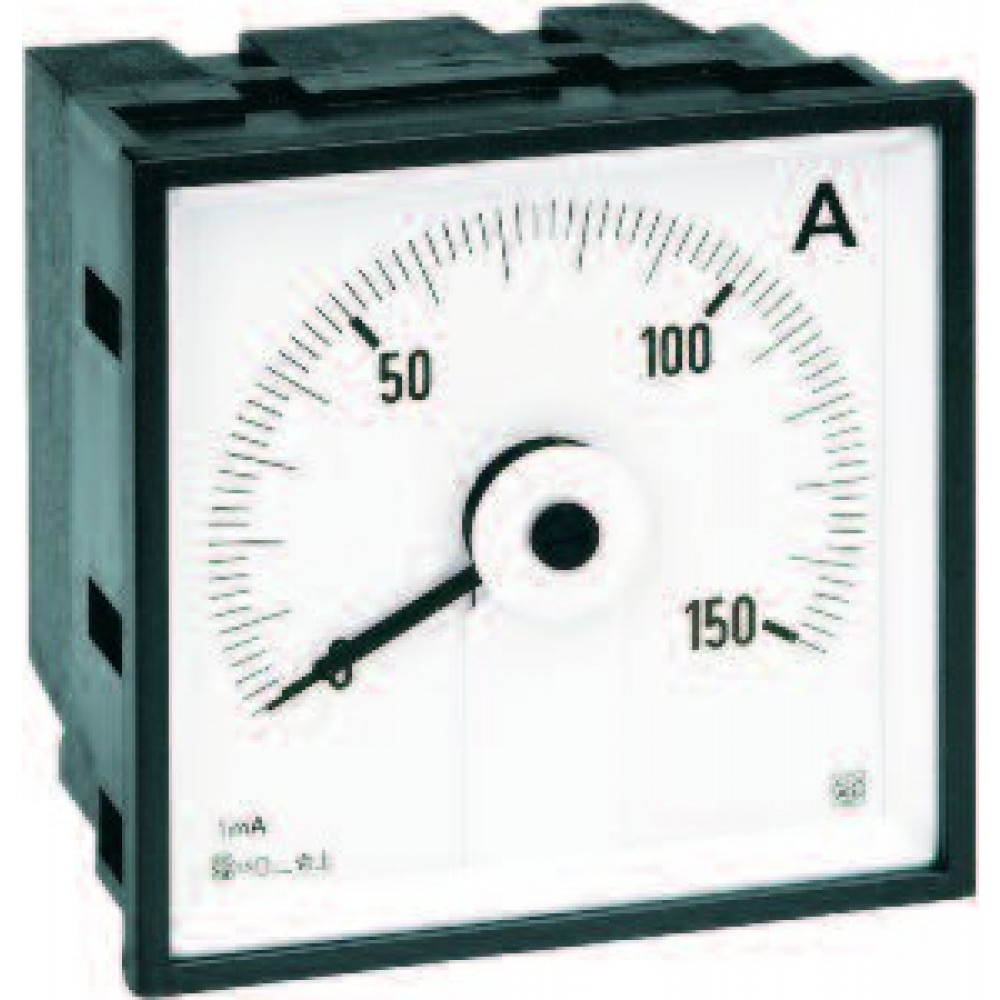

IME AQ72M Single Phase Analogue Ammeter for Direct Current 72x72mm, Scale length 240°

Features

  • Direct indication of input current or primary current of external shunt
  • Indication of any quantity, directly proportional to signals coming from transducers or sensors
  • Moving coil equipment
  • Direct connection 2...5A
  • Connection by external shunt

Details

Direct indication of input current or primary current of external shunt Indication of any quantity, directly proportional to signals coming from transducers or sensors Moving coil equipment Direct connection 2...5A Connection by external shunt 1A/60mV...6000A/60mV Connection by transducers or sensors 1...600mA – 0...5/10/20 – 4...20mA Lateral zero or central zero version Live zero or mechanically suppressed (4...20mA) Scale lenght 240° Accuracy cl.1,5 INPUT Quantity: direct current Connection: direct (S.250/126) or by external shunt (S.250/127) Rating current In Direct connection: 2...5A Connection by external shunt: 1A/60mV...6000A/60mV Connection by transducers or sensors: 1...600mA – 0...5/10/20mA – 4...20mA Continuous overload: 1,2In Instantaneous overload: 10In/5s Accuracy (EN/IEC 60051): cl.1,5 Option: accuracy cl.1 Voltage drop: 60mV (10mA...5A) HOUSING Mounting: flush mounting Panel cutout: see table Front frame: see table Depth: see table Connections: screw terminal / fast-on 6,3 x 0,8mm screw terminal M7 with rating current In ≥ 20A Housing material: self-extinguishing policarbonate Protection degree (EN/IEC 60529): IP52 front frame, IP20 terminals (with protection) Option: protection IP54 front frame

Additional Information

Manufacturer IME (BTicino)
Product Name / Options Price (ex VAT)
Please call our sales office on 01245 428500 or email sales@rayleigh.com to enquire about this product Call for Prices

Add Optional Analogue Instrument Option Extra - Tropicalisation Call for Prices

Add Optional Analogue Instrument Option Extra - IP54 Protection Call for Prices
