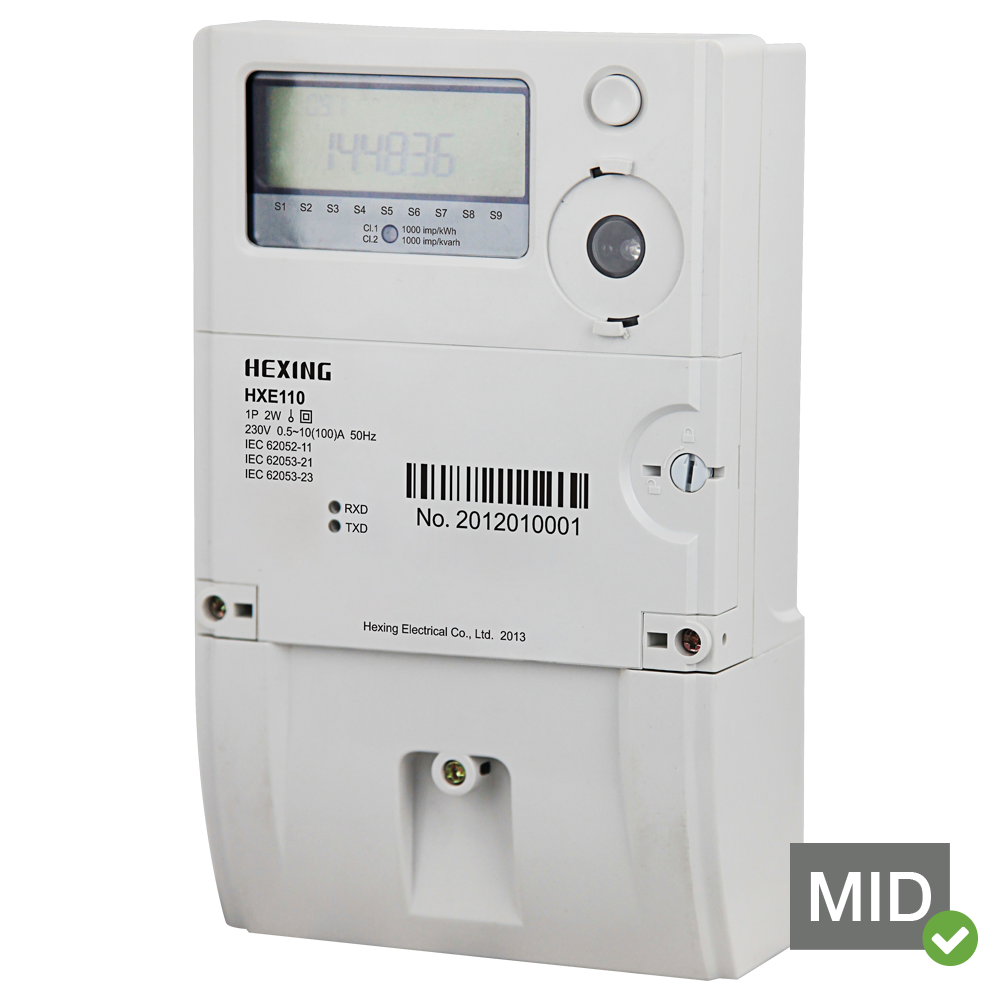

Rayleigh Instruments HXE110 is a smart residential meter with modular design. With plug & play communication module (GPRS/PLC/RF), the meter is designed to keep it working in complex environment by selecting suitable communication module.
Measurement
· Forward and reverse active energy in tariff
· Forward and reverse reactive energy in tariff
· Forward and reverse apparent energy in tariff
· Four quadrant reactive energy in tariffs
· Instantaneous value measurement
Tariff
· Up to 4 tariffs
· up to 8 divisions per day, weekend configurable
· Up to 4 seasons, working days and weekend tariff scheme configurable per season
· Up to 100 holidays configurable individually. Holidays applied with sole tariff or with a holiday tariff scheme
· 8 daily tables
· Standby tariff table available
Tariff
· Up to 4 tariffs
· up to 8 divisions per day, weekend configurable
· Up to 4 seasons, working days and weekend tariff scheme configurable per season
· Up to 100 holidays configurable individually. Holidays applied with sole tariff or with a holiday tariff scheme
· 8 daily tables
· Standby tariff table available
Load profile
· Up to 17 channels
· 3400K bytes available in total
· Average, maximum, minimum value of voltage, current, power, frequency can be recorded
This model has been MID certified to the conform to B+D (ie type examination and quality assurance of the production process) of the MID approval process.
