Elster A1700 GSM/GPRS Telemetry Modem - (UK515-000)

Features

This product is no longer available - click the links below to see our range of MID Certified Meters

MID Certified kWh Energy Meters

MID Certified Multifunction Energy Meters


  • Modem compatible communications data rates up to 9600bps
  • Error correction including V110 (for ISDN/GSM connected Host)
  • Always on GPRS capability as standard
  • Industry standard 25 way D-type socket interface
  • Advanced Super Caps allow no battery operation (Std Product)
  • Flexible power supply of 6V to 14VDC
  • Standby mode with current drain of < 50mW
  • Typical average operating power of < 500mW
  • Plug in compatibility with other Delta Plus and many other modems
  • Local or remote antenna
  • Dimensionally compact and cost effective

Details

This product is no longer available - click the links below to see our range of MID Certified Meters

MID Certified kWh Energy Meters

MID Certified Multifunction Energy Meters

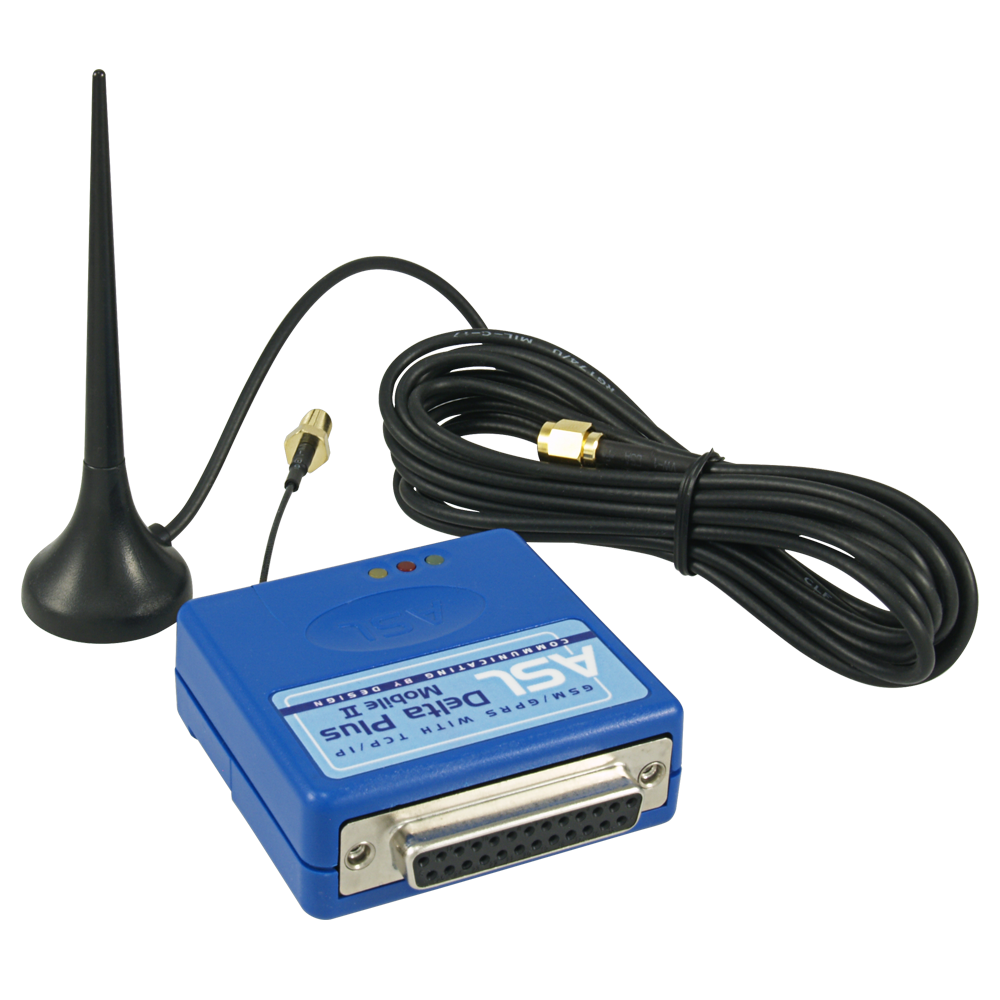

The Delta Plus Mobile II is a new member of ASLH’s well established and proven range of Delta Plus telemetry modems.

The Delta Plus Mobile II allows access to remote data via the public mobile telephone networks. The industry standard data port allows the unit to be connected to equipment in place of a fixed line modem. The flexible input power supply requirements further enhance the ease of use. Whilst the replacement of batteries in consumer GSM phones is reluctantly accepted, it is not economic in many industrial applications due to problems of access and cost. This makes low operating power vital.

The Delta Plus Mobile II has been designed with that requirement paramount. Full power is only used when online. In low power standby mode it will still action commands from the host e.g. to dial or to answer a call. In standby mode, at 6V the Delta Plus Mobile II consumes <50mW rising to a maximum of 0.5W when communicating. This allows the use of advanced Super Cap technology to eliminate the need for batteries and their associated problems.

For maximum compatibility and ease of use the unit has been designed to operate like a normal modem. There is no need to understand additional GSM network specific operations. Even when operating in GPRS mode, once installed, it acts like a leased line modem.

To reduce transmission times, the Delta Plus Mobile II can be used in V110 mode making and receiving calls to and from hosts connected using ISDN or GSM rather than standard telephone modems. A suitable antenna can be fitted to the unit’s flying lead or mounted remotely via an extension cable if required. Installation is further simplified, as the unit is so light that it can be mounted via its 25 way ‘D’ connector. Naturally, the Delta Plus Mobile II includes watchdog and power brown out detection to maximize high reliability of operation. The Delta Plus Mobile II is ideal for use with electronic electricity meters where it is small enough to fit under the terminal cover. Alternately the unit can be used for data logging applications where the low standby current requirements will allow a long battery life.

Additional Information

Manufacturer Elster
Product Name / Options Price (ex VAT)
This product is sold exclusively via our distribution network please contact our Sales Department on 01245 428500 on to find out your nearest stockist or if you are interested in becoming a distributor Call for Prices

Elster A1700 GSM/GPRS Telemetry Modem - (UK515-000) Call for Prices
