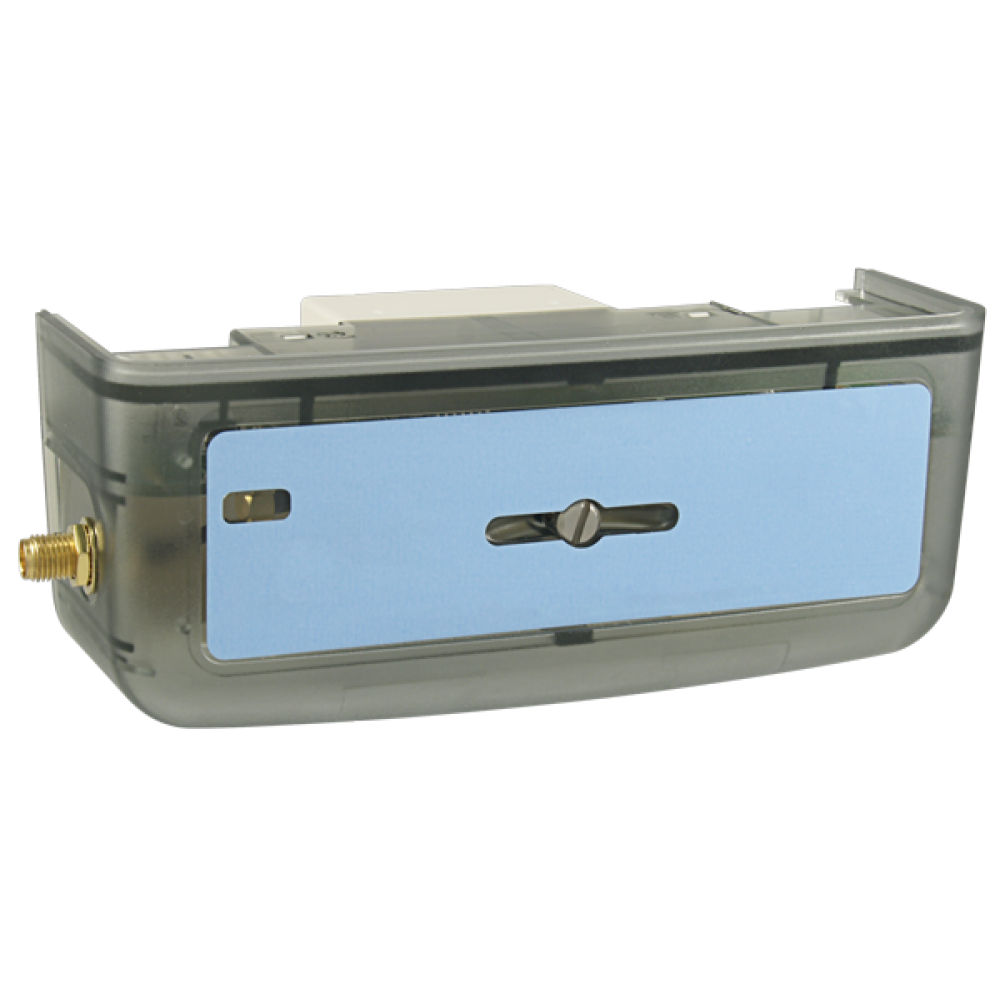

Elster AS230 Single Phase Meter Bespoke CSD/GPRS/SMS - GSM Wireless Modem Including Antenna (UK516-002)

Features

This product is no longer available - click the links below to see our range of MID Certified Meters

MID Certified kWh Energy Meters

MID Certified Multifunction Energy Meters


  • Data rates & standards :- V22 (1200bps), V22bis (2400bps), V32 (9600bps)
  • GPRS Protocol :- Supports TCP/IP stack Class 10, and ASL high efficiency telemetry protocols (ATP)
  • Network compatibility :- Quad band for use on GSM and GPRS (Class B 4+1) networks at 850/900/1800/1900MHz
  • SMS Protocol :- Standard text and PDU modes supported
  • SIM card Secure mounting with external access, push-push style holder
  • Error Correction/Data Compression :- V42, V42bis standards for modem and V110 for ISDN and GSM hosted applications
  • Power supply :- 85 - 265VAC from meter module connector
  • Enclosure :- Custom moulded plastic housing, size - 161x65x36mm
  • Weight :- 90g
  • Connectivity :- Via AS230 module connector
  • Operational :- status LEDs Green, Red & Yellow (see full technical user guide for operational use)
  • Environmental conditions :- -20 to +55°C operating; –20 to +70°C storage. Humidity 0-95% non-condensing
  • Control of functions :- By ‘AT’ compatible command subset
  • Auto dial/answer :- Under ‘AT’ command control. Auto answer with Call Indicate
  • Antenna connector :- Internal PCB antenna as standard
  • Remote configuration:- By the use of Hyper Terminal or any suitable terminal emulation package for access
  • Approvals :- The product conforms to : 3GPP TS 51.010-1, EN60950, R&TTE Directive 99/5/EC,EMC Directive 89/336/EEC & Low Voltage Directive 73/23/EEC
  • Options :- SMA bulkhead connector on 160mm flying lead

Details

This product is no longer available - click the links below to see our range of MID Certified Meters

MID Certified kWh Energy Meters

MID Certified Multifunction Energy Meters


The Elster AS230 bespoke GPRS/GSM/SMS wireless modem is a new member of ASLH’s well established and proven range of Delta Plus telemetry modems designed to complement Elster’s new AS230 low cost smart meter.

The Elster AS230 bespoke GPRS/GSM/SMS wireless modem allows access to remote data via the public mobile telephone networks. For maximum compatibility and ease of use the unit has been designed to operate like a normal modem. There is no need to understand additional GSM network specific operations. Even when operating in GPRS mode, once installed, it acts like a normal IP connection.

To reduce transmission times, the Elster AS230 bespoke GPRS/GSM/SMS wireless modem can be used in V110 mode making and receiving calls to and from hosts connected using ISDN or GSM rather than standard telephone modems. SMS AMR is also supported for NHH metering with programmable host, read interval and remote read requests all supported.

A suitable antenna can be fitted to the unit’s flying lead or mounted remotely via an extension cable if required. Also internal PCB antenna option available. Naturally, the Elster AS230 bespoke GPRS/GSM/SMS wireless modem includes an intelligent watchdog to monitor the state of the wireless modem for instances such as brown out detection to maximise high reliability of operation.

Additional Information

Manufacturer Elster
Product Name / Options Price (ex VAT)
Elster AS230 AM100 CSD/GPRS/SMS - GSM Wireless Modem Including Antenna (UK516-002) Call for Prices

This product is sold exclusively via our distribution network please contact our Sales Department on 01245 428500 on to find out your nearest stockist or if you are interested in becoming a distributor Call for Prices
