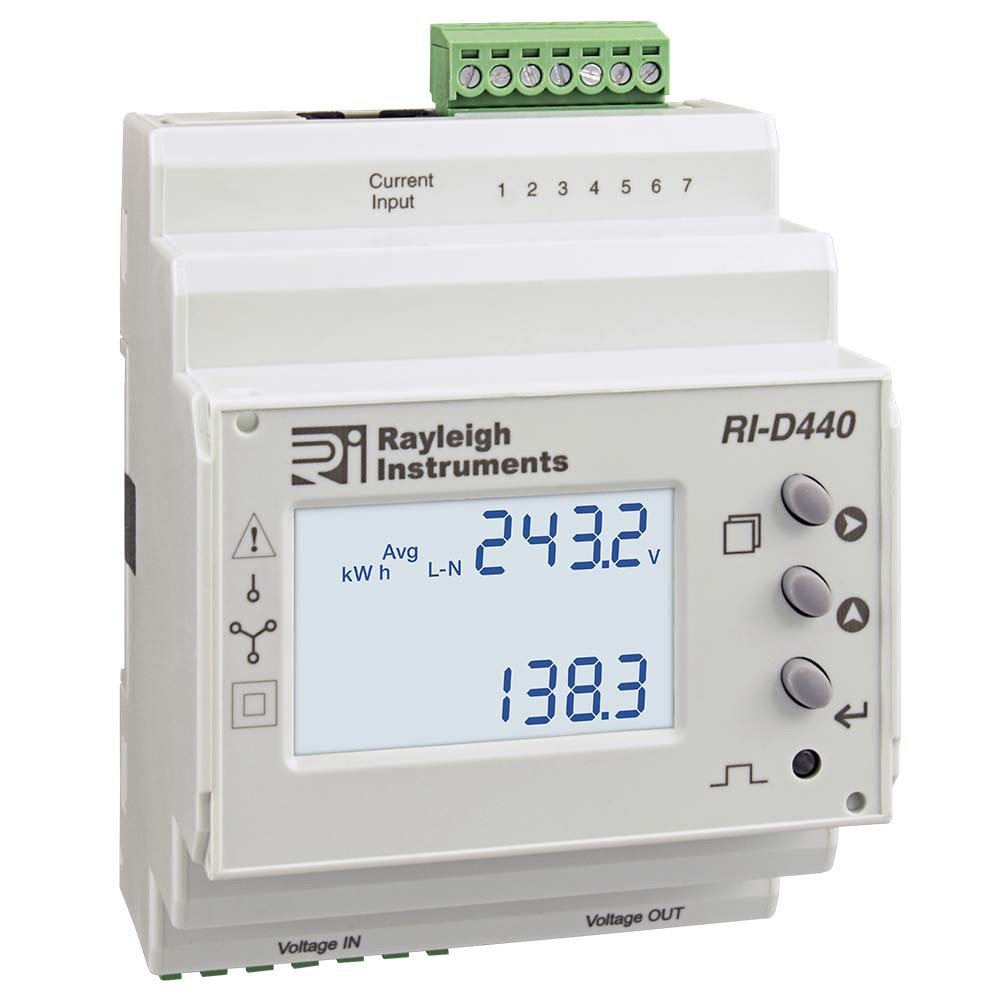

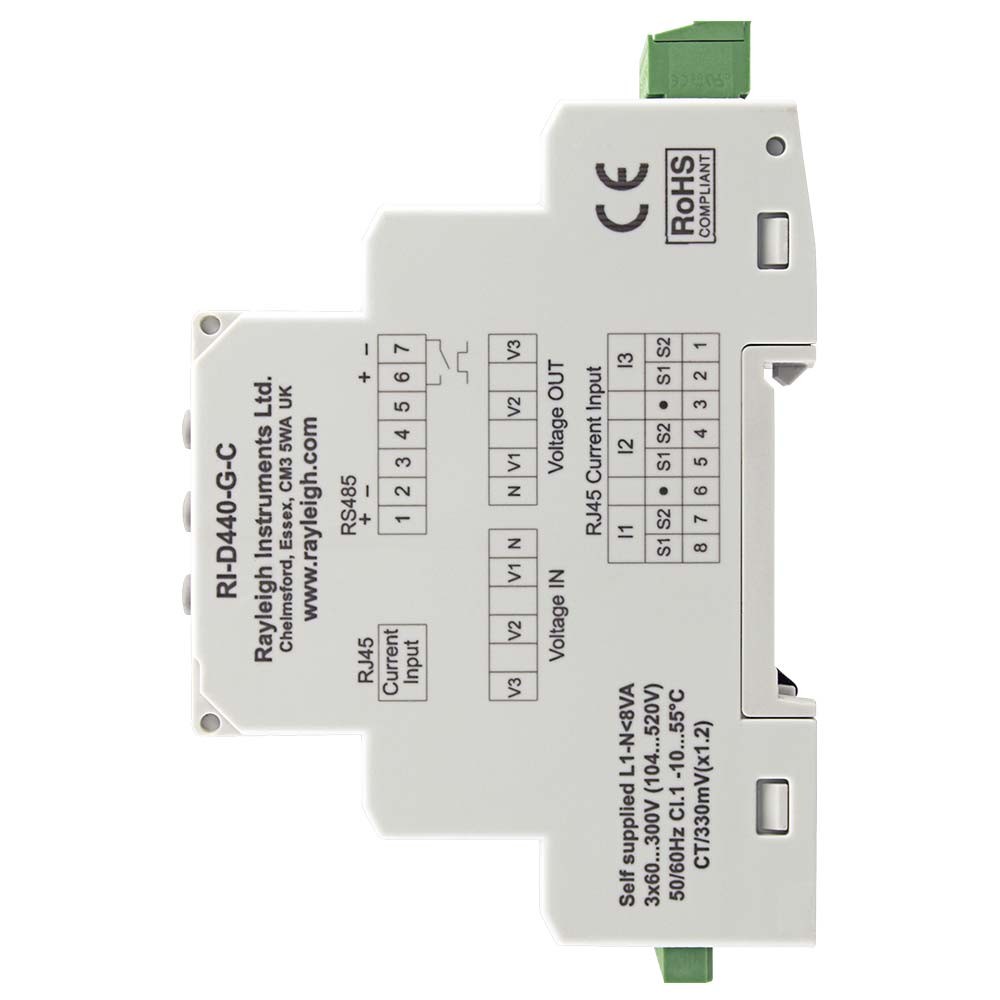

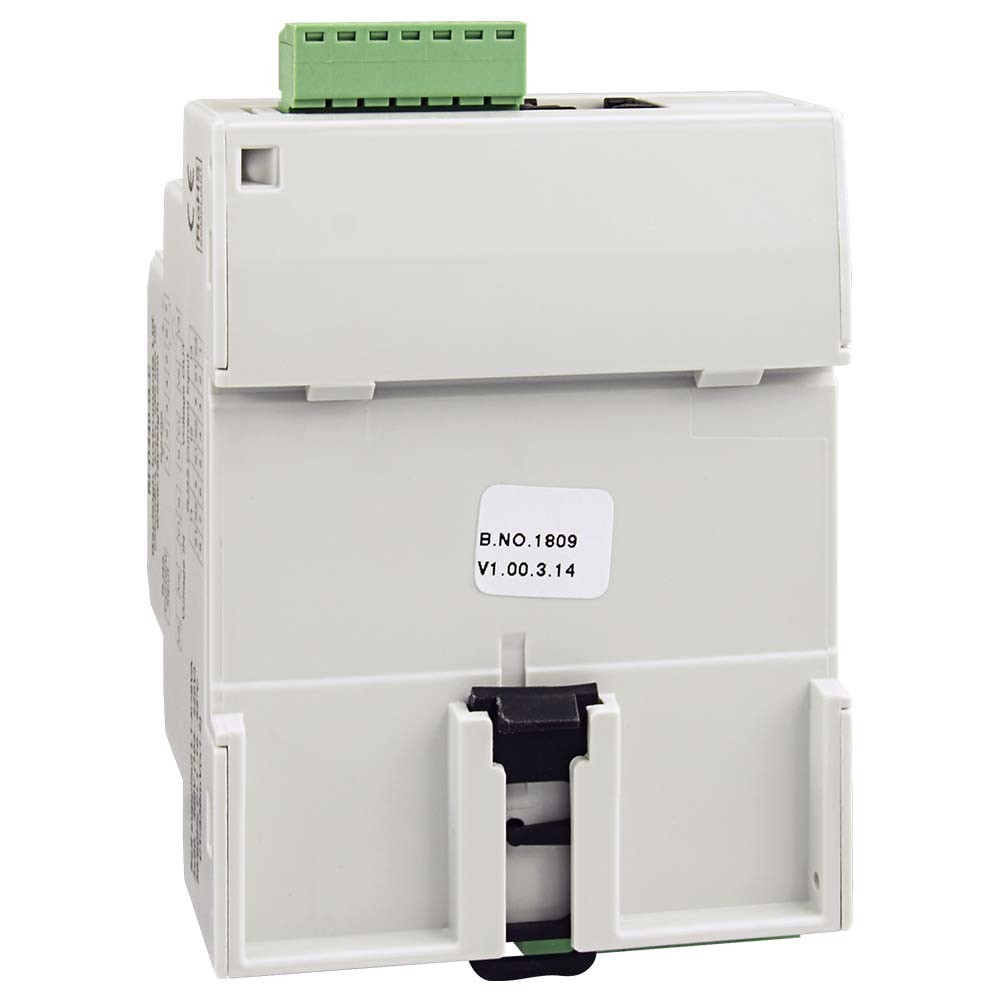

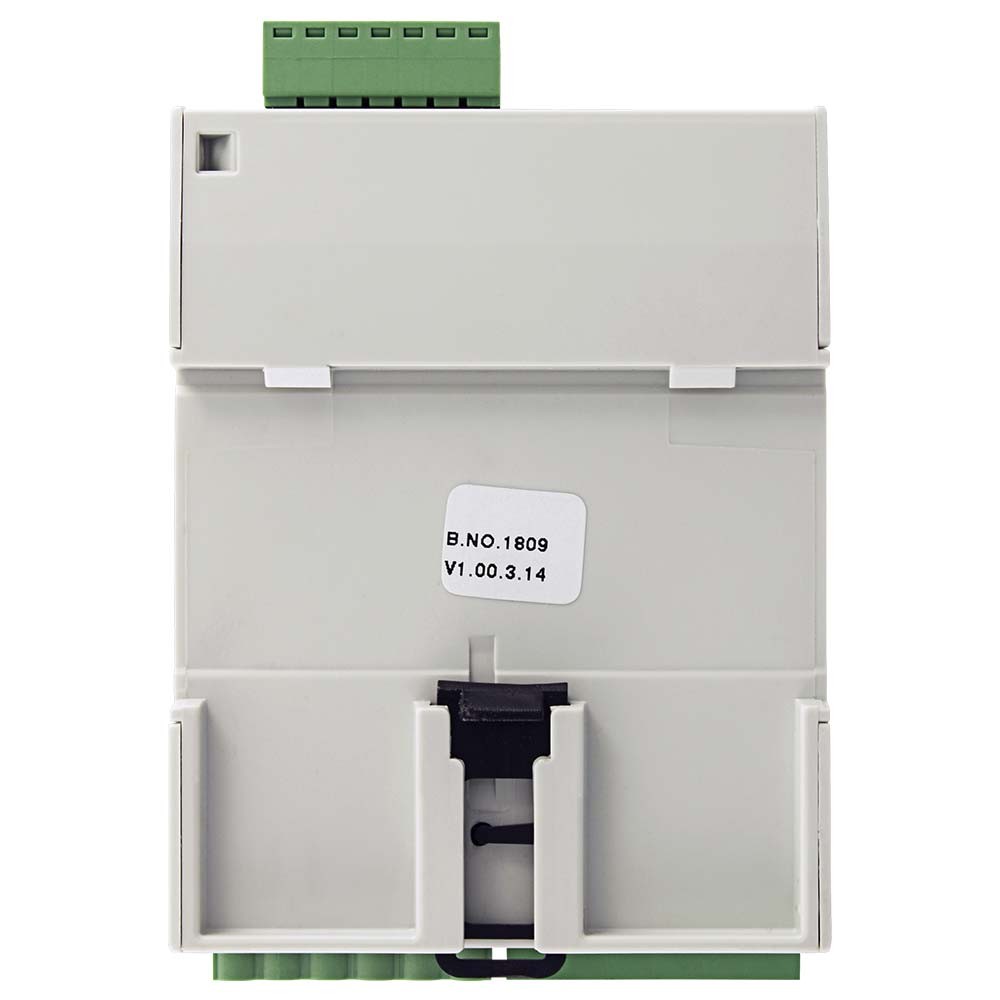

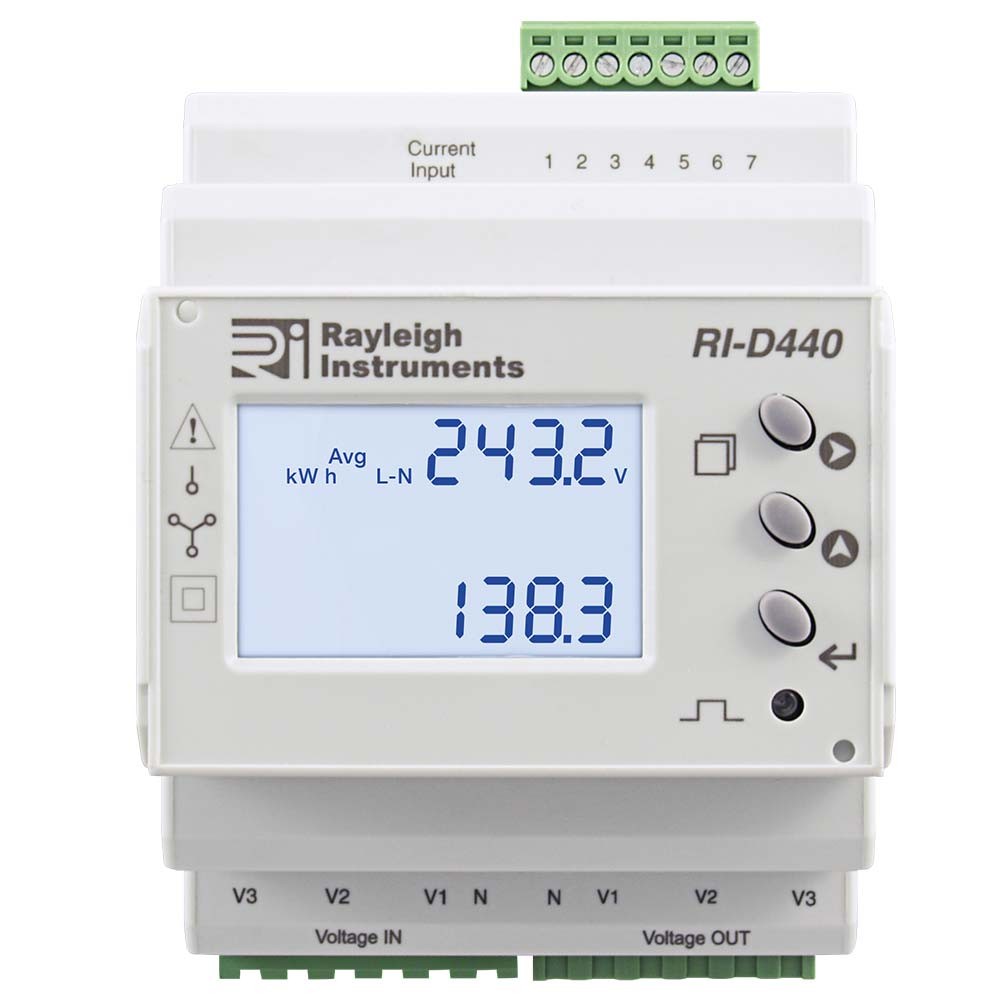

Rayleigh Instruments RI-D440 easywire DIN Rail Mounting Multifunction Meter

Features

  • Four module DIN rail mounted
  • Energy pulse LED
  • 330mV Input from easywire® CTs (or -/1A and -/5A current transformer input with TAS-SCTEWA module)
  • Single phase or three phase network compatible
  • Programmable voltage and current transformer ratio
  • True RMS measurement
  • High definition white backlit LCD display
  • Simple programming and operation
  • Pulse output and Modbus communication
  • Auto or manual page scrolling
  • Voltage OUT connector for daisy chaining up to 32 meters from one supply

Details

The RI-D440 series are part of the easywire® family of meters. Theeasywire® system has been designed to save up to 90% installation time compared to a standard meter and current transformer installation.

They are a range of DIN rail mounted multifunction energy meters. Suitable for monitoring energy consumption and many other electrical parameters in industrial and commercial applications. These meters may be used in single or three phase applications.

A high efficiency white backlit LCD display provides clear indication of measured values in all light conditions. Push-buttons on the front of the meter allow the user access to the display page required.

The meter is available in one version:-
  • With single pulse output and RS485 Modbus communication.
The unit is housed in a compact four module width housing suitable for DIN rail mounting.

Displayed Parameters
  • Voltage - L-L, L-N and average
  • Current - per phase and average
  • Power Factor - per phase and average
  • Frequency
  • Power - Active, Reactive and Apparent (per phase and total)
  • Power Max. demand - Active and apparent power
  • Energy - Active, reactive and apparent (total)

Video

Downloads

Product Name / Options Price (ex VAT)
NEW PRODUCT - Model options will be added soon - Call for Details - 01245 428500 Call for Prices
