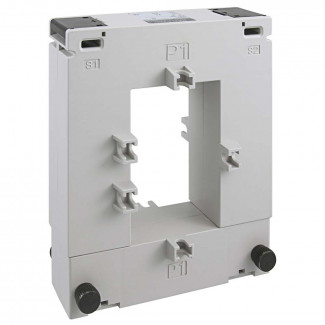

Rayleigh Instruments DBP58 Single Phase Split Core Measuring Current Transformer - 50x80mm

Features

This product is no longer available - see bottom of page for alternative

  • Split Core measuring current transformer
  • Primary Current: 250 to 1000A
  • Secondary Ratios: 5A (1A available upon request)

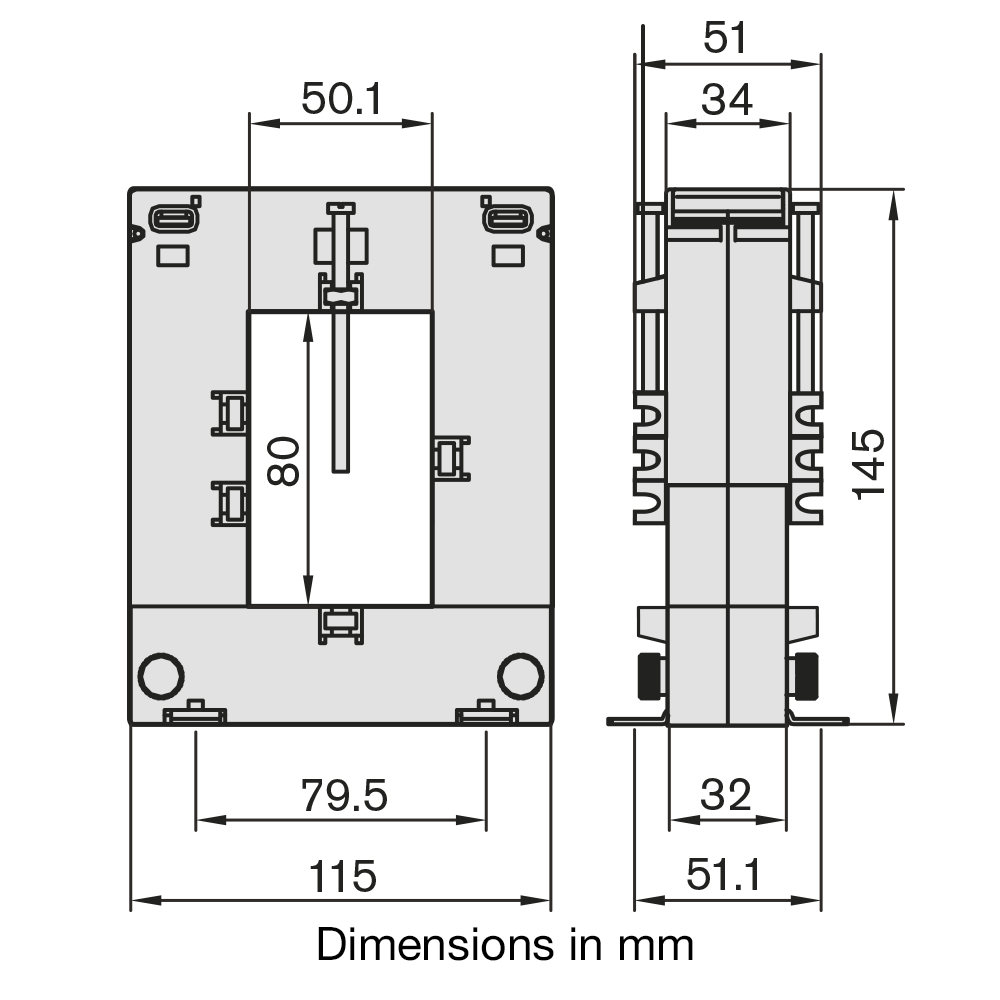

  • Busbar window : 50 x 80mm
  • Accuracy class :- cl.0,5 - 1 - 3
  • Secondary terminals : Dual M4 Screws
  • Built-in Terminal covers
  • Housing Material Self extinguishing Nylon IEC185 classification VO according to UL-94
  • Weight : 0.90Kg

Details

This product is no longer available - see bottom of page for alternative

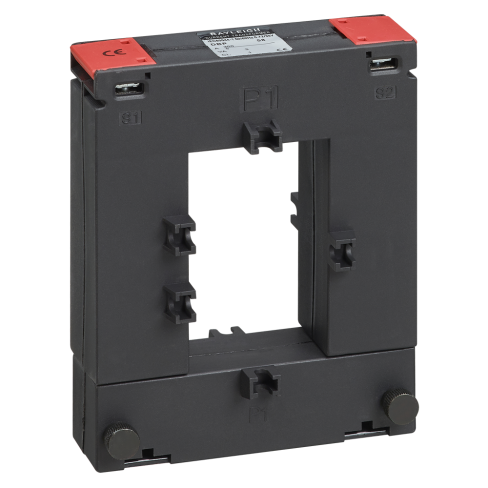

The DBP58 is a split core current transformer designed for installation retro-fit applications such as existing electrical installations where removal of busbars/cable lugs prevent installation of standard current transformers. They are made to the highest standards and come with a 5A secondary. We mainly stock the 5A range but upon request can supply 1A secondary if required. The window aperture is 50x80mm.

Split-core current transformers provide current output that is directly proportional to the input current. These transformers are safely and easily installed over existing electrical power lines without disconnecting lines or interrupting service. Split-core current transformers are an economical means to measure amperage over a broad range of services in a variety of applications. Eight models CTs ranging from 250A to 1000A are available.

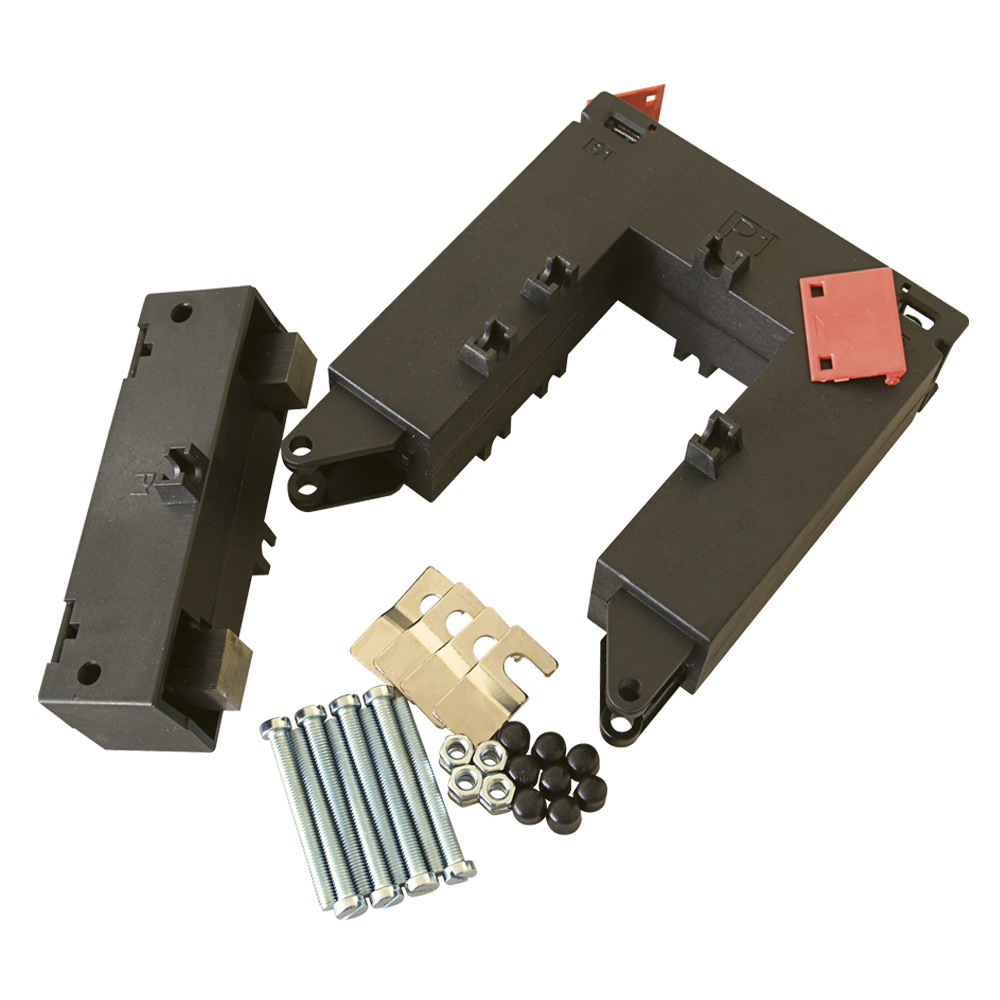

NOTE : All CT's have hinged terminal covers and are supplied with push-in fixing feet and busbar fixing clamps

Additional Information

Manufacturer Rayleigh Instruments
Product Name / Options Price (ex VAT)
DBP58 - Single Phase Split Core CT - 250 / 5A Call for Prices

DBP58 - Single Phase Split Core CT - 300 / 5A Call for Prices

DBP58 - Single Phase Split Core CT - 400 / 5A Call for Prices

DBP58 - Single Phase Split Core CT - 500 / 5A Call for Prices

DBP58 - Single Phase Split Core CT - 600 / 5A Call for Prices

DBP58 - Single Phase Split Core CT - 800 / 5A Call for Prices

DBP58 - Single Phase Split Core CT - 1000 / 5A Call for Prices
