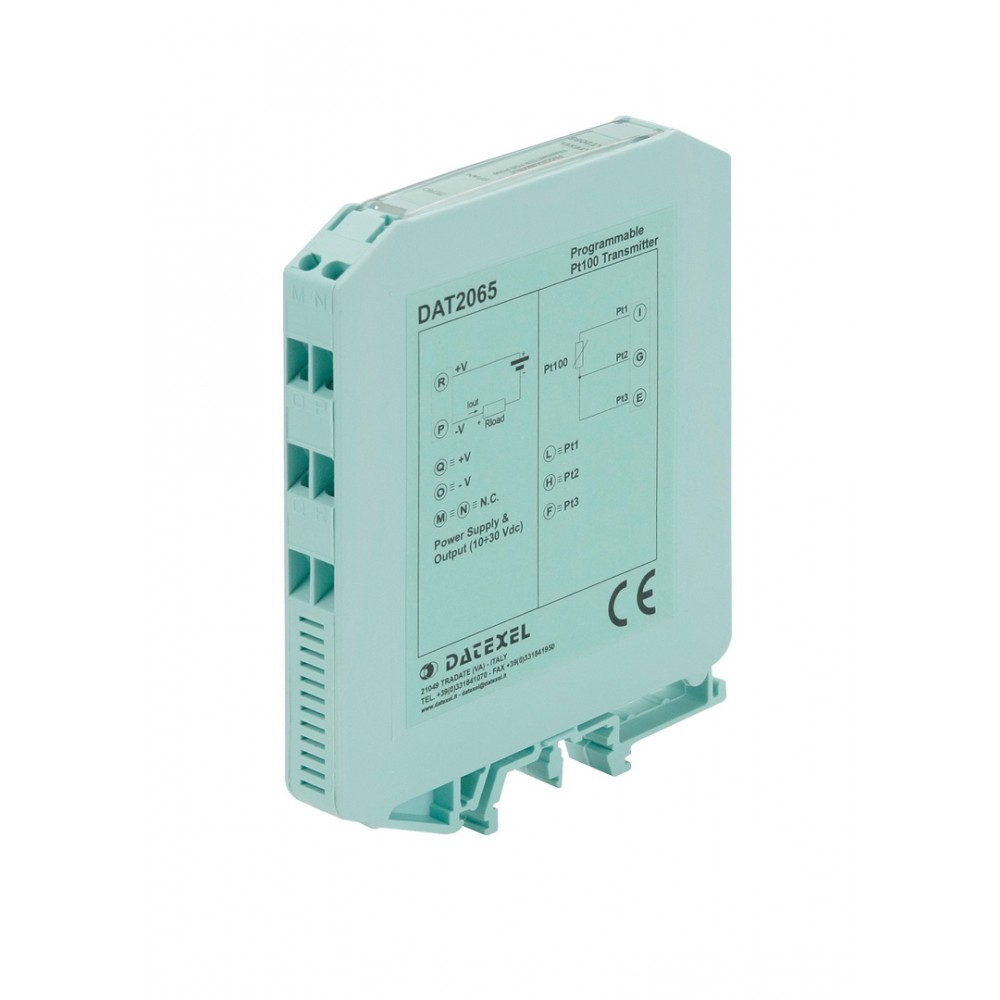

Datexel DAT 2065 Dip Switch Programmable Transmitter for Pt100

Features

  • Input for RTD type Pt100
  • Unit of measure configurable in °C or °F
  • Zero and Span values configurable by DIP-switches
  • 4 to 20 mA linearised output on current loop
  • Good accuracy and performance stability
  • EMC compliant – CE mark
  • DIN rail mounting in compliance with EN-50022 and EN-50035

Details

Not insulated dip switch configurable din rail transmitter. Input Pt100 2,3 wires. Power supply 10...30Vdc (loop powered). Reverse polarity protection 60Vdc Max. Output 4...20mA.

The transmitter DAT 2065 is designed to provide on its output a linearised 4÷20 mA current loop signal proportional with the temperature characteristic of the Pt100 sensor connected on its input. It is possible to connect on the input both 3 wires and 2 wires Pt100. The user can program the input range by the proper DIP-switch available after opening the suitable door located on the side of device (see “Input range table” section).

The regulation of Zero and Span values is made by the ZERO and SPAN potentiometers located on the top of device. It has been made in compliance with the Directive 2004/108/EC on the Electromagnetic Compatibility. It is housed in a plastic enclosure of 12.5 mm thickness suitable for DIN rail mounting in according to EN-50022 and EN-50035 standards .

Additional Information

Manufacturer Datexel
Product Name / Options Price (ex VAT)
Datexel DAT 2065 Dip Switch Configurable Din Rail Transmitter. Power supply 10...30Vdc (loop powered). Reverse polarity protection 60Vdc max. Output 4...20mA. Call for Prices
