easywire Three Phase Current Transformer - RI-CT249-EW

Features

  • Patented technology
  • Foot, busbar or DIN rail mounting
  • RJ45 connector output
  • Safe to leave transformer on load with output disconnected
  • Fits standard moulded circuit breaker frame sizes
  • From 60A to 160A Primary current input available
  • 330mV output
  • Sealable RJ45 connection
  • 90mm width

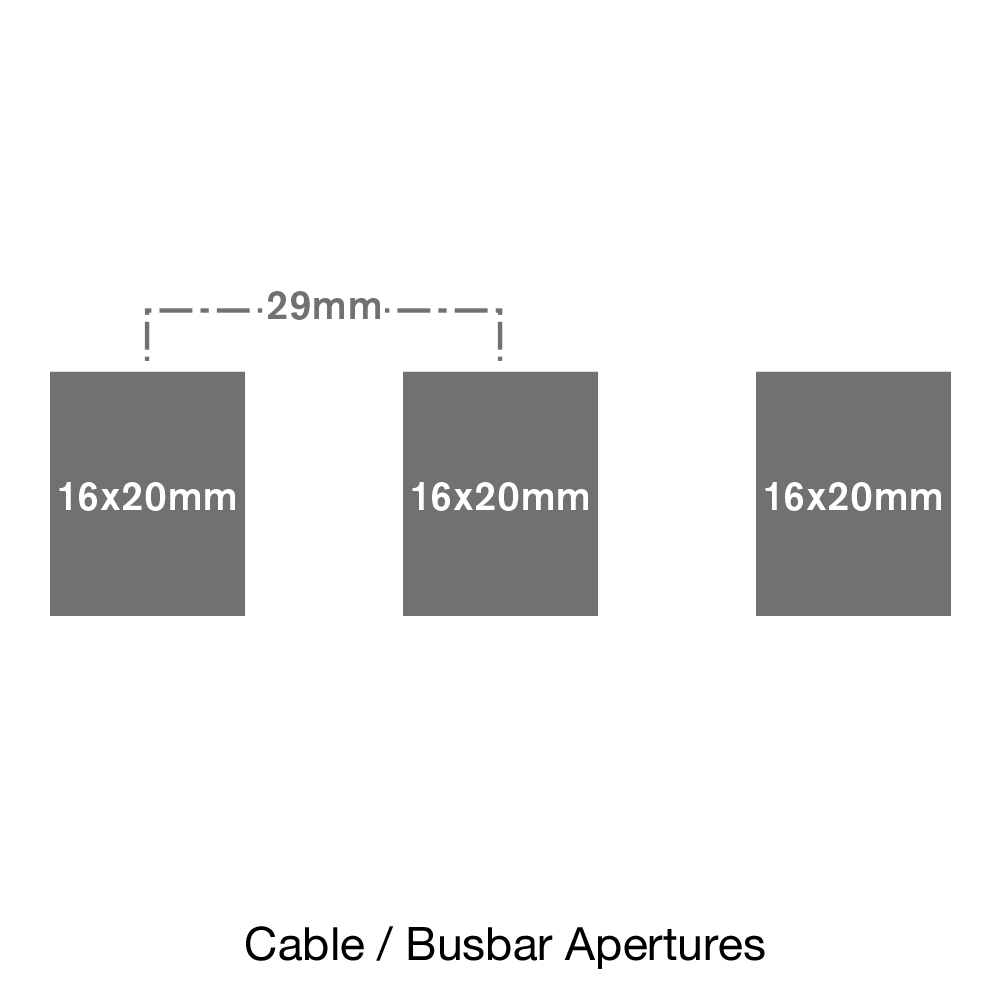

  • 29mm bar centres
  • 20 x 16mm apertures
  • Accuracy Class 1

Details

The RI-CT249-EW is part of the easywire® family of current transformers and is one of five frame sizes available.

The easywire® system has been designed to save up to 90% installation time compared to a standard current transformer to meter installation.

This three phase current transformer is suitable for monitoring current in industrial and commercial applications and is designed to connect to the easywire® series of metering products.

Built-in limiting circuitry ensures the secondary of the current transformer is always under load and clamped to a safe level. This means that the output connection may be safely disconnected while under load.

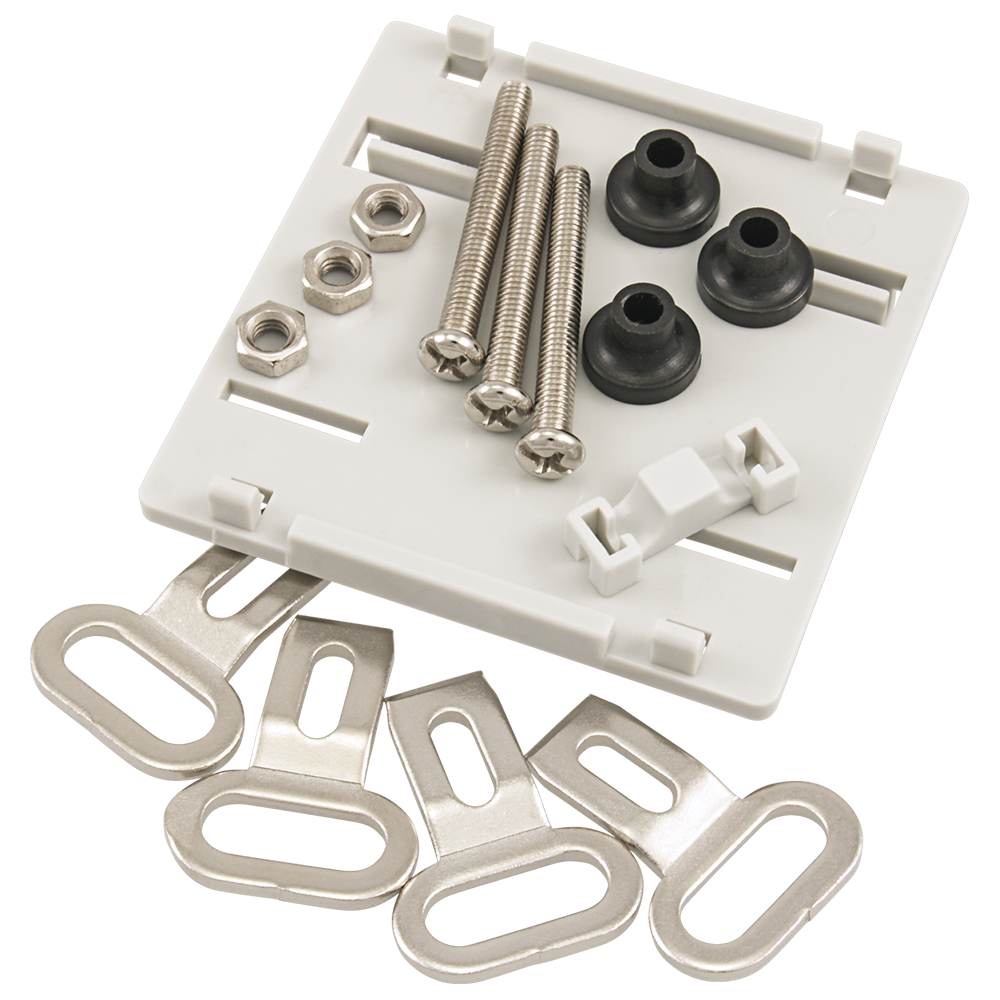

Improved design features of these easywire® current transformers include a robust ‘snap-on’ DIN rail fixing, captive busbar location screw fittings, insulated busbar location feet, sealable (anti-tamper) RJ45 connection sockets and moulded load direction indication arrows on the CT shoulders.

The RI-CT249-EW is available in 5 models with Primary Current : 60A, 100A, 125A, 150A and 160A.
(All models have easywire® (RJ45) 330mV Output).

Read more about - easywire®

Additional Information

Manufacturer Rayleigh Instruments
